Summary of Contents for Bartscher 700118V1

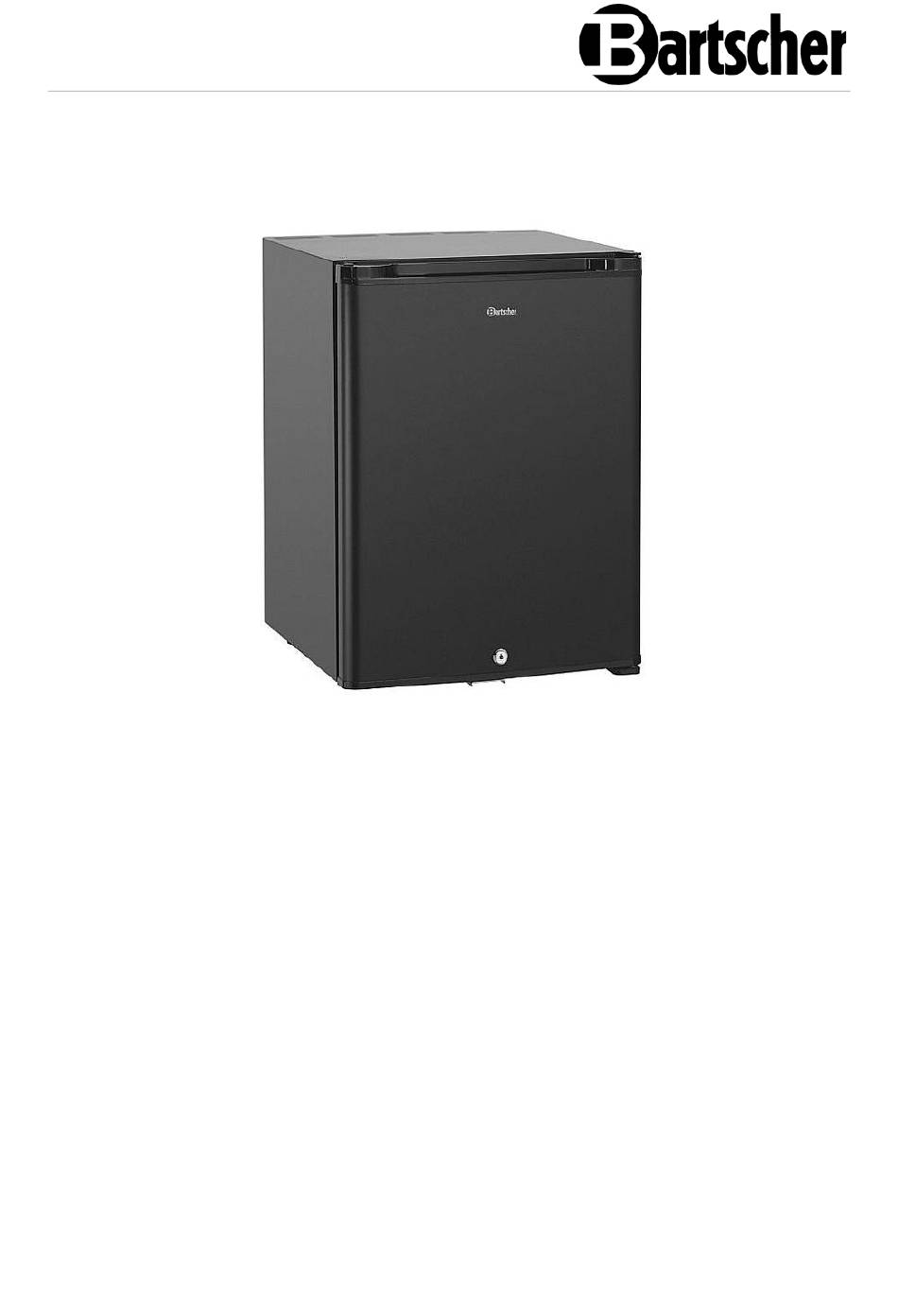

- Page 1 700118V1...
- Page 2 Bartscher GmbH Phone: +49 5258 971-0 Franz-Kleine-Str. 28 Fax: +49 5258 971-120 D-33154 Salzkotten Technical Support Hotline: +49 5258 971-197 Germany www.bartscher.com Version: 1.0 Date of preparation: 2024-06-17...
-
Page 3: Table Of Contents
List of Components of the Appliance ............. 11 Installation and operation ................12 Installation ....................12 Operation ....................18 Cleaning and Maintenance ................19 Safety Instructions for Cleaning ............. 19 Cleaning ....................19 Maintenance ..................20 Possible Malfunctions .................. 20 Disposal ....................... 22 700118V1 1 / 22... -
Page 4: Safety
You must strictly follow the instructions, to prevent accidents, personal injuries and property damages. DANGER! The signal word DANGER warns against hazards that lead to severe injuries or death if the hazards are not avoided. 2 / 22 700118V1... -
Page 5: Safety Instructions
Do not transport the appliance, holding it by the power cord. • Do not allow the power cord to come into contact with heat sources or sharp edges. • Do not bend, pinch nor knot the power cord. 700118V1 3 / 22... - Page 6 (candles or heaters) nor with any other means. Vapour produced may cause short-circuit and too high temperatures may damage the appliance. • All ventilation slots should not be obstructed during operation. • Never attempt to damage cooling installation of the appliance. 4 / 22 700118V1...
- Page 7 • Do not introduce any changes in the appliance nor modify it. • Do not drill hole in the appliance nor install any objects on it. • Do not place any heavy objects on the appliance. 700118V1 5 / 22...
-
Page 8: Intended Use
– Storing flammable or explosive objects and liquids, such as ether, petroleum or adhesives; – Storing explosive materials, like sprays filled with flammable propellants; – Storing pharmaceutical products or preserved blood; – Storing live pets. 6 / 22 700118V1... -
Page 9: General Information
Declaration of Conformity The appliance meets the currently applicable standards and guidelines of the European Union. We confirm the above in the EC Declaration of Conformity. We may provide relevant Declaration of Conformity upon request. 700118V1 7 / 22... -
Page 10: Transport, Packaging And Storage
– in a location protected against mechanical shocks. In the case of extended storage (over three months), make sure you check the condition of the packaging and the parts regularly. If needed, replace the packaging with a new one. 8 / 22 700118V1... -
Page 11: Technical Data
Technical Data Technical Data Technical Specifications Name: Mini bar 34L 700118V1 Art. no.: Material: Steel, painted Inner material: Plastic ABS Volume, in l: Temperature range, min.–max., in °C: 5 - 12 Ambient temperature, min.–max., in °C: 16 - 32 Amount of coolant, in kg:... -
Page 12: Functions Of The Appliance
Regulation (EU) 2019/2016, in our product data base at https://energy-label.ec.europa.eu/. Enter article number for a given model. Functions of the Appliance The appliance is designed for cooling and storage of suitable beverages, snacks or fruit. 10 / 22 700118V1... -
Page 13: List Of Components Of The Appliance
Delivery without the contents! 1. Temperature controller 2. LED lighting 3. Ventilation openings 4. Door seal 5. Door 6. Door rack (2 pcs) 7. Shelf guides 8. Lock 9. Lower baseplate 10. Shelves (2x) 11. Housing 700118V1 11 / 22... -
Page 14: Installation And Operation
Leave at least 2 cm clearance from flammable walls and items. • If the appliance is built in a cabinet, leave at least 2 cm clearance from rear wall, and 5 cm from top and bottom. The bottom clearance may be set with the height-adjustable feet. 12 / 22 700118V1... - Page 15 Installation and operation Installation of Door Fitting Set The appliance is provided with the furniture fitting set. The fitting set is part of the delivery. Proceed observing the figures below. 700118V1 13 / 22...
- Page 16 The hinges may be changed from right to left, as needed. Observe the following indications. 1. Remove the right-hand side top screws and their covers. 2. Pull the door out and remove the hinge out of the door. 14 / 22 700118V1...
- Page 17 Installation and operation 3. Lay down the refrigerator. 4. Remove the right-hand side bottom hinge. 5. Fix the removed hinge at the left-hand side. 700118V1 15 / 22...
- Page 18 Installation and operation 6. Fix the hinge with screws. 7. Remove the left-hand side top screws and their covers. 8. Place the door on the hinge. 16 / 22 700118V1...
- Page 19 Installation and operation 9. Fix the left hinge on the door. 10. Fit the hinge and fix it with screws. To end with, fit the cover. 700118V1 17 / 22...
-
Page 20: Operation
1. Prior to first operation, clean the appliance and its equipment according to instructions in section 6 "Cleaning". 2. To end with, dry the appliance and accessories thoroughly. 3. Introduce the shelves into the appliance at the selected height. 4. Fix the racks in the door. 18 / 22 700118V1... -
Page 21: Cleaning And Maintenance
6. Wipe the internal and external surfaces of the appliance with a soft, damp cloth. Use mild cleaning agent if required. 7. To end with, wipe the cleaned surfaces with a cloth moistened in clean water. 700118V1 19 / 22... -
Page 22: Maintenance
Electric power supply safety Check the fuse, connect the fuse damaged. appliance to another socket. No power supply. Check electric power supply. Damaged socket. Plug the appliance into another socket. 20 / 22 700118V1... - Page 23 Spare parts for the purpose of repairing this appliance, as stipulated in Annex II to the REGULATION (EU) 2019/2016, are available for at least eight years, counted from the date of introduction of the last appliance of this model to market. 700118V1 21 / 22...
-
Page 24: Disposal
Electrical appliances should be returned to designated collection points. Coolant The propellant used in the appliance is flammable. It should be utilised pursuant to national regulations in force. 22 / 22 700118V1...
