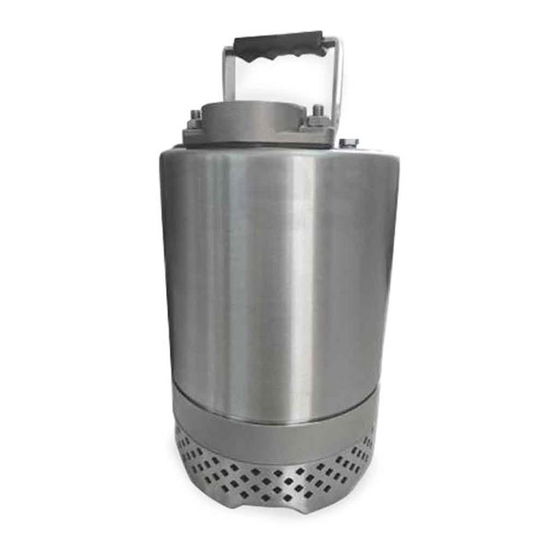

- Page 1 Installation, Operation & Maintenance Manual Submersible Stainless Steel Dewatering Pumps KLEIN series 0.5, 1 & 2 HP @ 3450 RPM barmesa.com IMPORTANT! - Read all instructions in this manual before operating or servicing a pump. Last update: 01/25/2022...
-
Page 2: General Safety Information
Model Number, Serial, Amps, i n t e n d e d f o r u s e i n Voltage, Phase and HP from pump IMPORTANT! - Barmesa Pumps is not swimming pools or water name plate for the future reference. -
Page 3: Specifications
Specifications DISCHARGE: 2" (5.08 cm) NPT female, vertical, bolt on flange. Lost-wax casting 304 AISI stainless steel. LIQUID TEMPERATURE: 104 °F (40 °C) . PUMP CASING: 304 AISI stainless steel. MOTOR HOUSING: 304 AISI stainless steel. OIL CHAMBER: 304 AISI stainless steel. IMPELLER: 8 vane, semi-open. -
Page 4: Dimensional Drawings
Dimensional drawings 40.5 - 1 HP ØA L.W.L. 42 HP barmesa.com ØA H1 L.W.L. WEIGHT (lb) 2.05 4.13 3.35 2" 13.58 2.05 2.05 4.13 3.35 2" 14.57 2.05 8.86 2.05 4.13 3.35 2" 17.91 3.19 17.17 * Weight without cord. - Dimensions in inches. -
Page 5: Safety Terminology And Symbols
1. Introduction Purpose of this manual The purpose of this manual is to provide necessary information for: Ÿ Installation Ÿ Operation Ÿ Maintenance CAUTION Read this manual carefully before installing and using the product. Improper use of the product can cause personal injury and damage to property, and may void the warranty. -
Page 6: Product Warranty
1.2 Product warranty Coverage BARMESA undertakes to remedy the following faults in products sold by the manufacturer under the following conditions: Ÿ The faults are due to defects in design, materials or workmanship. Ÿ The faults are reported to the manufacturer representative within the warranty period. Ÿ... - Page 7 1.3 Safety WARNING Ÿ The operator must be aware of safety precautions to prevent physical injury. Ÿ Any pressure-containing device can explode, rupture or discharge its contents if it is over-pressurized. Take all necessary measures to avoid over-pressurization. Ÿ Operating, installing or maintaining the unit in any way that is not covered in this manual could cause death, serious personal injury, or damage to the equipment.
-
Page 8: Prior To Operation
Waste and emissions regulations Observe these safety regulations regarding waste and emissions: Ÿ Dispose appropriately of all waste. Ÿ Handle and dispose of the processed liquid in compliance with applicable environmental regulations. Ÿ Clean up all spills in accordance with safety and environmental procedures. Ÿ... - Page 9 3.2 Installation WARNING Under no circumstances should cable be pulled while the pump is being transported or installed. Attach a chain or rope to the grip and install the pump. This pump must not be installed on its side or operated a dry condition. Ensure that it is installed upright on a secure base.
-
Page 10: Electrical Wiring
4. Electrical wiring WARNING Ÿ Electrical shock hazard. Check that the cable and cable entry have not been damaged during transport before installing the pump. Ÿ Never let the end of the cable touch water. Ÿ Use short circuit breakers to prevent danger of electrical shock. Ÿ... - Page 11 Electric circuit diagrams Figure 3 Single phase (non-automatic) Black (Brown) Thermal protector White (Blue) Green (Yellow/ Green) Frame grounding Ground (Green/Yellow) Figure 4 Single phase (automatic) Float switch Black barmesa.com (Brown) Thermal protector White (Blue) Green (Yellow/ Green) (Green/Yellow) Frame grounding Ground (Green/Yellow) Figure 5...
-
Page 12: Operation
5. Operation 5.1 Before starting the pump 1. After completing installation, measure the insulation resistance again as described in Installation section. 2. If the pump is operated continuously for an extended period of time in a dry condition or at the lowest water level, the motor protector will be activated. -
Page 13: Disassembly And Reassembly Procedure
7. Disassembly and reassembly procedure DANGER Disconnect and lock out electrical power before installing or servicing the unit. WARNING A worn impeller and/or pump housing can have very sharp edges. Wear protective gloves. CAUTION Make sure to perform a trial operation when starting the pump after a reassembly. If the pump was assembled improperly, it may lead to abnormal operation, electrical shock or water damage. - Page 14 40.5 - 1 HP 19-6 19-10 31-2 31-2 19-10 19-1 19-1 18-1 19-7 19-2 18-2 barmesa.com 15-1 15-2 ITEM NAME MATERIAL GASKET EPDM 18‐1 GASKET EPDM 18‐2 GASKET EPDM SCREW AISI 304 17-1 19‐1 SCREW AISI 304 19‐2 SCREW AISI 304 19-3 17-2 19‐3...
- Page 15 40.5 - 1 HP ITEM NAME MATERIAL PHOTO ITEM NAME MATERIAL PHOTO H07RN‐F/ CABLE SJTOW/ PUMP CASING AISI 304 STOW AISI 304 PROTECTOR HANDLE KLIXON (1 PHASE) PROTECTOR MOTOR COVER AISI 304 KLIXON (3 PHASE) BRACKET EN-GJL-200 CAPACITOR MOTOR HOUSING 15-1 AISI 304 BEARINGS...
- Page 16 42 HP 19-1 31-2 19-6 19-10 19-10 31-2 30-1 19-1 18-1 19-7 19-2 18-2 barmesa.com 15-1 15-2 ITEM NAME MATERIAL 18‐1 GASKET EPDM 18‐2 GASKET EPDM SCREW AISI 304 17-1 19‐1 SCREW AISI 304 19-3 19‐2 SCREW AISI 304 19‐3 SCREW AISI 304 17-2...
- Page 17 42 HP ITEM NAME MATERIAL PHOTO ITEM NAME MATERIAL PHOTO H07RN‐F/ CABLE SJTOW/ PUMP CASING AISI 304 STOW PROTECTOR HANDLE AISI 304 KLIXON (1 PHASE) PROTECTOR MOTOR COVER AISI 304 KLIXON (3 PHASE) BRACKET EN-GJL-200 CAPACITOR MOTOR HOUSING 15-1 AISI 304 BEARINGS 15-2 STATOR...
-
Page 18: Troubleshooting
(4)Strainer is closed too far (4) Open strainer NOTE: Barmesa Pumps assumes no responsibility for damage or injury due to disassembly in the field. Disassembly of the pumps or supplied accessories other than at Barmesa Pumps or its authorized service centers, automatically voids warranty. - Page 19 barmesa.com...
