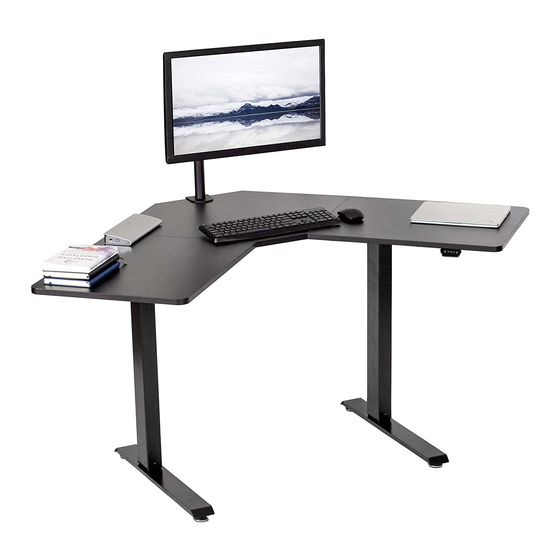

Black 47" x 47" Corner Electric Desk
Instruction Manual
SKU: DESK-E1L94B
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/desk-e1l94b
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DESK-E1L94B and is the answer not in the manual?

Questions and answers

Related Manuals for Vivo DESK-E1L94B

Summary of Contents for Vivo DESK-E1L94B

  • Page 1 Black 47" x 47" Corner Electric Desk Instruction Manual SKU: DESK-E1L94B Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/desk-e1l94b GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com...
  • Page 2 WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury.
  • Page 3 TOOLS DO NOT EXCEED WEIGHT CAPACITY. 176lbs NEEDED Failure to do so may result in serious injury. (80kg) Phillips Drill Screwdriver ASSEMBLY STEPS STEP 1 Place Desktop Panel Set(A) upside down on a flat surface, then assemble using Connector Plates (B) with M5x16 Screws (S-A) and a Phillips screwdriver.
  • Page 4 STEP 3 Insert Anti-Vibration Pads (S-G) into the desktop mounting holes in the support bar assembly. STEP 4 Place the support bar assembly upside down on Desktop Panel Set (A), and secure these using M5x16 Screws (S-A) with a Phillips screwdriver.
  • Page 5 STEP 5 Mount Leg With Motor (F) and Leg (G) to the support bar assembly using M8x16 Screws (S-C) and tighten with 5mm Allen Wrench (T-A). STEP 6 Install Feet (H) on the legs as shown using M6x35 Screws (S-D) and 5mm Allen Wrench (T-A). Screw Foot Pads (I) into Feet (H).
  • Page 6 STEP 7 Insert Sync Rod (K) into Leg (G). Loosen the nut on Sync Rod (K), then extend the rod onto Leg With Motor (F) and tighten the nut. Tighten the set screw on the end of Sync Rod (K) using the 2mm Allen Wrench (T-B).
  • Page 7 STEP 9 Carefully turn the desk right side up and connect the AC Adapter (M) to a wall outlet. If necessary, adjust foot pads (I) to level the desk. The desk is now ready for use. Please refer to the Controller User Guide for operating instructions. CAUTION! Do not exceed desk Keep area of vertical...
