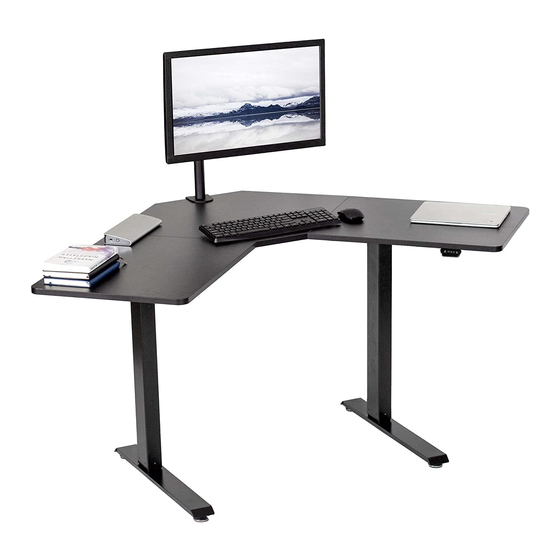

Black Corner Electric Desk
Instruction Manual
SKU: DESK-E1L94B
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/desk-e1l94b
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Vivo DESK-E1L94B
Summary of Contents for Vivo DESK-E1L94B
- Page 1 Black Corner Electric Desk Instruction Manual SKU: DESK-E1L94B Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/desk-e1l94b GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com...
- Page 2 WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury.
- Page 3 TOOLS NEEDED Drill Phillips Screwdriver DO NOT EXCEED WEIGHT CAPACITY. 176lbs Failure to do so may result in serious injury. (80kg) ASSEMBLY STEPS STEP 1 Place the desktop sections (1) upside down on a flat surface, then assemble using the connectors (9) with M5x16 screws (A) and a Phillips screwdriver.
- Page 4 STEP 2 Assemble the left and right support bars (2, 3) using the support bar connector (10) and M6x12 bolts (B). Tighten with the 5mm Allen wrench (F). STEP 3 Insert the anti-vibration pads (H) into the desktop mounting holes in the support bar assembly.
- Page 5 STEP 4 Place the support bar assembly upside down on the desktop. Align the support bar assembly with the four pre-drilled alignment holes circled below. Secure these using M5x16 screws (A) with a Phillips screwdriver. Then secure the rest of the mounting points using the same screws.
- Page 6 STEP 6 Place the feet (7) on the legs as shown, then insert and tighten M6x35 bolts (D) using the 5mm Allen wrench (F). Screw the foot pads (G) into the feet. Insert the sync rod (6) into the leg (4). Loosen the nut on the sync rod, then extend the rod onto the motor leg (5) and tighten the nut.
- Page 7 STEP 8 Carefully turn the desk right side up and connect the AC adapter (12) to a wall outlet. If necessary, adjust foot pads (G) to level the desk. The desk is now ready for use. Please refer to the Controller User Guide for operating instructions. CAUTION! Do not exceed desk Keep area of vertical...
- Page 8 - 92% within < 3hr www.vivo-us.com AVG. RESOLUTION TIME : < 15 M (within office hrs) Chat live with an agent! 309-278-5303 AVG. RESOLUTION TIME : 5M 4S (within office hrs) FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
