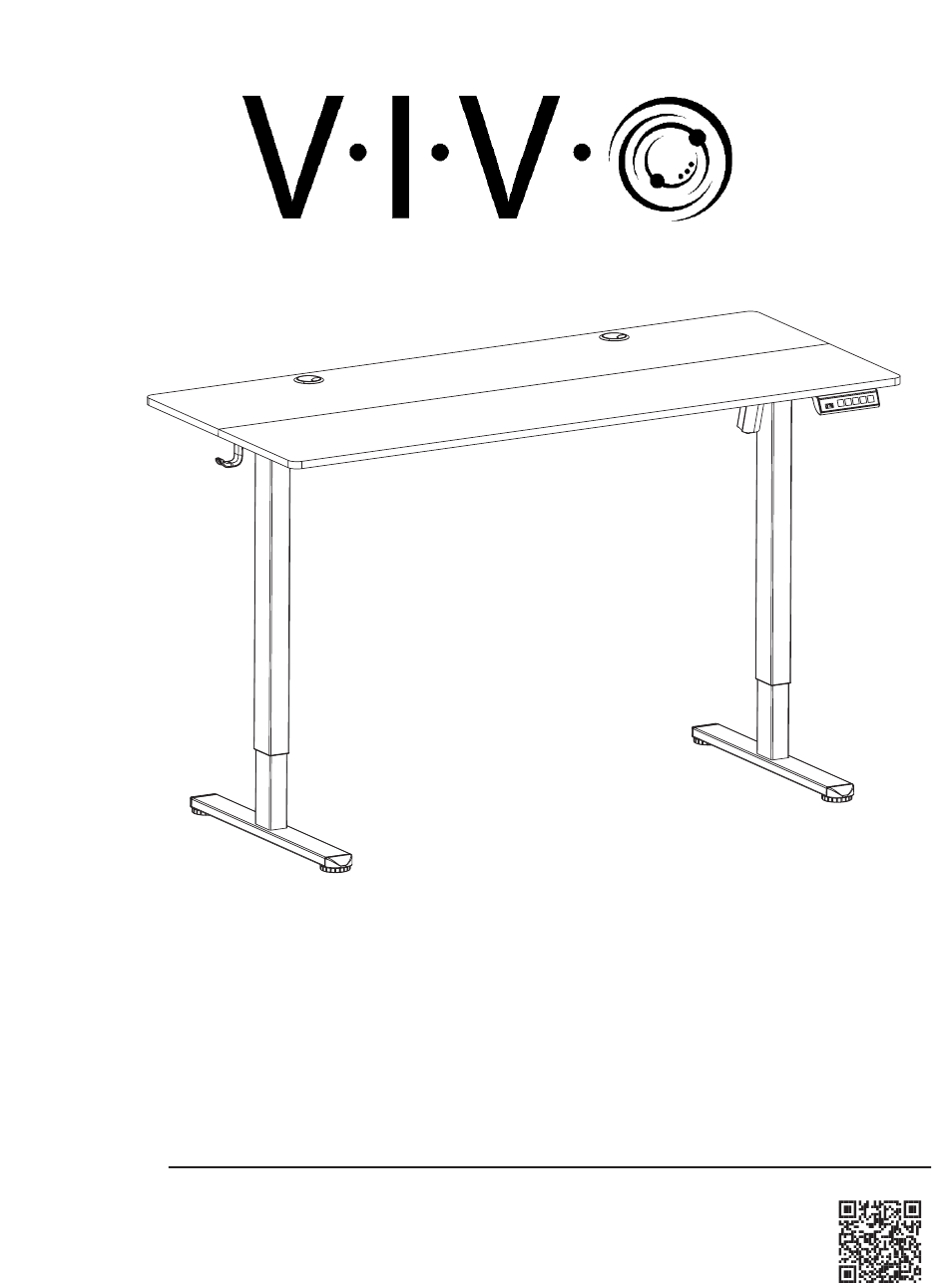

55" x 24" Electric Desk
SKU: DESK-E155TB/C/N/W
Instruction Manual
Assembly Video & Product Info
www.vivo-us.com/products/desk-e155tb

Advertisement

loading
Need help?

Need help?

Do you have a question about the DESK-E155TB and is the answer not in the manual?

Questions and answers

Summary of Contents for Vivo DESK-E155TB

  • Page 1 55” x 24” Electric Desk SKU: DESK-E155TB/C/N/W Instruction Manual Assembly Video & Product Info www.vivo-us.com/products/desk-e155tb...
  • Page 2 7AM - 7PM Monday-Friday Give us a Call: Chat Us: Email Us: 309-278-5303 www.vivo-us.com help@vivo-us.com We’re Here for You! Our customer-minded support team is here for YOU, Monday-Friday 7am-7pm CST. We offer immediate assistance with rapid response times from customer service agents and product techncians to...
  • Page 3: Electrical Safety Instructions

    If you do not understand these directions, or if you have any doubts about the safety of the installation, please contact our product support team at 309-278-5303 or help@vivo-us.com for further assistance. Check carefully to make sure there are no missing or defective parts.
  • Page 4 Package Contents A (x1) B (x1) C (x2) D (x1) Motorized Leg Foot Sync Rod F (x1) E (x1) G (x2) H (x1) AC Adapter Controller Side Bracket Crossbar L (x2) J (x2) I (x1) K (x2) Grommet Cover Cable Clips Desktop Set Hook Included Hardware &...
  • Page 5: Assembly Steps

    ASSEMBLY STEPS STEP 1 Attach Crossbar (H) to Leg (B) and Motorized Leg (A) to Crossbar using M6x8mm Screws (S-A) and 5mm Allen Wrench (T-B). Secure Feet (C) to the underside of Legs (A,B) using M6x35mm Screws (S-C) and 5mm Allen Wrench (T-B).
  • Page 6 STEP 2 Flip assembly right side up and secure Side Brackets (G) to the sides of legs (A,B) using M6x8mm Screws (S-A) and 5mm Allen Wrench (T-B). S-A (x4)
  • Page 7 STEP 3 1). Loosen the nut on Sync Rod (D). 2). Insert the hex rod end into Leg (B). 3). While holding the hex end, pull the larger rod out until the connector engages with Motorized Leg (A). Tighten the set screw on Sync Rod (D) using 2mm Allen Wrench (T-A), then tighten the nut.
  • Page 8 STEP 4 Insert Wooden Dowels (S-D) into the side holes of Desktop Set (I), then slide the panels together. S-D (x6)
  • Page 9 STEP 5 Secure the desk frame assembly to Desktop Set (I) using ST5x15mm Screws (S-B) and a power drill or a Phillips screwdriver, makining note of the pre-drilled holes provided. Install Hooks (K) and Control Panel (E) to Desktop Set (I) using ST5x15mm Screws (S-B) and a power drill or Phillips screwdriver.
  • Page 10 STEP 6 Connect the cables from AC Adapter (F) and Motorized Leg (A1) into the back of Control Panel (E), as shown below. Remove the film from Cable Clips (J) and use to secure cables to the underside of desktop as desired.
  • Page 11 STEP 7 Flip the desk assembly upright and place Grommet Covers (L) into the holes on assembled desktop.
  • Page 12: Led Controller

    LED CONTROLLER OPERATION LED Panel Displays the current desk height Up Arrow Press and hold to raise the desk. Release when desired height is reached. Down Arrow Press and hold to lower the desk. Release when desired height is reached. Memory Settings Use these settings to save and return to your desired height.
  • Page 13: Troubleshooting

    If error presists, please contact our Product Support Team at 309-278-5303 or help@vivo-us.com for further assistance Undervoltage Warning: The input voltage is too low. f correct AC adapter is being used, unplug the desk from the wall and disconnect all cables from the controller.
  • Page 14 WHO WE ARE VIVO is more than a brand of ergonomic office furniture. We are a team of creative and innovative indivuduals working together to offer high quality, affordable ergonomic solutions. We think and work outside of the box to serve...
  • Page 15 Call Us: 309-278-5303 Average Resolution Time: 5m 4s Chat Us: www.vivo-us.com Average Resolution Time: < 15m Email Us: help@vivo-us.com Average Resolution Time: 1HR 8M 23% within < 15m 38% within <...
  • Page 16 LAST UPDATED: 11/15/23 REV2LF v3.0 Need Help? Get In Touch Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com 309-278-5303 Chat live with an agent! FOR MORE GREAT VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: WWW.VIVO-US.COM VIVO-us @vivo_us...
