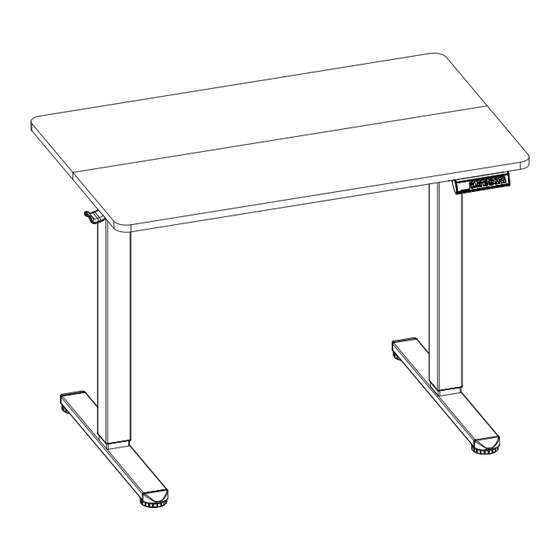

Black Electric Desk
Instruction Manual
SKU: DESK-E144B
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/desk-e144b
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Vivo DESK-E144B
Summary of Contents for Vivo DESK-E144B
- Page 1 Black Electric Desk Instruction Manual SKU: DESK-E144B Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/desk-e144b GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com 309-278-5303...
-
Page 2: Electrical Safety Instructions
WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual and do not exceed weight capacity. -
Page 3: Assembly Steps
ASSEMBLY STEPS STEP 1 Assemble Crossbar (B) to Leg (E) and Motorized Leg (F) using M6x11mm Screws (S-B) and 5mm Allen Wrench (T-B). STEP 2 Turn assembly upside down and connect Foot (G) to underside of Leg (E) and Motorized Leg (F) using M6x35mm Screws (S-A) and 5mm Allen Wrench (T-B). - Page 4 STEP 3 Flip assembly upright and connect Side Brackets (C) to Leg (E) and Motorized Leg (F) using M6x11mm Screws (S-B) and 5mm Allen Wrench (T-B). STEP 4 Loosen the knob on the Sync Rod (D) and extend the hex shaft. Insert hex shaft into the Leg (E), making sure the metal retaining ring makes contact with the Leg (E).
- Page 5 STEP 5 Connect Desktop (A) using Wood Pegs (S-D). Secure using Desktop Connector (J), M5x16mm Screws (S-C), and a Phillips screwdriver. STEP 6 Flip desk frame assembly over and place ontop of Desktop (A). Secure Side Brackets (C) to Desktop (A) using M5x16mm Screws (S-C) and a Phillip screwdriver.
- Page 6 STEP 7 Connect cable from Motorized Leg (F) to Controller (H), as shown below. Connect AC Adapter (I) to Controller (H). Secure cables to Desktop (A) using Cable Clips (M). CAUTION! Do not exceed desk Keep area of vertical Keep weight on desk Leave enough slack in weight limit.
- Page 7 THIS PAGE INTENTIONALLY LEFT BLANK...
- Page 8 Love your new VIVO setup and want to share? LAST UPDATED: 08/22/2022 Tag us in your photo! @vivo_us REV3 Open Monday - Friday 7:00am - 7:00pm CST, our dedicated support team can offer immediate assistance with rapid response times. If any parts are received damaged or defective, please contact us.
