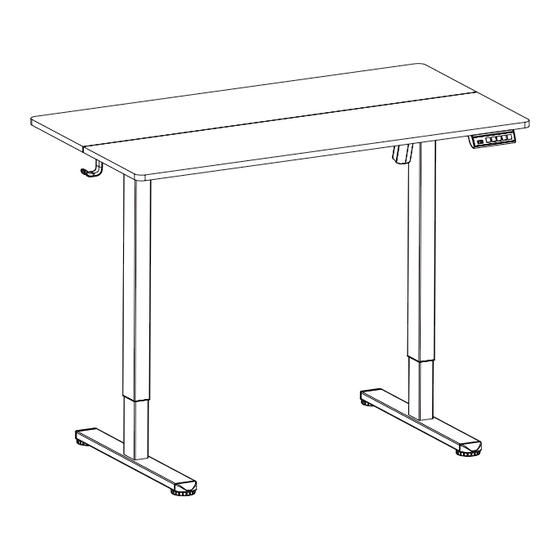

Electric desk
Hide thumbs Also See for DESK-E144B:

Advertisement

Electric Desk
DESK-E144B/C/D/W
SKU:
Instruction Manual
Assembly Video & Product Info
www.vivo-us.com/products/desk-e144b

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DESK-E144B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Vivo DESK-E144B

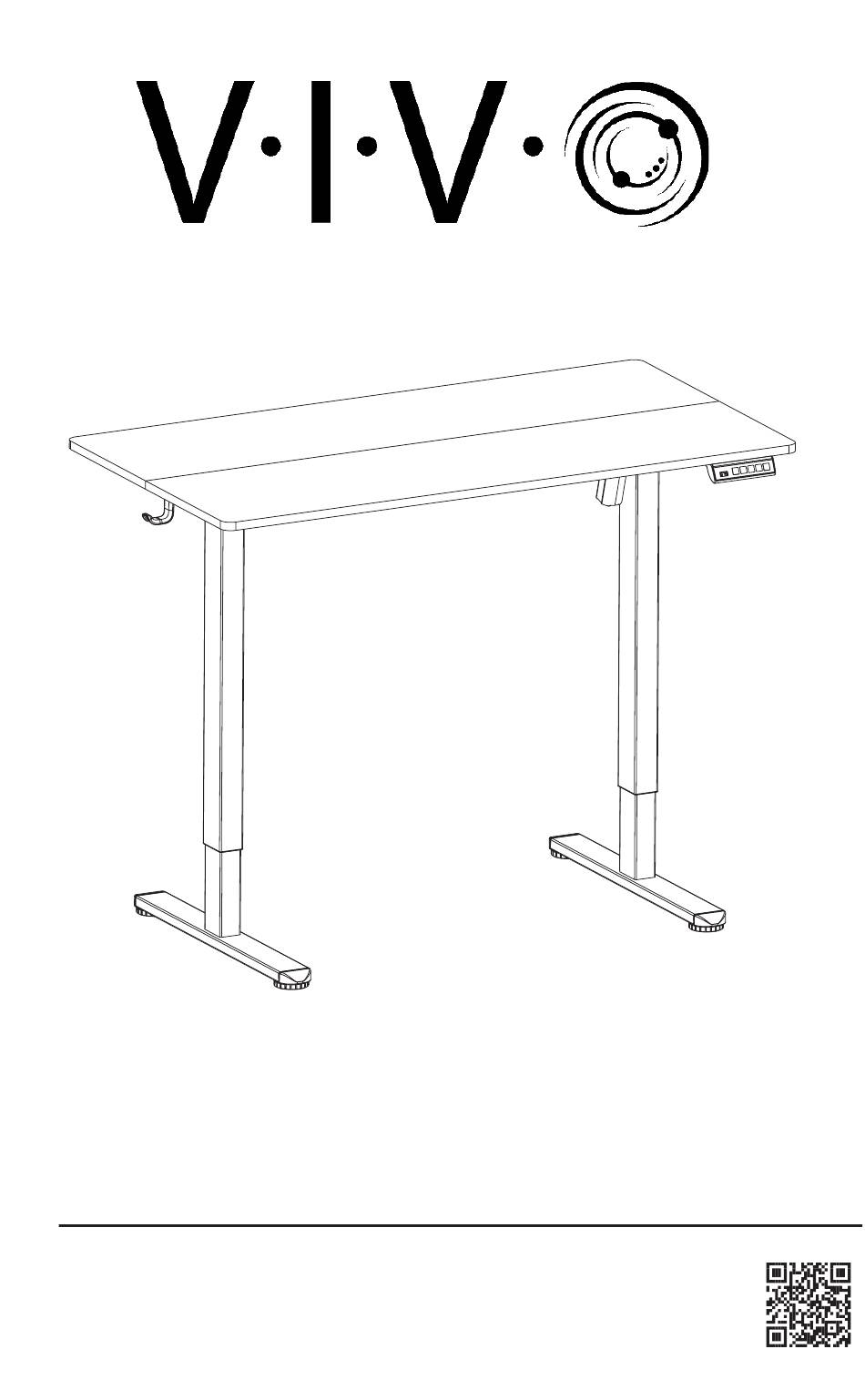

  • Page 1 Electric Desk DESK-E144B/C/D/W SKU: Instruction Manual Assembly Video & Product Info www.vivo-us.com/products/desk-e144b...
  • Page 2 If you do not understand these directions, or if you have any doubts about the safety of the installation, please contact our product support team at 309-278-5303 or help@vivo-us.com for further assistance. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
  • Page 3: Package Contents

    Package Contents A (x1) B (x1) C (x2) D (x1) Motorized Leg Foot Sync Rod H (x1) E (x1) F (x1) G (x2) Crossbar Control Panel AC Adapter Side Bracket I (x1) J (x2) K (x2) L (x1) Desktop Set Cable Clip Hook Connecting Plate...
  • Page 4: Assembly Steps

    ASSEMBLY STEPS STEP 1 Attach Crossbar (H) to Leg (B) and Motorized Leg (A) using M6x8mm Screws (S-A) and 5mm Allen Wrench (T-B). S-A (x4) STEP 2 Attach Feet (C) onto Leg (B) and Motorized Leg (A) using M6x35mm Screws (S-C) and 5mm Allen Wrench (T-B).
  • Page 5 STEP 3 Attach Side Brackets (G) onto Leg (B) and Motorized Leg (A) using M6x8mm Screws (S-A) and 5mm Allen Wrench (T-B). S-A (x4)
  • Page 6 STEP 4 1. Loosen the knob on Sync Rod (D) and extend the hex shaft. 2.Insert hex shaft into Leg (B), making sure the metal retaining ring makes contact with Leg (B). 3. While holding the hex shaft with one hand, extend Sync Rod (D) onto the spline shaft of Motorized Leg (A).
  • Page 7 STEP 5 Insert Wooden Dowels (S-D) into the holes on the sides of Desktop Set (I). Slide the panel sections from Desktop Set (I) together. Secure the panels together using Connecting Bracket (L) and ST5x15mm Screws (S-B). Tighten with a Phillips screwdriver. S-D (x4) S-B (x2) Install the frame assembly to Desktop (I) using ST5x15mm Screws (S-B) tightening with a...
  • Page 8 STEP 6 Install Hooks (K) and Control Panel (E) to Desktop (I) using ST5x15mm Screws (S-B), tightening with Phillips screwdriver. S-B (x6)
  • Page 9 STEP 7 Connect AC Adapter (F) and the cable on Motorized Leg (A) into the back of Control Panel (E). Remove the film from Cable Clips (J) and organize cables on the bottom of the desktop.
  • Page 10: Operation

    LED CONTROLLER OPERATION LED Panel Displays the current desk height Up Arrow Press and hold to raise the desk. Release when desired height is reached. Down Arrow Press and hold to lower the desk. Release when desired height is reached. Memory Settings Use these settings to save and return to your desired height.
  • Page 11: Troubleshooting

    If error presists, please contact our Product Support Team at 309-278-5303 or help@vivo-us.com for further assistance Undervoltage Warning: The input voltage is too low. f correct AC adapter is being used, unplug the desk from the wall and disconnect all cables from the controller.
  • Page 12 LAST UPDATED: 11/17/23 REV2 v4.0 Need Help? Get In Touch Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com 309-278-5303 Chat live with an agent! FOR MORE GREAT VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: WWW.VIVO-US.COM VIVO-us @vivo_us...

This manual is also suitable for:

Desk-e144cDesk-e144dDesk-e144w
