Razor W13113290048 Instructions

Reae wheel/ motor replacement

Download this manual

Required Tools: (Not included)

A. Phillips screwdriver

B. Two (2) 19 mm wrenches

WARNING

CAUTION: To avoid potential shock or other injury, turn power switch OFF and disconnect

charger before conducting any assembly or maintenance procedures. Failure to follow these

steps in the correct order may cause irreparable damage.

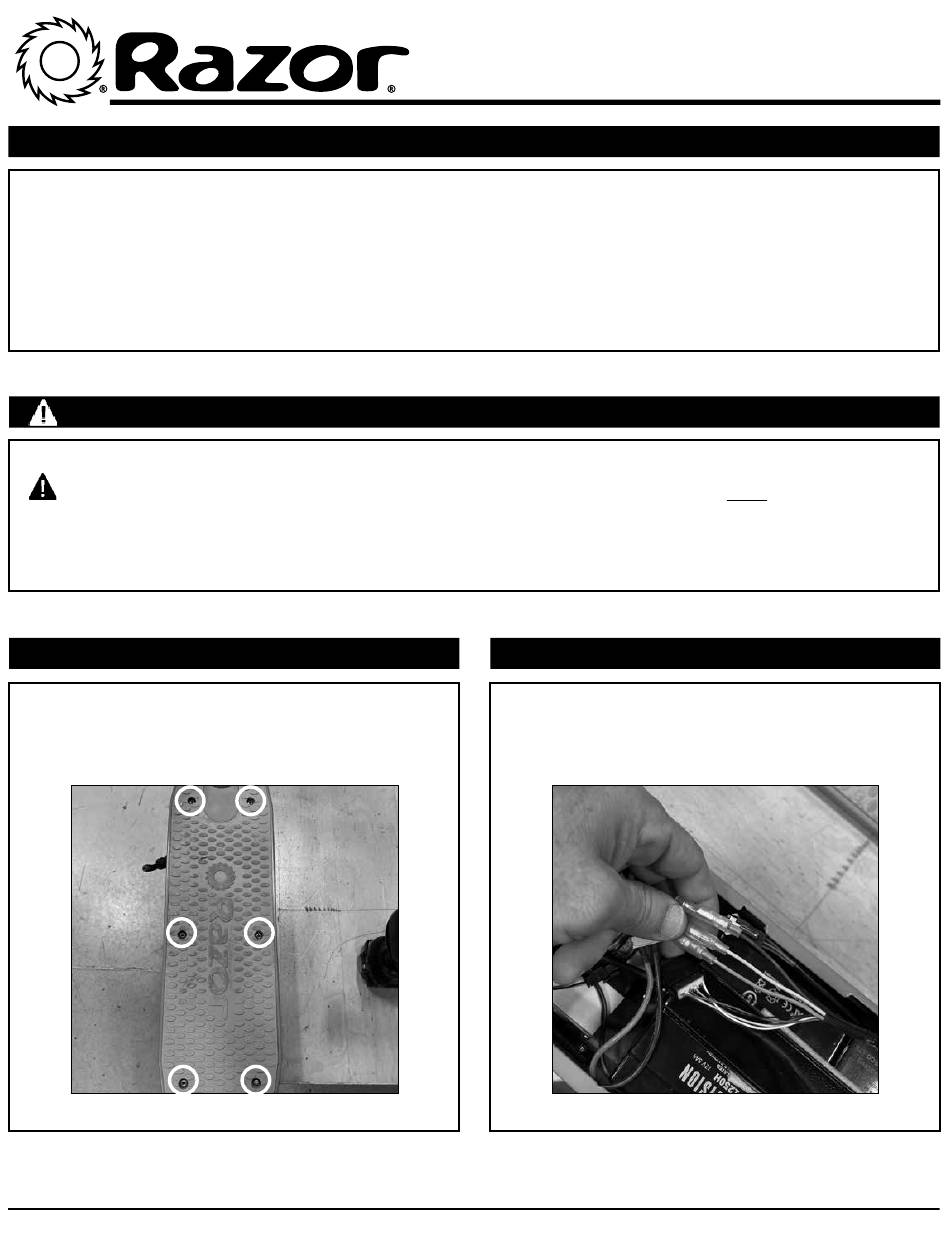

Step 1

Using a Phillips screwdriver, remove six (6) screws from

the deck. Remove the deck from the unit and set aside.

Need Help? Visit our website at www.razor.com or call toll-free at 866-467-2967 Monday - Friday 8:00am - 5:00pm Pacific Time.

REAR WHEEL / MOTOR REPLACEMENT

Step 2

Locate and disconnect the motor connectors from the

controller.

C25 & C25 SLA

PART # W13113290048

Page 1 Locate and disconnect the motor connectors from the the deck. Remove the deck from the unit and set aside. controller. Need Help? Visit our website at www.razor.com or call toll-free at 866-467-2967 Monday - Friday 8:00am - 5:00pm Pacific Time.
Page 2 • Reposition the deck and attach with the screws that were removed in Step 1. ATTENTION: Charge battery 8 hours before using. Need Help? Visit our website at www.razor.com or call toll-free at 866-467-2967 Monday - Friday 8:00am - 5:00pm Pacific Time.
