Summary of Contents for Razor Electric Punk

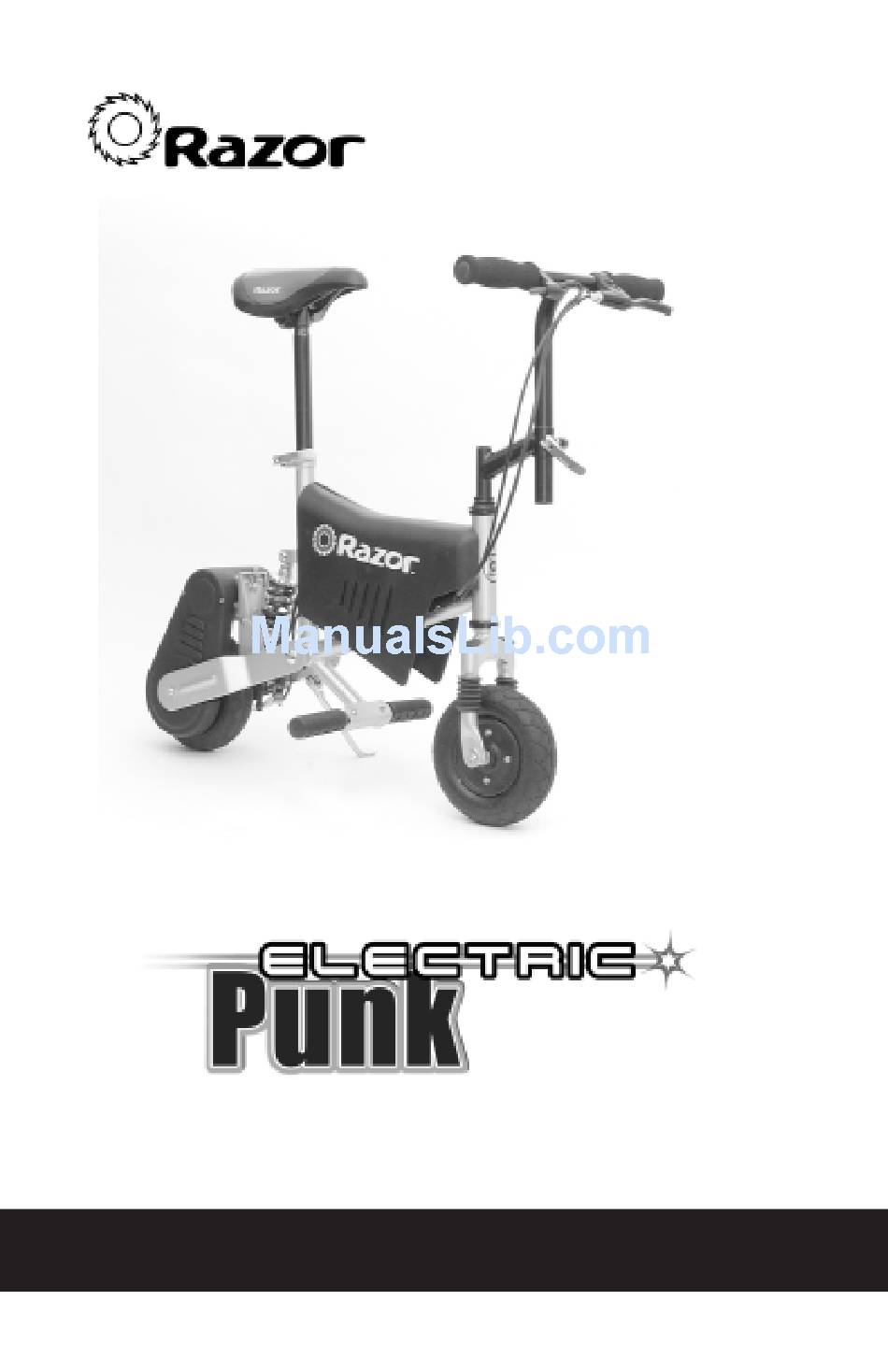

  • Page 1 O w n e r ’ s M a n u a l...

  • Page 2: Table Of Contents

    1. Parts of the Electric Punk ......3 2. Proper Fit and Size Adjustments ..... . .4 3.

  • Page 3: Parts Of The Electric Punk

    Certain after-market products may or may not be compatible with your Electric Punk. Consult your retailer or call Razor prior to modifying or replacing any component with a non-factory specified product.

  • Page 4: Proper Fit And Size Adjustments

    3. Brake Your Electric Punk is fitted with a hand-operated brake. The brake lever may be positioned on the handlebar where it is most comfortable for the rider. To change the position, loosen the clamping screw and slide the brake lever to the new position and retighten securely.

  • Page 5: Assembly

    Electric Punk was partially assembled and packed at the factory to prevent shipping damage and there should not be any problems, even if the box has a few scars or dents. But if there are, contact Razor immediately to resolve any problems.

  • Page 6: Install The Handlebars And Stem

    NOTE:: The brake cable and trigger switch wire are attached to the controls on the handlebars. Be careful not to deliberately or inadvertently kink or bend these wires during assembly. 4B. Install the handlebars and stem. Insert the handlebars into the stem as shown in Figure 3a. Insert the stem into the fork as shown in Figure 3b.

  • Page 7: Install Seatpost

    4C. Install the seatpost Insert the seatpost and seat assembly into the frame as shown in Figure 4a. Note the “minimum insertion” line (arrow in Figure 4a). The post must be inserted until this line is no longer visible. Align the seat square to the frame and flip the quick-release (QR) lever “closed”...

  • Page 8: Adjust And Tighten Handlebars

    4D. Adjust and tighten the handlebars With the seat installed and tightened, sit on the Electric Punk and, with the stem QR open, adjust the handlebar square to the front wheel (remember, the stem must also be square to the front wheel). When the handlebar position is satisfactory, push the QR lever (Figure 5a) until it is closed (Figure 5b).

  • Page 9: Inflating The Tires

    NOTE: Although we make every effort to keep our manual up-to- date, if your Electric Punk does not look exactly this, then we’ve made improvements since this document was printed. Check out the Razor website: www.razor.com for technical updates on the latest service and adjustment procedures.

  • Page 10: Adjusting The Seat

    “seat guts” using a 15mm box wrench. Adjust the tilt as desired and retighten securely. 4G. Charging prior to use. The Electric Punk will probably not have a fully charged battery at the time of purchase. Therefore it is a good idea to charge the battery prior to use.
  • Page 11 Get in the habit of inspecting yours regularly. 5D. Bar ends. Your Razor is equipped with plugs in the end of the handlebars designed to provide protection from exposed handlebar ends, which can act like a cookie-cutter. If your bar plugs are worn out or missing and the handlebar end is exposed, replace them or cover the exposed end(s) with after-market bar-end protectors.

  • Page 12: Maintenance And Repairs

    6. Maintenance and Repairs 6A. Brake cable adjustment. The main adjustment on the brake is to take up the cable slack and bring the lever into adjustment. This is typically accomplished with the adjusting barrel at the brake lever as shown in Figure 9a.
  • Page 13 6F often during the first several hours of use. Repeat as necessary from thereafter to maintain proper brake function. 6B. Brake lever reach adjustment. The Electric Punk is supplied with a brake lever that adjusts to accommodate a variety of hand sizes. To adjust the brake lever so it is easier for smaller hands to operate the brake, turn the screw in the direction marked “B”...
  • Page 14 Figure 10a. If the belt requires tensioning, loosen the two screws and the locknut (A in Figure 10b) and turn the adjusting screw (B in Figure 10b) in 1/8 to 1/4 turn increments until the desired tension is attained. Be careful not to over tighten the belt! Once the belt tension is correct, retighten the screws and locknut to secure the adjusting mechanism.
  • Page 15 to separate the two halves and to remove and repair or replace the tube and/or tire. 6) To reassemble, reverse the order of disassembly. Figure 11c. Figure 11c. Figure 11e. Figure 11d. Figure 11d. Figure 11f...

  • Page 16: Safety

    7. Safety Helmets. Although not every state or municipality requires juvenile-age cyclists to wear a helmet, Razor strongly recommends you wear a properly approved helmet, such as ANSI or SNELL, even if the law does not mandate the use of a helmet.
  • Page 17 Electric Punk. We do not recommend riding at night or in low-light conditions. Wet weather riding. Do not ride in wet weather. WARNING: Keep your fingers and other body parts away from the drive belt, steering system, wheels and all other moving components.
  • Page 18 Observe and yield the right-of-way as prescribed by local traffic rules. Riding the Electric Punk may be a hazardous activity and has inherent dangers that no amount of care, caution, instruction or expertise can eliminate. Certain conditions may cause the equipment to fail without fault of the manufacturer.

  • Page 19: Limited Warranty And Owner Registration

    To obtain service under this warranty you must, within the warranty period, contact Razor USA LLC directly by e-mail at warranty@razorusa.com. Razor will provide warranty replacement at its sole discretion.
  • Page 20 Spare tires, tubes and batteries are available! Keep your Electric Punk running for years with these and other genuine Razor parts. Visit our website and e-mail us for more information on spare part availability.
