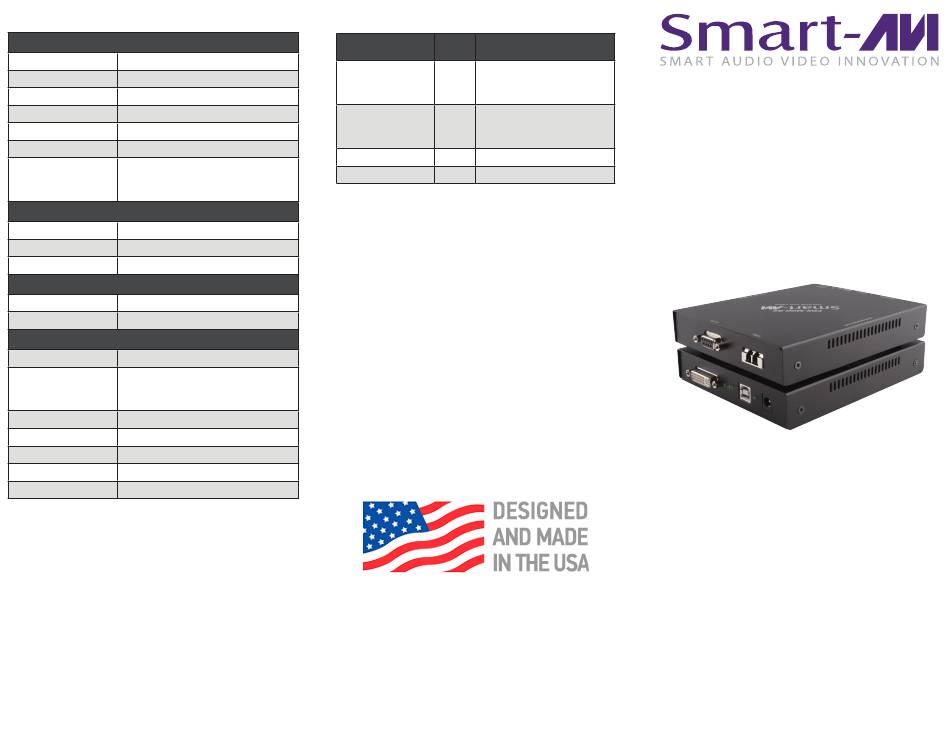

SMART-AVI FDX-MINI Quick Start Manual

TECHNICAL SPECIFICATION
VIDEO
Format DVI-D Single Link
Maximum pixel clock 165 MHz
Input interface (TX) (1) DVI-D 29-pin female
Output interface (RX) (1) DVI-D 29-pin female
Resolution 1920 x 1200 at 60 Hz
DDC Internal Table can be re-programmed
Class 1;
Laser Output Power EN 60825-1 2007;
EN 60825-2 A2 2010
USB
Input interface (TX) (1) USB Type B (female)
Output interface (RX) (2) USB Type A (female)
Frequency Response 30KHz to 80KHz
RS-232
Format DB9 (Female)
Speed Up to 9600bps
OTHER
Power External 100-240 VAC/5VDC4A
225m @ Multimode 62,5μ;
Fiber Extend 450m @ Multimode 50μ;
Fiber-Plug type LC
Dimensions 4.5"x5.5"x1.70"
Weight 2 lbs
Operating Temp. 0-55 °C (32-131°F)
Storage Temp. -20-85 °C (-4-185 °F)
Humidity Up to 95%
WHAT'S IN THE BOX
PART NO. Q-TY DESCRIPTION
DVI-D, USB K/M and
FDX-MINI-TX 1 RS232 over Multimode
Fiber Transmitter
DVI-D, USB K/M and
FDX-MINI-RX 1 RS232 over Multimode
Fiber Receiver
PS5VDC4A 2 PS5VD4A Power Supply
Quick Start Guide 1
NOTICE
The information contained in this document is
subject to change without notice. SmartAVI makes
no warranty of any kind with regard to this material,
including but not limited to, implied warranties of
merchantability and fitness for particular purpose.
SmartAVI will not be liable for errors contained
herein or for incidental or consequential damages in
connection with the furnishing, performance or use of
this material.
No part of this document may be photocopied,
reproduced, or translated into another language
without prior written consent from SmartAVI
Technologies, Inc.
800.AVI.2131, 702.800.0005
2455 W Cheyenne Ave, Suite 112
North Las Vegas, NV 89032
SmartAVI.com

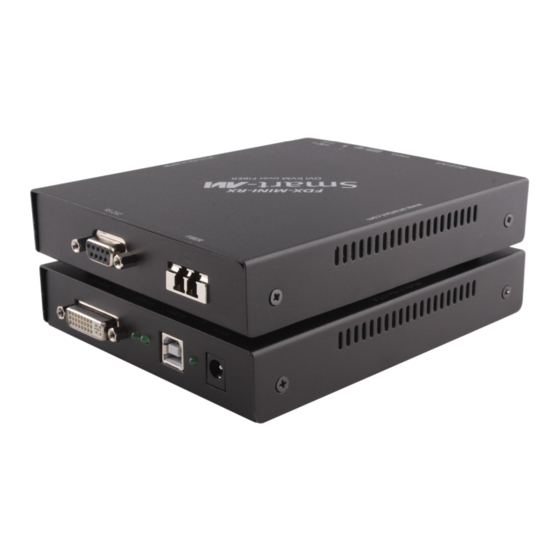

FDX-MINI
KVM (DVI-D) Fiber Extender
FOR THE EXTENSION OF ANY
DVI-D, USB KEYBOARD, MOUSE,
AND RS232 SIGNAL
UP TO 1,400 FEET
Quick Start Guide
