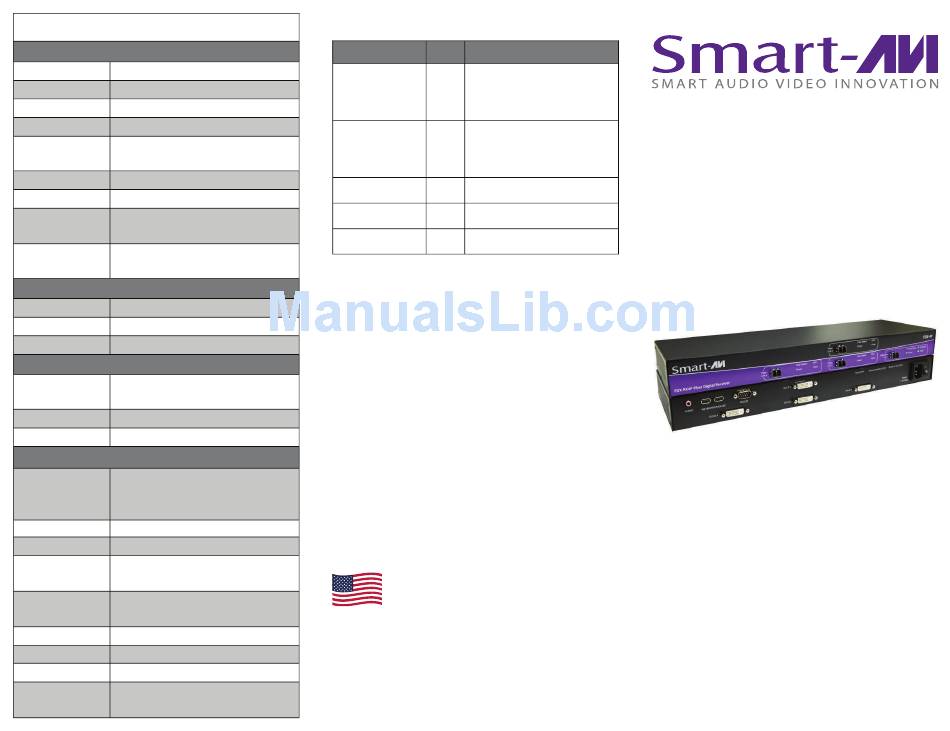

SMART-AVI FDX-M4P Quick Start Manual

TECHNICAL SPECIFICATIONS

VIDEO
Resolution Up to 1920 x 1200 @60Hz
Format DVI-D Single Link
Input Interface (4) DVI-D 29-pin female
Output Interface (4) DVI-D 29-pin female
Maximum Pixel
165 MHz
Clock
DDC Internal
Input Equalization Automatic
Input Cable
Up to 20 ft.
Length
Output Cable
Up to 20 ft.
Length
AUDIO
Signal Type Stereo Audio
Input Interface (1) 3.5 mm Stereo Audio Female
Output Interface (1) 3.5 mm Stereo Audio Female
USB
USB 2.0 or 1.1 (Keyboard and
Signaling
Mouse ONLY)
Input Interface (1) USB Type B Female
Output Interface (2) USB Type A Female
OTHER
• 225m @ Multimode 62,5μ
Fiber Extender • 450m @ Multimode 50μ
Fiber-Plug type LC
Power Internal 110-240 VAC
Dimensions 17" W x 5.75" D x 1.875" H
Weight FDX-
2.6 lbs
TXM4P
Weight FDX-
2.75 lbs.
RXM4P
Operating Temp. 32-131°F (0-55 °C)
Storage Temp. -4-185 °F (-20-85 °C)
Humidity Up to 95% No Condensation
Data up to 115,200 bps, N,8,1, No
RS-232
Flow Control
WHAT'S IN THE BOX
PART NO. QTY DESCRIPTION
Point to Point Quad DVI-D,
USB Keyboard & Mouse, Au-
FDX-TXM4P 1
dio and RS-232 Multimode
Fiber Extender Transmitter
Point to Point Quad DVI-D,
USB Keyboard & Mouse, Au-
FDX-RXM4P 1
dio and RS-232 Multimode
Fiber Extender Receiver
EN-SFX4P-EAR-P 4 Mounting Brackets
CCPWR06 2 Power supply cord
1

Quick Start Guide

NOTICE

The information contained in this document is
subject to change without notice. SmartAVI
makes no warranty of any kind with regard to this
material, including but not limited to, implied
warranties of merchantability and fitness for
particular purpose.
SmartAVI will not be liable for errors contained
herein or for incidental or consequential
damages in connection with the furnishing,
performance or use of this material.
No part of this document may be photocopied,
reproduced, or translated into another language
without prior written consent from SmartAVI
Technologies, Inc.
20160901
Designed and Manufactured in the USA
800.AVI.2131
Tel: (818) 503-6200 | Fax: (818) 503-6208
11651 Vanowen St. North Hollywood, CA 91605
SmartAVI.com

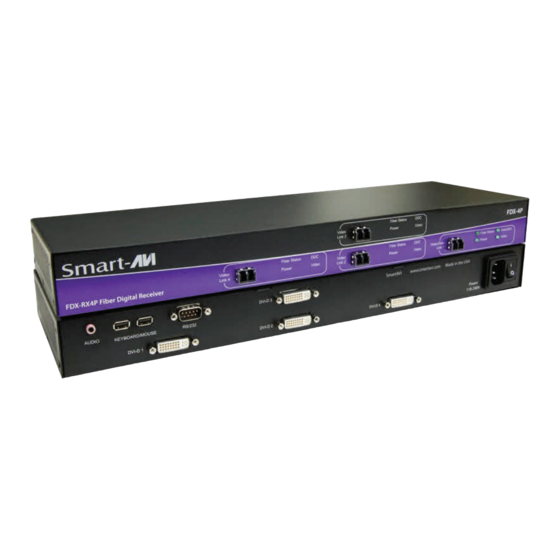

FDX‐M4P
(FDX‐M4U)
MULTIMODE FIBER OPTIC
4 PORT DVI-D EXTENDER
Quad DVI-D, USB Keyboard,
USB Mouse, RS-232 and Audio
Extender
Quick Start Guide
