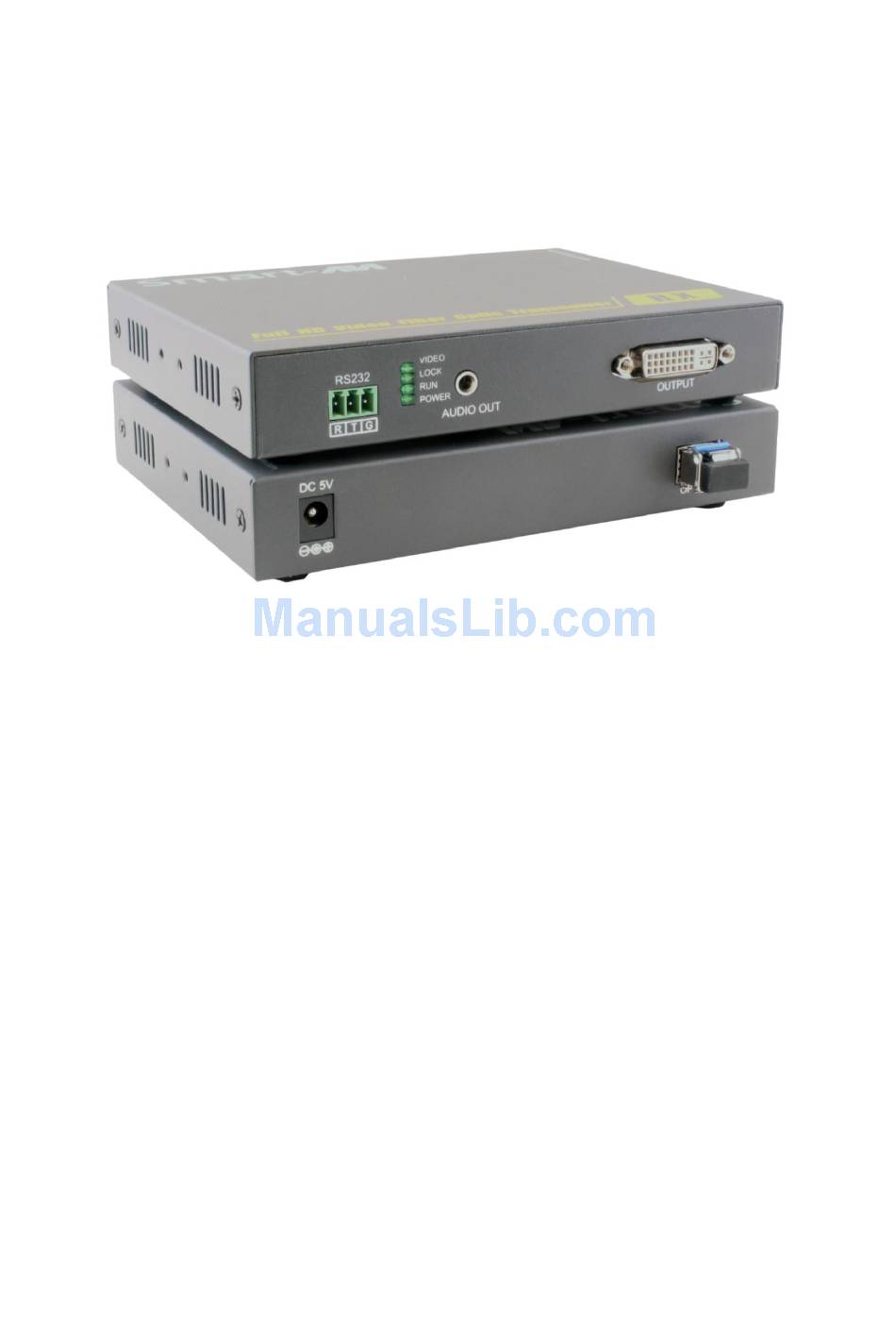

- Page 1 SmartAVI FDX-Mini HD DVI-D, RS232 Fiber Optic Extender User Manual v1.0...
- Page 2 1. Description The FDX-Mini fiber optic extender boosts DVI signals over long distances with a single fiber cable. With high definition resolutions up to 1080p, RS232 signal control and external audio transmission function, the FDX-Mini is perfect for wide range of applications where security and efficiency are essential.
- Page 3 Specifications Parameter Description Standards DVI 1.0; HDCP 1.2 Maximum pixel clock 165MHz Maximum data rate 6.75Gbps 1920*1080@60Hz 1920*1080@50Hz 1920*1080@30Hz 1920*1080@25Hz Video Resolution 1920*1080@24Hz 1080I@60Hz 1080I@50Hz 1280*720@60Hz 1280*720@50Hz Connector DVI-D Impedance 100Ω Interface 3.5mm earphone seat Audio Signal type Stereo Interface Industrial terminal Signal direction Unidirectional...

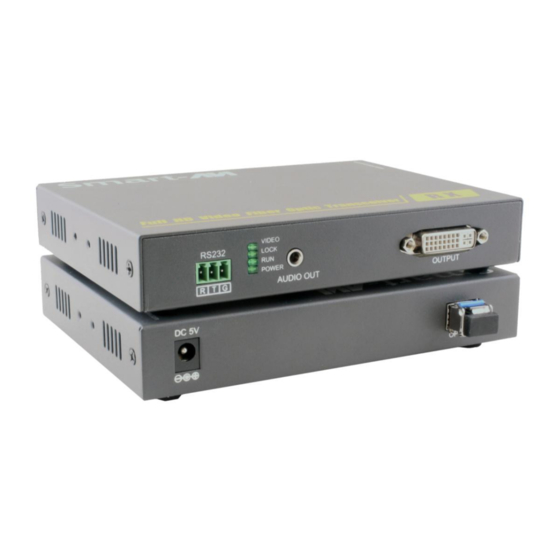

- Page 4 4. Panel Transmitter: Receiver: Port name Description DVI IN/OUT DVI signal input/output Audio IN/OUT Stereo audio signal input/output RS232 Serial port( G: Ground, T: transmit, R: receive ) DC/5V Power adapter socket FIBER SFP module---LC connector LED indicator Description VIDEO Video signal connection indicator LOCK Video signal lock indicator...
- Page 5 6. Installation 1. Connect DC/5V power supplies to the transmitter and the receiver 2. Connect an DVI cable to the FDX-Mini-TX DVI input port and output port of the video source 3. Connect a DVI cable to FDX-Mini-RX output port and input port of video display 4.
