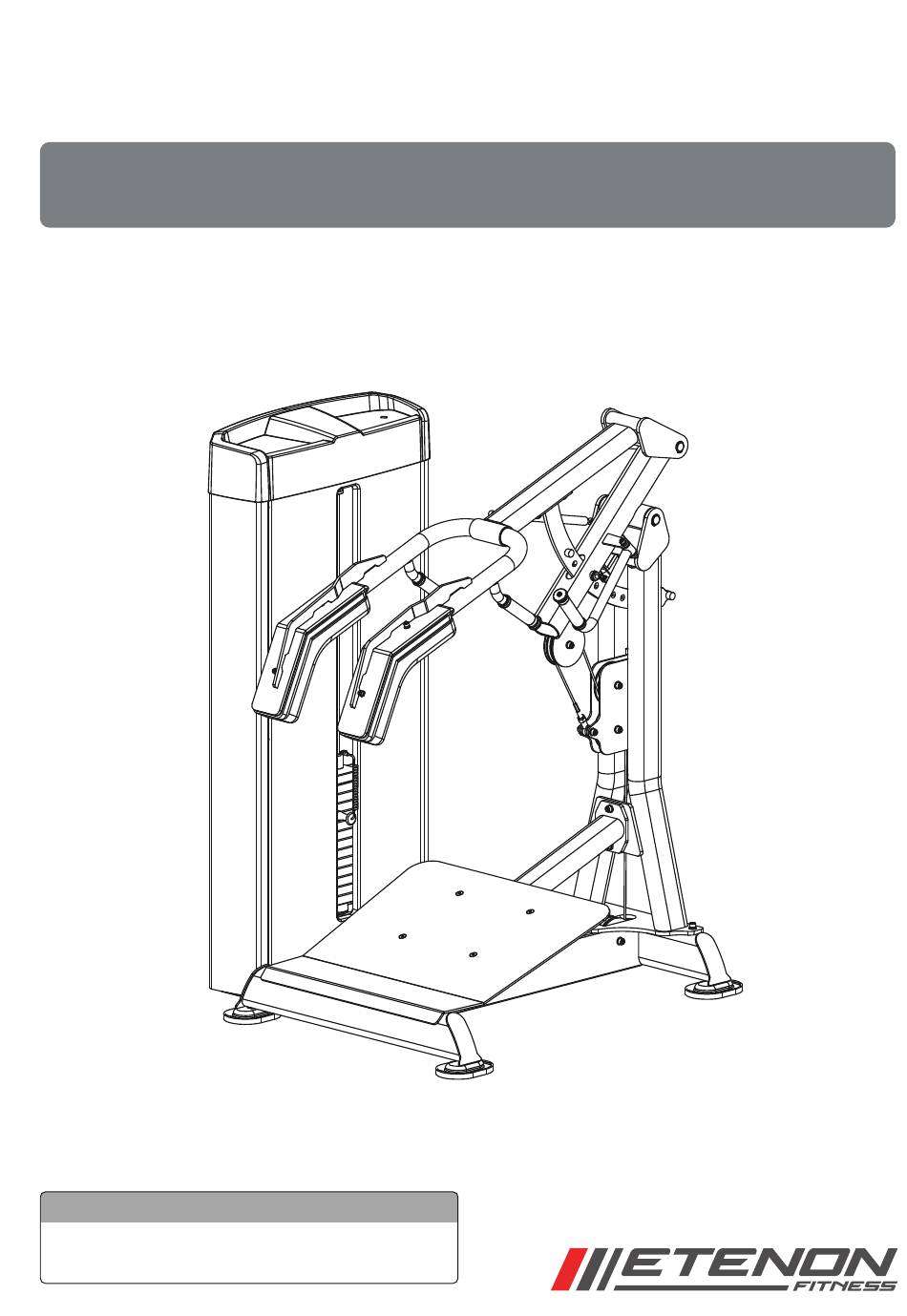

- Page 1 OWNER S MANUAL ’ SQUAT/ STANDING CALF CAUTION Please read all instructions in this manual before use the equipment and keep the manual well.
- Page 4 Equipment Schematic Swinging rack Door Frame Adjusting rack Shoulder pad Stand frame...
-
Page 7: Assembly Step
Assembly step 1 Step Description Specifications Door Frame Inner Hexagon Socket Head Bolt M10*35 Spring washer Flat washer Φ20*Φ10.5*2 Cross connection frame Middle ground frame Hexagon socket screws with cylindrical head M12*30 Spring washer Flat washer Φ24*Φ13*2.5... - Page 8 Assembly step 2 Step Description Specifications Cross connection frame Stand frame Hexagon socket screws with cylindrical head M10*25 Hexagon socket screws with cylindrical head M10*30 Spring washer Flat washer Φ20*Φ10.5*2...
- Page 9 Assembly step 3 Step Description Specifications Bearing frame Swinging rack Adjusting rack Axis 2 Gas spring cylinder Elastic retaining ring for shaft d0=25 Hexagon socket screws with cylindrical head M10*30 Spring washer Flat washer Φ20*Φ10.5*2...
- Page 10 Assembly step 4 Step Description Specifications Swinging rack Axis 1 Elastic retaining ring for shaft d0=25...
- Page 11 Assembly step 5 Step Description Specifications Foot rest Hexagon socket screws with countersunk head M10*70 Hexagon socket screws with cylindrical head M10*30 Spring washer Flat washer Φ20*Φ10.5*2...
- Page 12 Assembly step 6 Step Description Specifications Shoulder pad Hexagon socket screws with cylindrical head M8*30 Spring washer Flat washer Φ16*Φ8.4*1.6...
- Page 13 Assembly step 7 Step Description Specifications Guide rod Guide rod fixed plate Rubber bumper φ64*φ32*φ20*35 Rubber bumper φ38*φ21*10 Rod end cover Selector pin Inner Hexagon Socket Head Bolt M8*20 Spring washer Flat washer Φ16*Φ8.4*1.6 Nylon nut 20 lb selection of iron components 10 pounds of counterweight...
- Page 14 Assembly step 8 Step Description Specifications Upper shield Shield fixed plate Fixed bushing Front shield Back shield cross recessed countersunk head screw M5*10 Countersunk head hexagon socket screw M6*16 Inner Hexagon Socket Head Bolt M6*16 Spring washer Flat washer Φ12*Φ6.4*1.6...
-
Page 15: Cable Routing Diagram
CABLE ROUTING DIAGRAM Correct Wrong Cable Cable limiting post limiting post... -
Page 16: Exploded View
Exploded View... - Page 17 Exploded List Description Specifications Doorframe Upper shield Shield fixed plate Guide rod Guide rod fixed plate Fixed bushing Front shield Back shield Rubber bumper φ64*φ32*φ20*35 Rubber bumper φ38*φ21*10 Floor cushion Rod end cover Pulley sets φ89*32 Selector pin cross recessed countersunk head screw M5*10 Countersunk head hexagon socket screw M6*16...
- Page 18 Exploded View...
- Page 19 Exploded List Description Specifications Front support frame Cross connection frame Middle ground frame Stand frame Bearing frame Swinging rack Adjusting rack Foot rest Adjusting pin Shoulder pad Adjusting handle frame Small rotating shaft Axis 1 Axis 2 Nylon roller Gas spring cylinder 20 lb selection of iron components Pulley set Step rolling bearing...
- Page 20 Exploded List Description Specifications Hexagon socket screws with cylindrical head M12*30 Spring washer Spring washer Spring washer Flat washer Φ16*Φ8.4*1.6 Flat washer Φ20*Φ10.5*2 Flat washer Φ24*Φ13*2.5 14 hole selection shaft Aluminum baffle ring Aluminum ring Plastic ring Aluminum end cover Set screws with inner hexagonal cone end M5*5 Spring washer...
