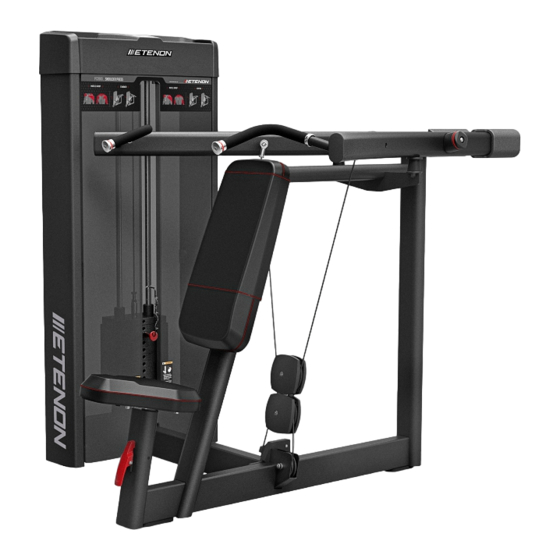

- Page 1 OWNER S MANUAL ’ SHOULDER PRESS CAUTION Please read all instructions in this manual before use the equipment and keep the manual well.
- Page 5 Equipment Schematic Right arm frame Door Frame Counter weight Left arm frame Back pad Main frame Seat pad...
-
Page 8: Assembly Step
Assembly step 1 Step Description Specifications Door Frame Inner Hexagon Socket Head Bolt M10*35 Spring washer Flat washer Φ20*Φ10.5*2 Main frame Connect frame Pulley set2 Pulley sets φ89*25.8 Inner Hexagon Socket Head Bolt M10*25 Inner Hexagon Socket Head Bolt M10*35 Inner Hexagon Socket Head Bolt M10*50 Spring washer... - Page 9 Assembly step 2 Step Description Specifications Right arm frame Left arm frame Decorative ring End cover Inner Hexagon Mushroom Head Bolt M10*25 Spring washer...
- Page 10 Assembly step 3 Step Description Specifications Pulley set1 Pulley set2 Inner Hexagon Socket Head Bolt M10*35 Spring washer...
- Page 11 Assembly step 4 Step Description Specifications Seat adjustment rack limiting screw M10*18*φ8 Sliding case set Inner Hexagon Socket Head Bolt M8*30 Inner Hexagon Socket Head Bolt M8*75 Spring washer Spring washer Φ16*Φ8.4*1.6 lat washer eat pad Back pad...
- Page 12 Assembly step 5 Step Description Specifications Guide rod Guide rod fixed plate Rubber bumper φ64*φ32*φ20*35 Rubber bumper φ38*φ21*10 Rod end cover Pulley sets φ89*32 Selector pin Inner Hexagon Socket Head Bolt M8*20 Inner Hexagon Socket Head Bolt M10*55 Spring washer Flat washer Φ16*Φ8.4*1.6 Flat washer...
- Page 13 Assembly step 6 Step Description Specifications Upper shield Shield fixed plate Fixed bushing Front shield Back shield cross recessed countersunk head screw M5*10 Countersunk head hexagon socket screw M6*16 Inner Hexagon Socket Head Bolt M6*16 Spring washer Flat washer Φ12*Φ6.4*1.6...
-
Page 14: Cable Routing Diagram
CABLE ROUTING DIAGRAM Correct Wrong Cable Cable limiting post limiting post... -
Page 15: Exploded View
Exploded View... - Page 16 Exploded List Description Specifications Doorframe Upper shield Shield fixed plate Guide rod Guide rod fixed plate Fixed bushing Front shield Back shield Rubber bumper φ64*φ32*φ20*35 Rubber bumper φ38*φ21*10 Floor cushion Rod end cover Pulley sets φ89*32 Selector pin cross recessed countersunk head screw M5*10 Countersunk head hexagon socket screw M6*16...
- Page 17 Exploded View...
- Page 18 Exploded List Description Specifications Main frame Connect frame Right arm frame Left arm frame Pulley set1 Pulley set2 Counter weight Seat adjustment rack Aluminum end cover Φ6.5*Φ38*13 Aluminum ring Φ23*Φ26*Φ32*14.5 Aluminum stop ring Φ26*Φ35*13 Two holes plate limiting screw M10*18*φ8 Adjustment handle Reed nut M6*Φ20.8*10...
- Page 19 Exploded List Description Specifications Inner Hexagon Socket Head Bolt M10*35 Inner Hexagon Socket Head Bolt M10*50 Spring washer Spring washer Spring washer Flat washer Φ12*Φ6.4*1.6 Flat washer Φ16*Φ8.4*1.6 Flat washer Φ20*Φ10.5*2 Nylon nut Rivet nut with small countersunk head M8*18 Seat pad Back pad...
- Page 21 Weight stack label instructions 1 Wipe front surface of weight stack 2 Peel off back sheet adhesive side from label and make sure that the label remains attached to the application tape 3 Aline the center hole of label with the weight stack center hole 4 Line up the first label to hole on top plate 5 Make sure label is straight and slowly press into place...
