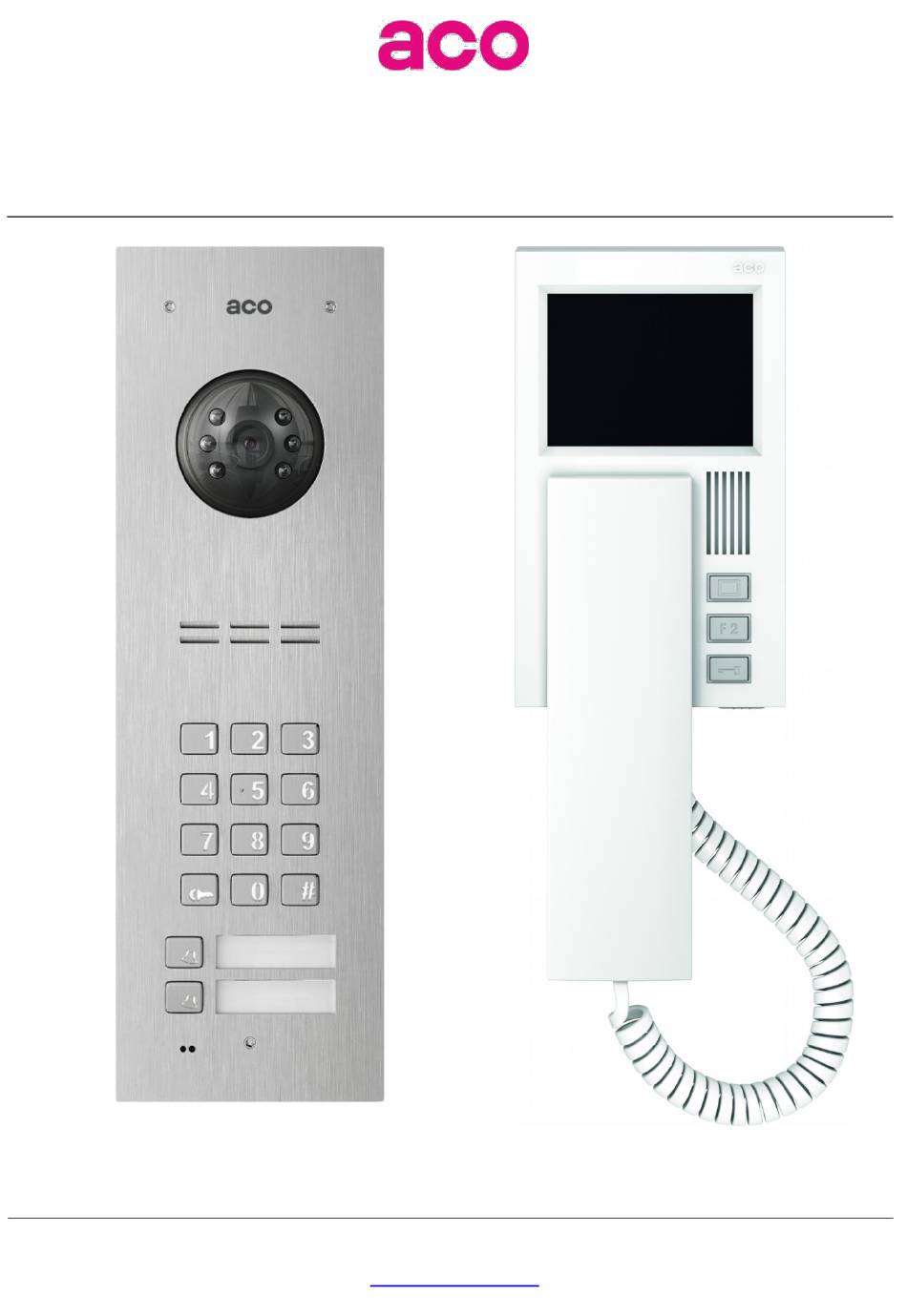

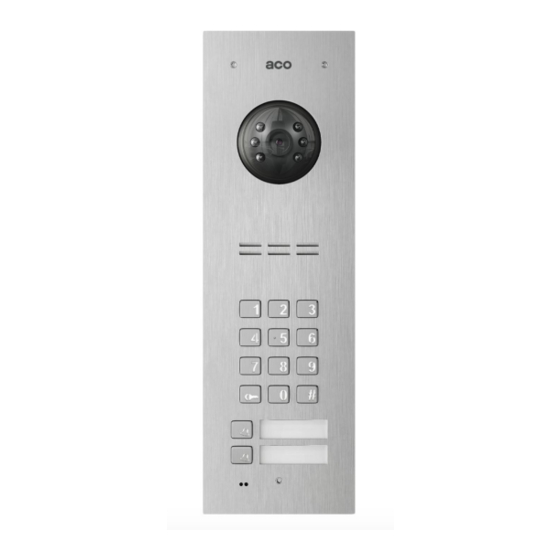

- Page 1 USER INSTRUCTION FOR - FAM-PV SERIES DIGITAL VIDEO DOOR ENTRY SYSTEM 62-002 Suchy Las, ul. Diamentowa 7, tel/fax 61 843 93 71 www.aco.com.pl...
- Page 2 TECHNICAL PARAMETERS Power supply: 15V ±10% DC Power consumption in standby mode: ~2.8W Power consumption of FAM-PV-2NPZS ACC panel: max. 350mA, without E-lock Number of proximity key fobs (version with built-in ACC): 192 key fobs Permitted load on E-lock output: 1A Front: stainless steel;...
- Page 3 Arrange the following cables in their maximum lengths to the panel: 2 wires x 1mm - power supply 2 wires x 0.75mm - to E-lock UTP (standard T568B) - bus, max. 70m - from the panel (or the last power supply unit), 300m in total - when using additional power supplies.
- Page 4 FAM-PV series panels (programming advanced functions, systems with greater number of panels, interconnection with other ACO systems: CDNP, Inspiro, and basic troubleshooting). All settings may also be changed using the FAM_P computer software.
