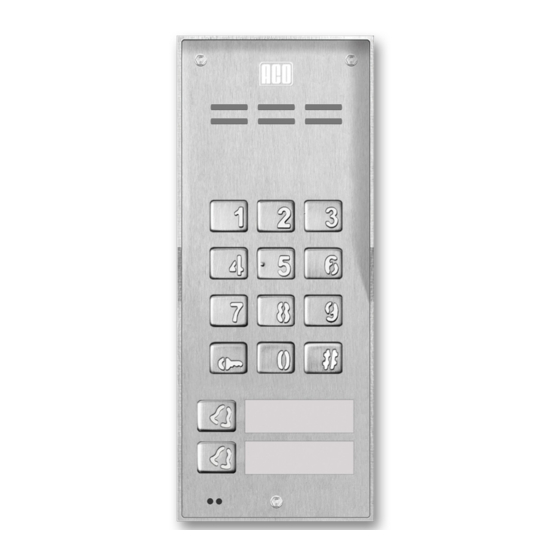

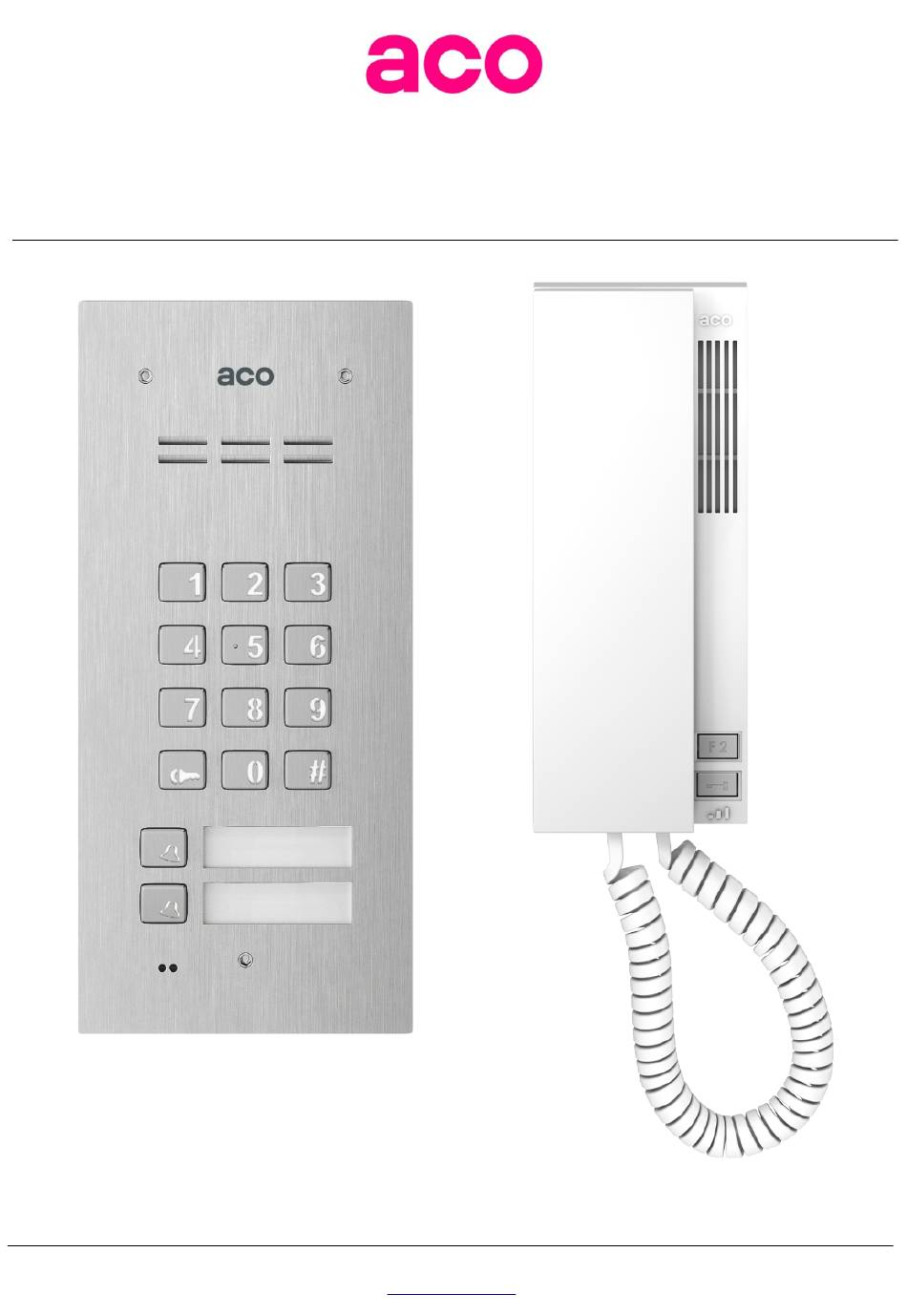

- Page 1 OPERATING MANUAL FOR THE FAM-P SERIES DIGITAL DOOR ENTRY PANEL ACO Sp. z o.o. sp. komandytowa, 62-002 Suchy Las, ul. Diamentowa 7, tel./ fax 61 843 93 72 www.aco.com.pl...
- Page 2 TECHNICAL PARAMETERS +0,5V −1,5 V Power supply: (11,5V ± 0,5V) AC or 15V Power consumption in stand-by mode: ~1,3W Power consumption of FAM-P-2NPZS: max. 250mA without electric lock Proximity key ring support (version with built-in ACC): 192 key rings ...
- Page 3 Connect the electric striker without a specific polarity freely to the "ELOCK" terminals using the electric striker. Reverse the panel settings and insert the jumper Z1 (available under the panel terminals). When working with the reversible electric striker, voltage appears on the "ELOCK" output depending on the power supply or transformer used - a suitable reversible electric striker should be used.
- Page 4 More possibilities of FAM-P series panels (programming of advanced functions, cooperation with more panels, connecting with other ACO systems, i.e. CDNP, Inspiro, and description of typical problems) can be found in the extended manual of FAM-P series panels available at www.support.aco.com.pl...
