Summary of Contents for ACO INSPIRO+VIDEO

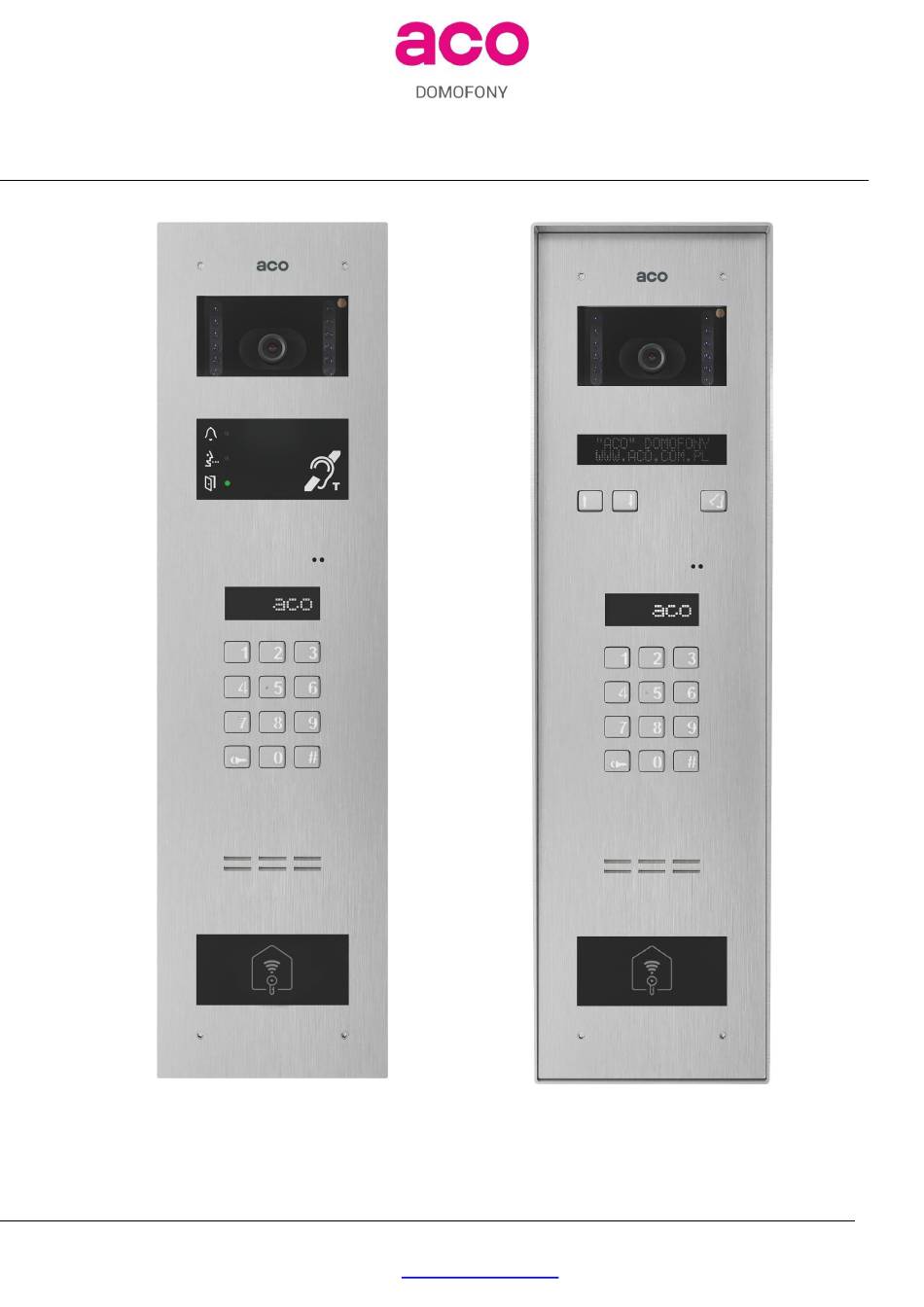

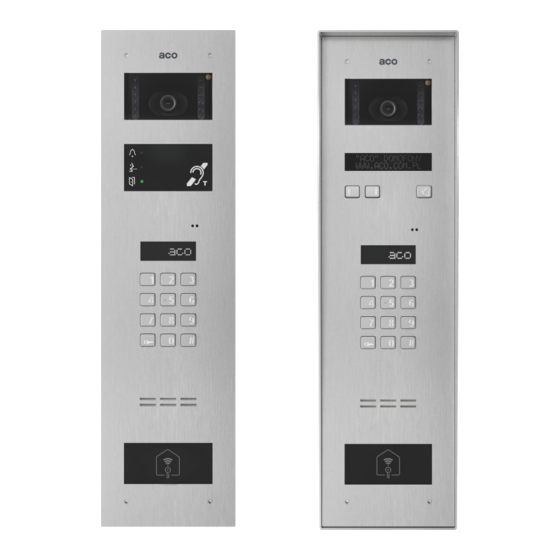

- Page 1 INSPIRO+ DIGITAL DOOR PHONE PANEL MANUAL 62-002 Suchy Las, ul. Diamentowa 7, tel./ fax +48 61 843 93 72 www.aco.com.pl...
- Page 2 (indicated by squeaking sounds); next, adjust the potmeter halfway between these points. ELECTRICAL PARAMETERS OF THE PANEL • Power supply: 13.5-15V DC (a 15V DC ACO unit is recommended) • Standby mode min. power consumption: ~1.6 W • Power load: max. 535 mA (not counting the electric strike) •...
- Page 3 PANEL CONNECTION DIAGRAM OPERATION When in standby, the display shows the “Intro” message (which reads “aco” by default). The “Intro” message contents are freely configurable. The default range of dialled numbers is 1 to 255, with each value mapped directly to the physical addresses configured in the inside units (the software configuration tool permits any dialled number range between 0 and 999999 and a free assignment of each number to the inside unit address, or to restrict the range of supported inside units).
- Page 4 . The panel can be interfaced with a PC laptop with an optional CDN-USB data cable (which is purchased separately). The www.aco.com.pl website Downloads section also includes the full operating manual for the CDNP7ACC and INSPIRO+, complete with a troubleshooting guide for most common problems.
