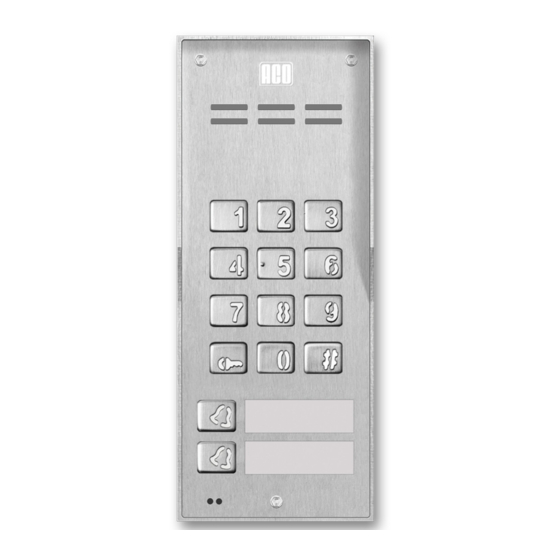

- Page 1 OPERATING MANUAL FOR DIGITAL DOOR ENTRY PANEL FAM-P FAM-P-xx v2.0 62-002 Suchy Las, ul. Diamentowa 7, tel./ fax +48 61 843 93 71 www.aco.com.pl...
- Page 2 TECHNICAL PARAMETERS +0,5 V −1,5 V Power supply: (12V ± 0,5V) AC or 15V Power consumption in stand-by mode: ~1W Power consumption of FAM-P-2NPZS: max. 200mA without electric lock Max. load of electric lock out: 1A ...
- Page 3 MOUNTING AND CONNECTING HANDSETS In order to mount the handset, open the enclosure (press the lower part of the handset “1” with screwdriver and open the front part of the enclosure “2”), through the whole “4” lead the cable and screw in the back of the handset using the holes “3”.
- Page 4 OPERATING THE PANEL turning on power supply of the panel every time you turn on the power, the panel will be beeping for 30 seconds. This function stabilizes conditions of handsets line and allows to set default codes and panel settings.
