USER INSTRUCTION FOR CDNP8 DIGITAL DOOR ENTRY SYSTEM

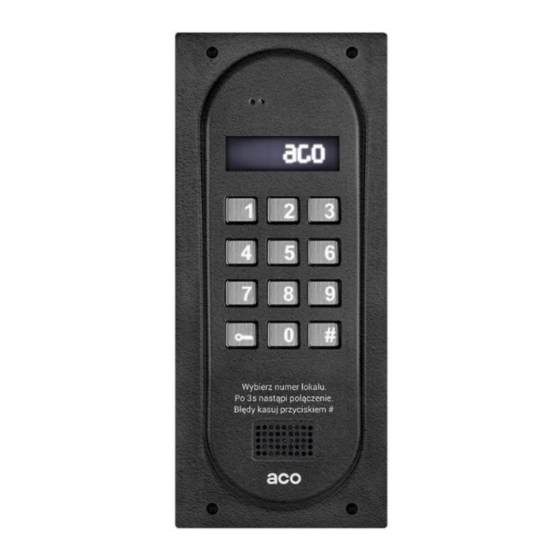

The illustration shows an example of the panel if expanded with modules that can be purchased separately.
Please note! External ACC modules are only suitable for the CDNP8 version without built-in ACC. A keyboard with embossed
Braille characters is also available as an option.
RULES FOR STORING WASTE ELECTRICAL EQUIPMENT
Waste electrical equipment must not be disposed of with other waste. It should be stored in places designated for this
purpose. For this purpose, please contact the responsible institutions or companies involved in waste recycling. -
Directive 2002/96/EC of 27.01.2003
62-002 Suchy Las, ul. Diamentowa 7, tel. / fax 61 843 93 72
www.aco.com.pl
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for ACO CDNP8
Summary of Contents for ACO CDNP8
- Page 1 The illustration shows an example of the panel if expanded with modules that can be purchased separately. Please note! External ACC modules are only suitable for the CDNP8 version without built-in ACC. A keyboard with embossed Braille characters is also available as an option.
- Page 2 INSTALLATION OF THE PANEL Install the panel on building wall (vestibule, sheltered wall, east wall, etc.) so that to minimise the effect of adverse weather conditions, especially water. Recommend installation height of the control panel is approximately 1.35 m. The frame of the panel is installed with rawlplugs or appropriate screws, in addition the frame for flush mounting is installed with plaster in wall cavity Lead the wires through the holes in the base.
- Page 3 “drops”, the panel speaker volume and/or microphone sensitivity should be reduced. OPERATION In standby the display shows "Intro", which can be freely changed (default into message: "aco"). The pre-set number range is 1 to 255, which corresponds to the physical addresses set in the receivers. Use the installer menu (program P9) to set the range of supported receivers in the facility (it is also possible to change dialing of numbers from the keypad from 1 to 999, maintaining the continuity of physical addresses from 1 to 255).
- Page 4 NOTE! Full configuration of the control panel is also possible using a PC software ("CDNP") which can be downloaded free of charge from www.aco.com.pl. An optional CDN-USB cable is required to connect the control panel to a PC, which must be purchased separately. Downloaded from the website can also be the proximity key fob management software ("ACC_v3x") and an extended manual for the CDNP control panel,...
