ROBOTICS
2.2.3

Service Lock

Service Lock
No.
①
NOTE: If either lock is rotated out of the Unlocked position, the electrical brakes are automatically
locked as well. Both LOCK ALL buttons are therefore lit to indicate that the device is blocked. For
this reason it is necessary to unlock the electrical brakes using the LOCK ALL buttons after
releasing the Service Locks.
The operating condition of the Service Locks is indicated by the arrow on the rotary knob. Make
sure you always turn both knobs fully into their mechanical end-positions, indicated by LOCKED
and UNLOCKED.
Hardware User Guide Rev. 1.0 Robotics Ver. 2.1
①
Component
Service Lock

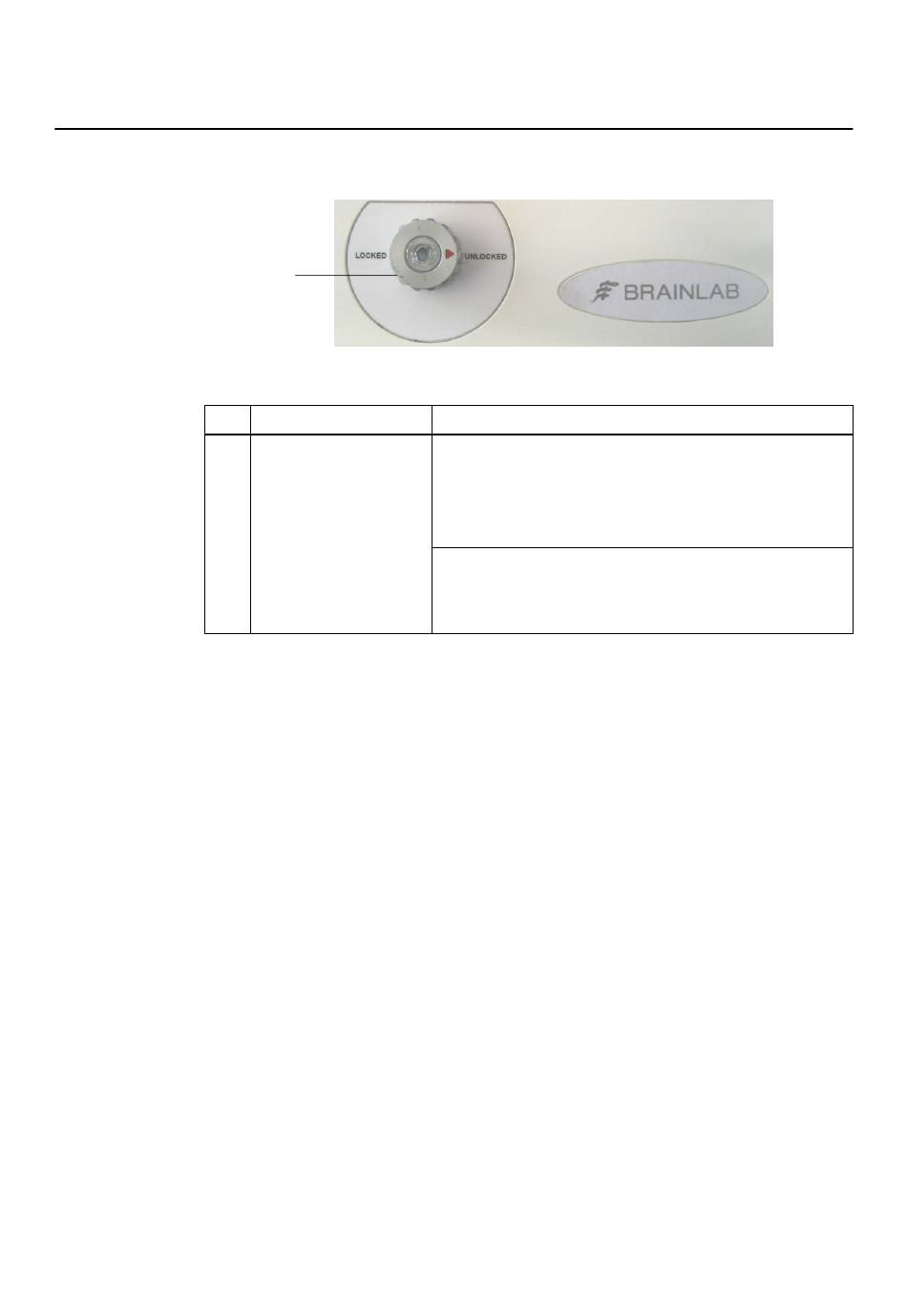

Figure 8
Function/Usage
The Service Lock is a steady bolt that locks the lifting me-
chanics in the home position.
To engage the Service Lock:
1. Move the couch top to home position.
2. Rotate the Service Lock knobs to the locked position
Locking the lifting-mechanics is only effective if both knobs
are completely turned to the Locked position.
Releasing the lifting-mechanics is only effective is both knobs
are turned back to the Unlocked position.
29
