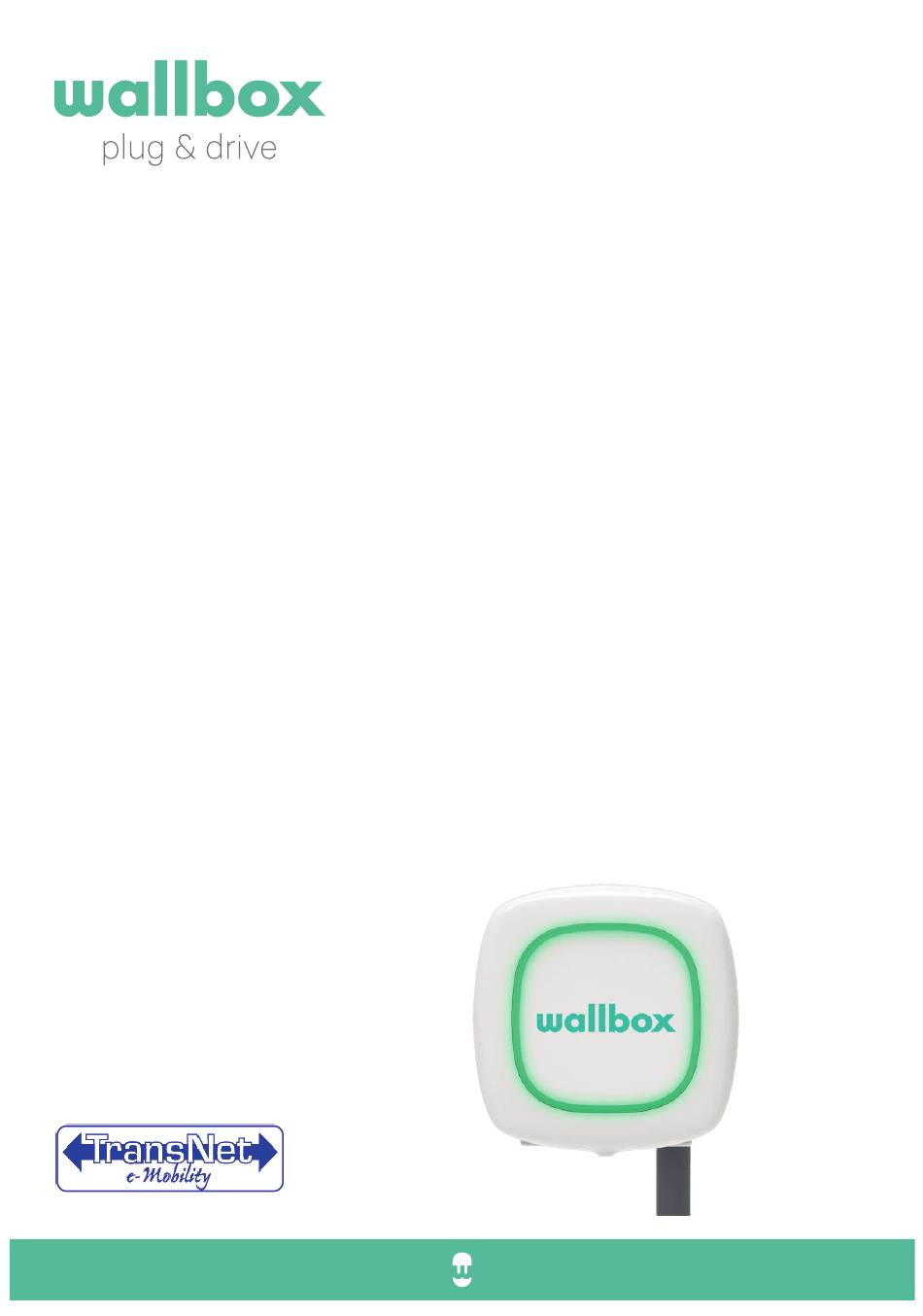

- Page 1 Pulsar Installation guide Guía de instalación Installationsanleitung Guide d’installation Installatiegids Guida per I’installazione Guia de instalacão Installasjonsveiledning Asennusopas Distributed by...
-
Page 2: Table Of Contents
Wallbox device. Any resulting damage from such actions is excluded from the warranty. The installation of the Wallbox device must be performed by a qualified electrician in accordance with the perceptive regulation. The information provided in this Installation Guide does not relieve the user of responsibility to follow all norms and standards or local regulations that may apply. -
Page 3: Safety Instructions
• Wallbox chargers can only be used under the operating parameters specified and within the normal ambient conditions described in the Product Description. • Do not use your Wallbox charger under adverse climatic conditions that could affect the vehicle or the Wallbox device. Do not open the cover in the rain. -
Page 4: Product Description

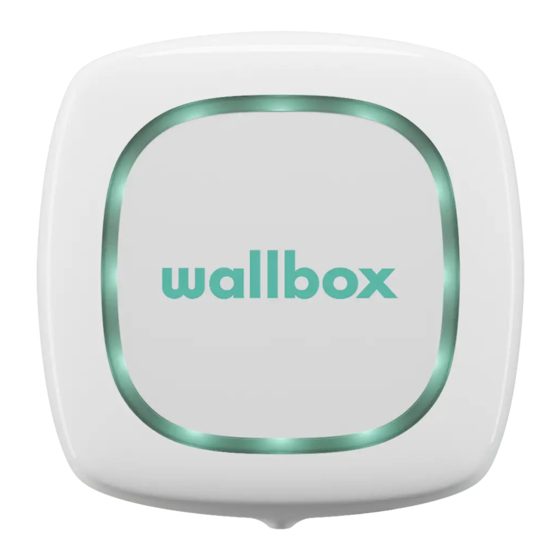

Wallbox Pulsar is a practical and intelligent charging system for electric vehicles and plug-in hybrids. Pulsar's design is the most compact on the market and features the most advanced technology to provide the maximum charging performance for the vehicle. It adapts to any installation, both private garages and community or company parking. - Page 5 M - 7 m 2 - Type 2 2 - 7.4kW 3 - 11kW 4 - 22kW Your Wallbox box should contain the following: Components Mounting parts • 3x 6.3x40mm Screws • Wallbox Pulsar with charging cable • Plug holder •...
-
Page 6: Installation Instructions
Installation Instructions The installation of the Wallbox should be undertaken by a qualified electrician in accordance with the applicable standards and regulations. Preferably the installation should be undertaken by a Wallbox trained installer. Local regulations on electrical installations, fire prevention, and accidents as well as emergency exits implemented from installation must be taken into account. -
Page 7: Dimensions And Positioning Of The Device
3-A. Otherwise go to section 3-B. 3-A. REAR CONNECTION • Step 3-A.1: In the back of your Wallbox an area with a thinner wall can be found; use a cutter or any sharp tool and make an incision for entry of the cable. - Page 8 3-B. LOWER CONNECTION (I-8. 1 , I-8.2 and I-8.3) • Step 3-B.1: Proceed to fix the charger to the wall. Insert the screws in the marked positions, starting at the top and following a clockwise direction (I-8.1). Check that your Wallbox Pulsar is firmly fixed to the wall.
-
Page 9: Startup
• Make sure that the power supply is turned off before you start cleaning your charger. • If you want to clean your Wallbox we recommend that you use a soft, dry or damp cloth. Do not use a spray or direct water stream to clean your Wallbox charger. -
Page 10: Limited Warranty
If you believe your product is defective, contact Wallbox for instructions on where to send or bring it for repair. www.wallbox.com service@wallbox.com... - Page 11 EDIT FOR PULSAR WBPL-0-2-4-0-001-A plug & dri ve 79,50 WALL CABLE HOLE PULSAR INSTALLATION GUIDE POSITION CURRENT (A)
- Page 12 I-6. 1 I-6.2 OPENING TOOL IMAGE I-8. 1...
- Page 13 I-8.2 I-8.3 I-10 Distributed by e-Mobility Division, TransNet NZ Limited 78 Cryers Road East Tamaki Auckland, 2013 NEW ZEALAND +64 9 274 3340 | ev@transnet.co.nz | www.evc.co.nz...
