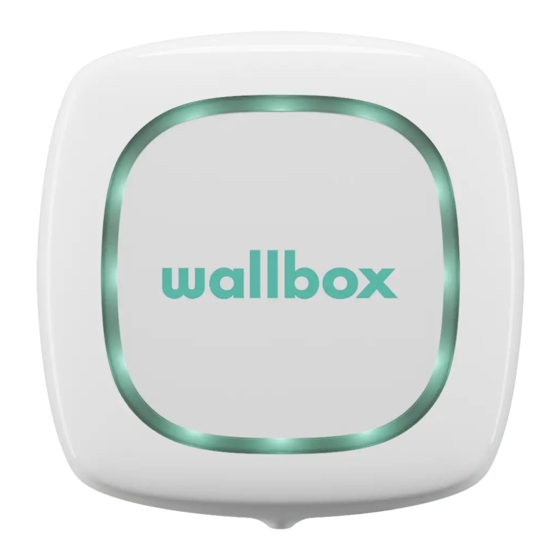

- Page 1 PULSAR Service Manual...
- Page 2 INDEX Important Information Required Materials Plastic Cover Replacement Removing the Old plastic cover Attaching the New plastic cover Control board and Plastic Cover Replacement Removing the Old Control board and the Plastic cover Attaching the New Control board and the Plastic cover Power board Replacement Removing the Old Power Board Attaching the New Power Board...
- Page 3 If you believe your product is defective, contact Wallbox for instructions on where to send or bring it for repair. EN Disposal Advice In accordance to the directive 2012/19/EC, at the end of its useful life, the product should not be disposed off as urban waste.
-
Page 4: Required Materials
Required Materials Torx T9 Star Pulsar Spare part to be replaced: Screwdriver Screwdriver opening tool Control board + Cover, Power board, Power Supply Unit... - Page 5 Plastic Cover Replacement The front plastic cover of Pulsar is replaceable if damaged. The front plastic cover encloses the control board. However, if the control board is working properly, only the front plastic cover shall be replaced. Removing the old plastic cover Turn off the power supply to the charger.
- Page 6 Attaching the new plastic cover Place the Control board and the LED Halo on Connect the ribbon cable to the connector the new front plastic cover and screw the 12 on the Control board and close the charger. screws that were removed while detaching the control board and LED Halo from the cover.
- Page 7 Control board and Plastic Cover Replacement The Control board of the Pulsar charger is enclosed within the front plastic cover and LED Halo of the charger. The Control board and front plastic cover of the Pulsar charger, if malfunctioning or damaged can be...
- Page 8 Attaching the new Control board and the Plastic cover Carefully attach the communications cable to Position the top clip points of the cover on the connector on the Control board and close the charger body. Clip first the lateral clips to the charger.
-
Page 9: Power Board Replacement
Power Board Replacement The Power board of the Pulsar charger is enclosed within the plastic body of the charger. The Power board, if malfunctioning or damaged can be replaced by performing the following steps: Removing the old Power board Turn off the power supply to the charger. - Page 10 Using a screwdriver remove the control pilot Using a screwdriver remove the power output cable from the connector. cables. Keep the old Power board aside for return or Unscrew the four screws that hold the Power disposal. board to the body of the charger. Save them for later use.
- Page 11 Attaching the new Power board Insert and tighten the four screws to secure the Power Insert the power output cables in their connectors board to the charger’s body. and tighten the screws one by one in a sorted manner. Insert the control pilot cable in the connector Insert the cables that are connected to the by pressing the connector levers with a Power Supply unit.
- Page 12 Position the top clip points of the front Insert and then tighten the Torx screw in the plastic cover on the charger’s body. Clip first bottom of the charger to secure the front the lateral clips to the charger’s body and plastic cover.
-
Page 13: Power Supply Unit
Power Supply Unit The Power Supply unit for Pulsar can be replaced if damaged. The Power Supply unit is enclosed within the charger’s body and connected to the Power board. Removing the old Power Supply Unit Turn off the power supply to the charger. - Page 14 Using a screwdriver remove the control pilot Unscrew the four screws that hold the power cable from the connector. board to the body of the charger. Save them for later use. Keep the Power board aside. Keep the Power Supply Unit aside for return Unscrew the four screws that hold the Power or disposal.
- Page 15 Attaching the new Power Supply Unit Get the new Power Supply unit and place it in on the Insert and tighten the four screws to secure the charger’s body. Power Supply unit to the charger’s body. Place the Power board on the charger’s Insert the power output cables in their body and secure it to the chargers body by connectors and tighten the screws one by...
- Page 16 Insert the power input cables in their Get the front plastic cover and connect the connectors and tighten the screws one by communications cable to the Power board. one in a sorted manner. Check that the power input cables are fixed properly. Position the top clip points of the front plastic Insert and then tighten the Torx screw in the cover on the charger’s body.
- Page 17 +353 14 854 347 +351 308 801 440 +46 852503203 Deutschland Italia Österreich United Kingdom +49 69 96759775 +39 011 1962 2461 +43 720882116 +44 20 3318 3779 Nederland España +31 20 808 0847 +34 932 20 95 75 www.wallbox.com service@wallbox.com...
