The SMxxTAT2SA Smart Managed GbE PoE+ switch is the next-
generation Ethernet switch offering powerful L2 features with better
functionality and usability. Note: See the SMxxTAT2SA Install Guide for
important Cautions and Warnings, as well as Features, Specifications,
Front & Back Panel, LEDs, Mode/Reset button, Installation, Package
Contents, and Troubleshooting, Warranty, Support & Compliance information.

Front and Back Panels

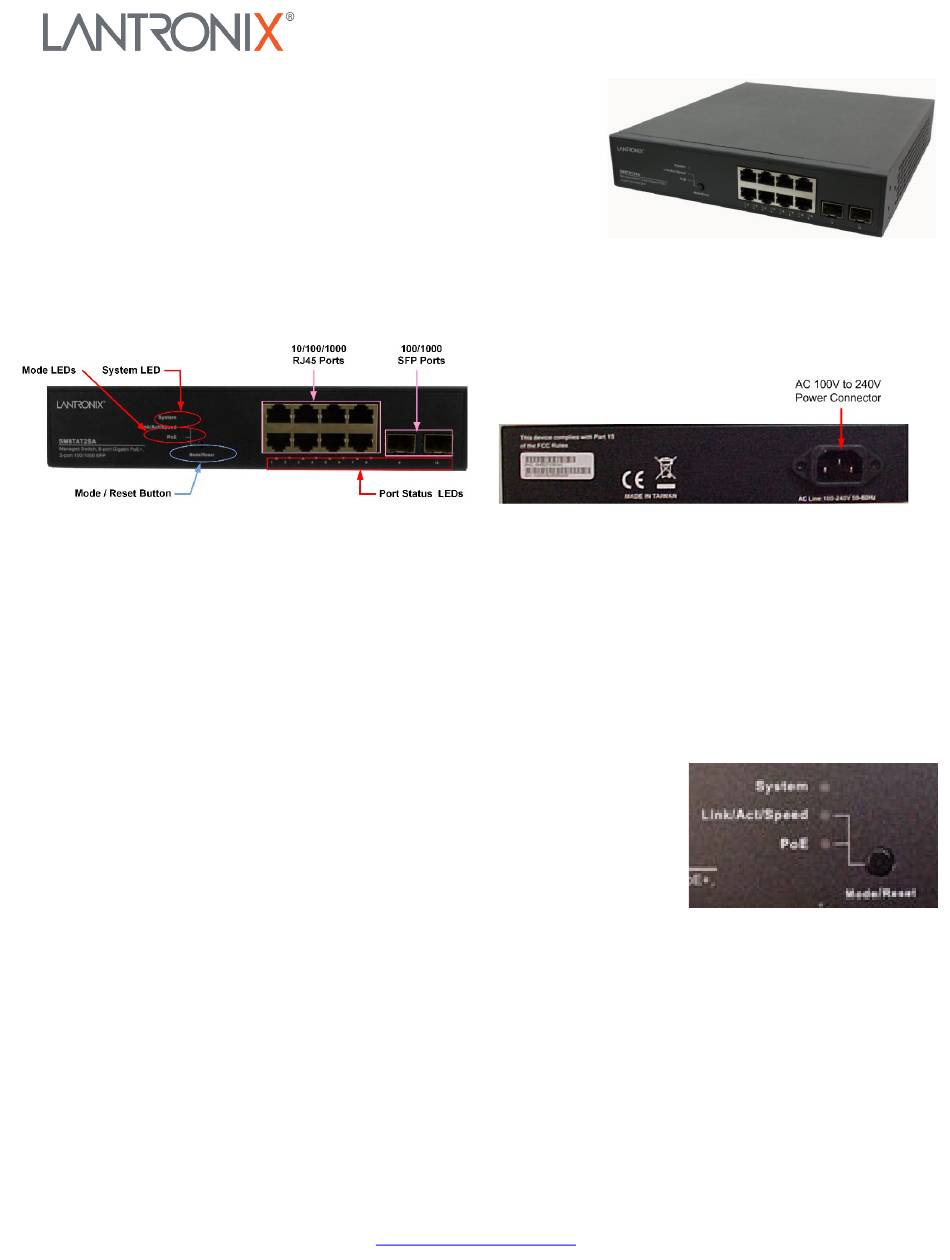

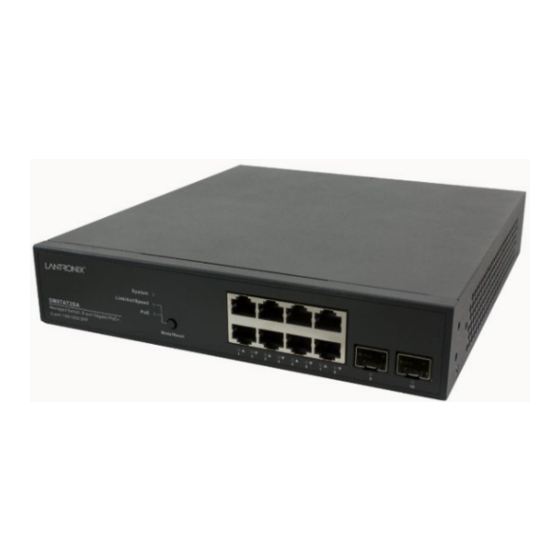

The SM8TAT2SA front and back panels are shown below.

Mode/Reset Button

By pressing the Mode/Reset button for certain period of time, you can:
Change Port Status LED Mode: to read port status correctly in two modes (Link/Act/Speed mode or PoE mode).
Reset the Switch to reboot and get the switch back to the previously saved configuration settings.
Restore the Switch to Factory Defaults: press and hold the Reset button until all port LEDs light. This sets the
switch back to its factory default IP address; log back in to display the First Time Wizard.

LED Descriptions

The LEDs on the front panel provide switch status checking and monitoring. The three types of LEDs are:
System LED:
Indicates if the switch is powered up correctly, or if there is a
system alarm triggered for troubleshooting.
Mode LEDs: Indicates the mode of all ports on the switch. You can press the
Mode/Reset button sequentially to switch between the two different modes
(Link/Activity/Speed mode and PoE mode).
Port Status LEDs: Indicates the current status of each port. You can check these
LEDs to understand the port status in different modes, after changing the mode by pressing the Mode/Reset
button.

Switch Installation

Desk, Shelf, or Rack Mount: See the Install Guide. Caution: The switch is an indoor device. If used with outdoor
devices, using a surge protector / suppressor is recommended. 802.3at compliant in Environment A when using
an isolated power supply. For 802.3at Environment B applications, see the Install Guide.
Install SFP Modules: You can install or remove SFP modules without having to power off the switch. 1. Insert the
module into the SFP port. 2. Press firmly so the SFP module seats into the connector. See the Install Guide.
Connect the AC Power Cord: 1. Connect the AC power cord to the switch AC power receptacle. 2. Connect the
other end of the AC power cord to an AC power outlet. 3. If the SYS LED is ON, power connection is correct.
33715 Rev. E https://www.lantronix.com Page 1 of 2
