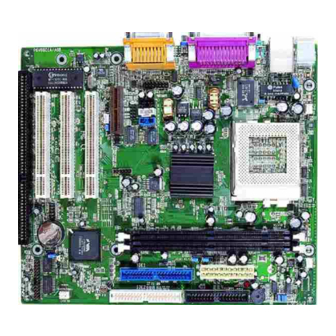

QDI Advance 6T Manual

Hide thumbs Also See for Advance 6T:

Advertisement

Quick Links

Download this manual
All manuals and user guides at all-guides.com

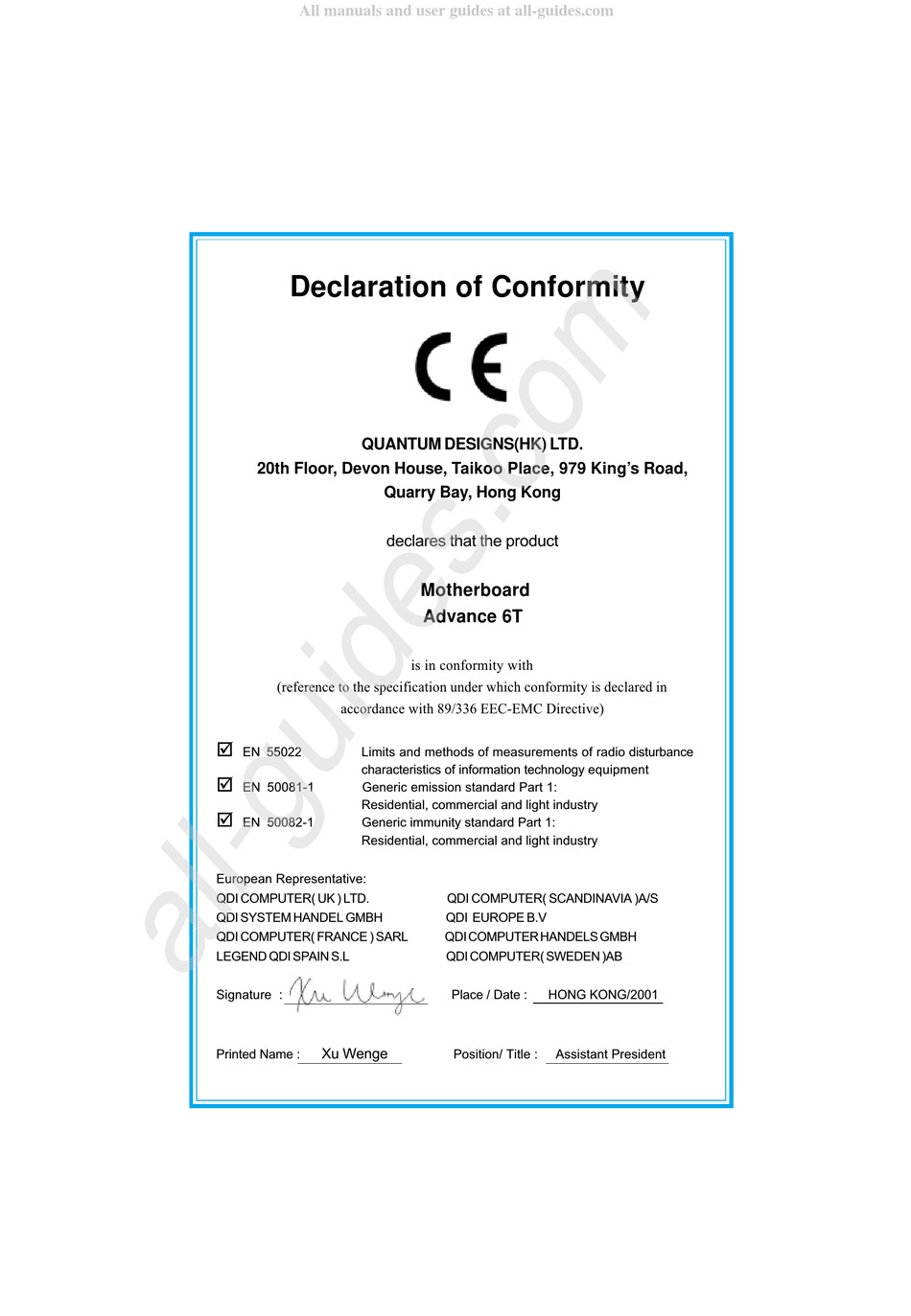

Declaration of Conformity
