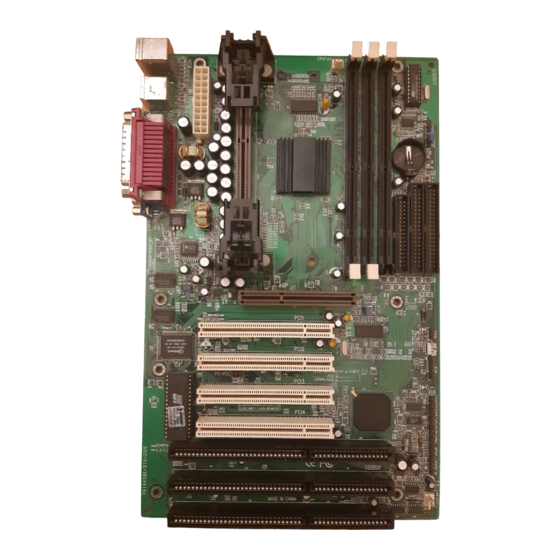

QDI BrillianX 1S/2000 Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

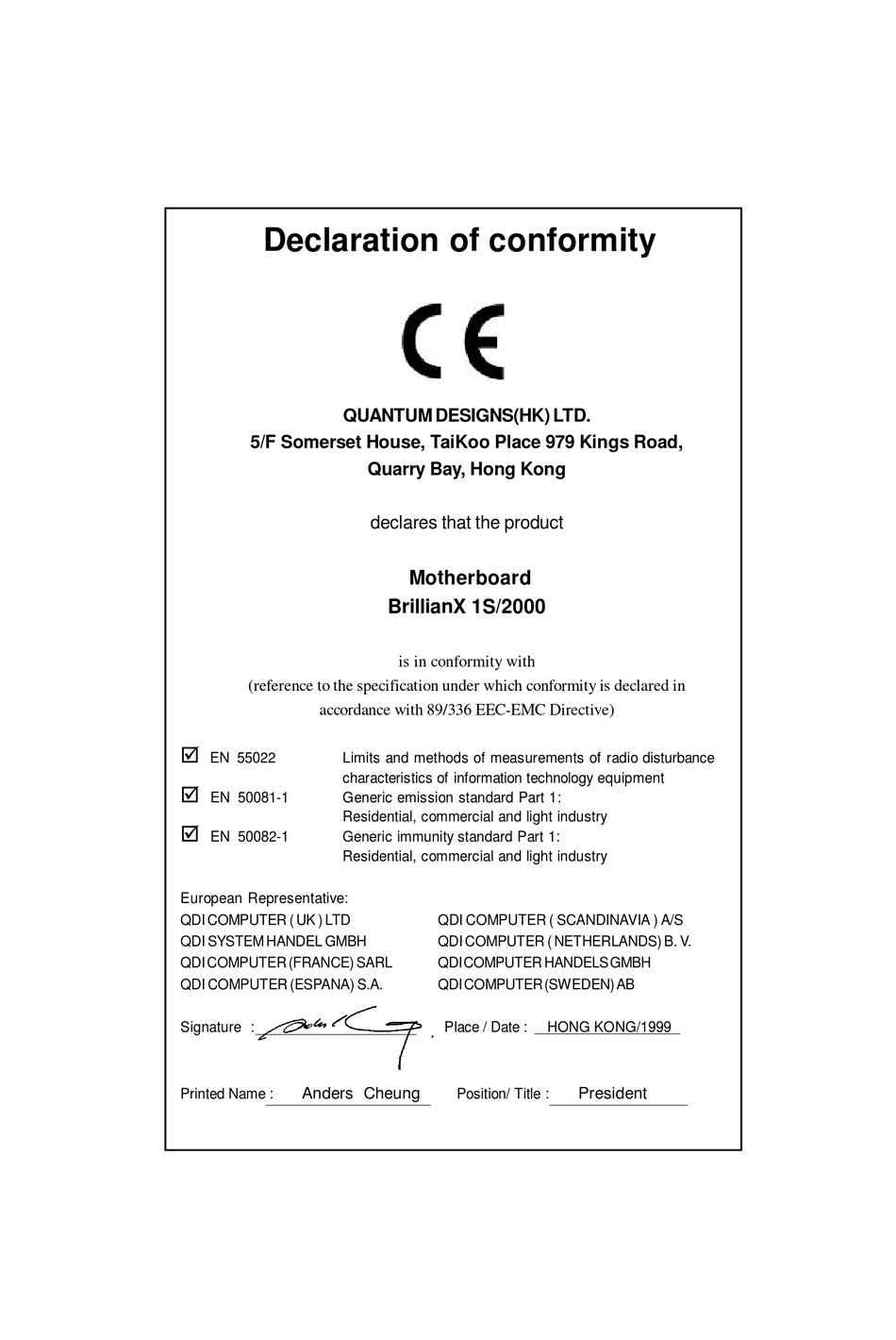

Declaration of conformity
QUANTUM DESIGNS(HK) LTD.
5/F Somerset House, TaiKoo Place 979 Kings Road,
(reference to the specification under which conformity is declared in
accordance with 89/336 EEC-EMC Directive)
þ
EN 55022
Limits and methods of measurements of radio disturbance
characteristics of information technology equipment
þ
EN 50081-1
Generic emission standard Part 1:
Residential, commercial and light industry
þ
EN 50082-1
Generic immunity standard Part 1:
Residential, commercial and light industry
European Representative:
QDI COMPUTER ( UK ) LTD
QDI SYSTEM HANDEL GMBH
QDI COMPUTER (FRANCE) SARL
QDI COMPUTER (ESPANA) S.A.
Signature :
Anders Cheung
Printed Name :
Quarry Bay, Hong Kong
declares that the product
Motherboard
BrillianX 1S/2000
is in conformity with
QDI COMPUTER ( SCANDINAVIA ) A/S
QDI COMPUTER ( NETHERLANDS) B. V.
QDI COMPUTER HANDELS GMBH
QDI COMPUTER (SWEDEN) AB
Place / Date :
Position/ Title :
HONG KONG/1999
President

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BrillianX 1S/2000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for QDI BrillianX 1S/2000

Summary of Contents for QDI BrillianX 1S/2000

  • Page 1 EN 50082-1 Generic immunity standard Part 1: Residential, commercial and light industry European Representative: QDI COMPUTER ( UK ) LTD QDI COMPUTER ( SCANDINAVIA ) A/S QDI SYSTEM HANDEL GMBH QDI COMPUTER ( NETHERLANDS) B. V. QDI COMPUTER (FRANCE) SARL QDI COMPUTER HANDELS GMBH QDI COMPUTER (ESPANA) S.A.
  • Page 2 Declaration of conformity Trade Name: QDI Computer ( U. S . A. ) Inc. Model Name: BrilliantX 1S/2000 Responsible Party: QDI Computer ( U. S. A.) Inc. Address: 41456 Christy Street Fremont, CA 94538 Telephone: (510) 668-4933 Facsimile: (510) 668-4966...

  • Page 3: Table Of Contents

    C O N T E N T S SpeedEasy Quick Setup(English) ............1 SpeedEasy Schnell-Installation(Deutsch) ..........3 Fácil Y Veloz Rápida Instalación(Español) ........... 5 Facilité de vitesse Initialisation(Francais) ..........7 Setup Della Scheda Speedeasy(Italiano) ..........9 SpeedEasy ¿ ì Ë Ù ° ² × ° Ö ¸ Ä Ï ( Ö Ð Î Ä · ± Ì å ) ........... 11 SpeedEasy ¿...
  • Page 4 SecurityEasy Setup ................46 Password Setting ................47 IDE HDD Auto Detection ..............48 Boot with BIOS defaults ..............49 Appendix A QDI Motherboard Utility CD-ROM ...... 51 Appendix B Processor Installation Procedures ....53 Appendix C Boot Logo ............56...

  • Page 5: Speedeasy Quick Setup(English)

    Note: If you do not set the CPU speed, your system will run at the default setting ( 200MHz for processor with 100MHz host bus speed, 133MHz for processor with 66MHz host bus speed). 5. Save and exit BIOS Setup, your system will now boot successfully. Manual BrillianX 1S/2000...

  • Page 6: Speedeasy Schnell-Installation(Deutsch)

    The processor speed can be manually selected on the “SpeedEasy CPU SETUP” menu screen. Warning: Dot not set CPU frequency higher than its working frequency. If you do, we will not be responsible for any damage caused. Manual BrillianX 1S/2000...
  • Page 7 Standardwerten für die CPU. (200MHz für den CPU mit 100MHz Host Bus Speed, 133MHz für den CPU mit 66MHz Host Bus Speed). 5. Speichern Sie die Einstellungen und verlassen Sie das BIOS, um die auvor eingestellte Taktfrequenz zu aktivieren. Manual BrillianX 1S/2000...

  • Page 8: Fácil Y Veloz Rápida Instalación(Español)

    “jumper setting”. Sie können manuell die Geschwindigkeit des CPU innerhalb des“SpeedEasy CPU SETUP” einstellen warnung: ‰ Bitte Setzen Sie die Taktfrequenz dor CPU nicht höber als die tats chliche freigegebene Taktfrequenz, ansonsten Kann QDI für rechtliche Anspruche nicht herangezogen werden. Manual BrillianX 1S/2000...
  • Page 9 (200MHz para CPU con velocidad de bus de 100MHz, 133MHz para CPU con velocidad de bus de 66MHz ) 5. Salve y salga de BIOS, luego su sistema arrancará a la velocidad por Ud. seleccionada. Manual BrillianX 1S/2000...

  • Page 10: Facilité De Vitesse Initialisation(Francais)

    Ud. puede seleccionar manulmente la velocidad de CPU en el menu “SpeedEasy CPU SETUP”. Aviso No es recommendable selecclonar una frecuencia de trabajo super•or a la cual esta dise¤ada su CPU. De otra manera, no seremos responsables de los da¤os que esto pudiera ocasionar. Manual BrillianX 1S/2000...
  • Page 11 Ne vous laissez pas aller à installer une fr‚uence à l’ unité centrale sup‚ ieure à sa fr‚uence de travail. Sinon nous d‚linerons toutes responsabilit‚s en ce qui concerne les d‚ gƒ s qui en r‚ sulteraient. Manual BrillianX 1S/2000...

  • Page 12: Setup Della Scheda Speedeasy(Italiano)

    (Microprocessore da 200MHz con velocità di “host bus” da 100MHz e microprocessore da 133MHz con velocità di “host bus” da 66MHz). 5. Salvate e uscite dal Setup BIOS, e fate ripartire il computer. *CPU= microprocessore Manual BrillianX 1S/2000...
  • Page 13 (dell’ accoppiamento). Potete selezionare manualmente la velocità del microprocessore sulla schermata “SpeedEasy CPU SETUP”. Avvertenza: non dovete regolare la frequenza del microprocessore pi— alta di quella predisposa, altrimenti la casa produttrice non si farà carico di eventuali danni al micorprocessore. Manual BrillianX 1S/2000...

  • Page 14: Speedeasy ¿ Ì Ë Ù ° ² × ° Ö ¸ Ä Ï ( Ö Ð Î Ä · ± Ì Å )

    5. ´ æ ´ ¢ É è ¶ ¨ Ö µ Í Ë ³ ö BIOS Ï µ Í ³ ¾ Í ¿ É Ò Ô ° ´ Ä ã É è ¶ ¨ µ Ä Ë Ù ¶ È Ô Ë Ð Ð Á Ë Manual BrillianX 1S/2000...
  • Page 15 Ç ë Î ð ½ « Ö Ð Ñ ë ´ ¦ À í Æ ÷ µ Ä Æ µ Â Ê µ ÷ ½ Ú Ö Á ¸ ß ì ¶ Æ ä Õ ý ³ £ ¹ ¤ × ÷ Æ µ Â Ê · ñ Ô ò ± ¾ ¹ « Ë ¾ ½ « ² » » á ¸ º Ô ð Ó É ´ Ë ¶ ø ² ú É ú µ Ä È Î º Î Ë ð » Ù Manual BrillianX 1S/2000...

  • Page 16: Speedeasy ¿ Ì Ë Ù ° ² × ° Ö ¸ Ä Ï ( Ö Ð Î Ä ¼ Ò Ì Å )

    5. ´ æ ´ ¢ É è ¶ ¨ Ö µ Í Ë ³ ö BIOS Ï µ Í ³ ¾ Í ¿ É Ò Ô ° ´ Ä ã É è ¶ ¨ µ Ä Ë Ù ¶ È Ô Ë Ð Ð Á Ë Manual BrillianX 1S/2000...
  • Page 17 Ç ë Î ð ½ « Ö Ð Ñ ë ´ ¦ À í Æ ÷ µ Ä Æ µ Â Ê µ ÷ ½ Ú Ö Á ¸ ß ì ¶ Æ ä Õ ý ³ £ ¹ ¤ × ÷ Æ µ Â Ê · ñ Ô ò ± ¾ ¹ « Ë ¾ ½ « ² » » á ¸ º Ô ð Ó É ´ Ë ¶ ø ² ú É ú µ Ä È Î º Î Ë ð » Ù Manual BrillianX 1S/2000...

  • Page 18: Introduction

    ACPI specification. With the everlasting innovations of QDI such as SpeedEasy, LogoEasy and SecurityEasy technolo- gies, the system BIOS is protected from being attacked by severe virus such as CIH virus, so you get a powerful corporate system.
  • Page 19 Supports auto fan off when the system enters suspend mode. On-board LM80 supports system monitoring (monitors system temperature,voltages, chassis intrusion and fan speed) (manufacturing option). On-board MAXIM1617 monitors the CPU temperature. (manufacturing option) ® Provides management application such as ManageEasy and LDCM(LANDesk Client Manager) (manufacturing option). Manual BrillianX 1S/2000...
  • Page 20 Supports IDE CD-ROM or SCSI boot up. Green function Supports ACPI (Advanced Configuration and Power Interface) and ODPM (OS Directed Power Management). Supports three green modes: Doze, Standby and Suspend. Expansion slots 3 ISA slots and 4 PCI slots. 1 AGP Slot Manual BrillianX 1S/2000...
  • Page 21 -- This page is intentionally left blank -- Manual BrillianX 1S/2000...

  • Page 22: Installation Instructions

    You can enable/disable them and choose the IRQ or I/O address in “Integrated Peripherals” from AWARD BIOS SETUP. Parallel Port UART2 UART1 Manual BrillianX 1S/2000...

  • Page 23: Atx Power Supply Connector&Power Switch(Power)

    When the system is in soft power-down status, the LED glows dimly. When the system is powered up, the LED is on. Key-Lock Connector (KEY_L) The connector can be connected to the keyboard lock switch on the case for locking the keyboard. Manual BrillianX 1S/2000...

  • Page 24: Green Led Connector (Green_Led)

    Infrared Header (IrDA) This connector supports wireless transmitting and receiving. If using this function, set ‘ Serial Port 2 Mode’ to IrDA or ASKIR and configure the settings from the ‘ INTEGRATED PERIPHERALS’ section of the BIOS. IRRX IRTX Manual BrillianX 1S/2000...

  • Page 25: Fan Connector(Cpufan&Chsfan)

    “Resume by Ring” to Enabled in the “POWER MANAGEMENT SETUP” section of the BIOS. Save & exit, then boot the operating system once to make sure this function takes effect. Signal for waking up (active low) +5V standby Manual BrillianX 1S/2000...

  • Page 26: Chassis Security Switch(Chssec)

    PCI 1 First PCI slot. PCI 2 Second PCI slot. PCI 3 Third PCI slot. PCI 4 Fourth PCI slot. IDE 1 Primary IDE port. IDE 2 Secondary IDE port. FLOPPY Floppy Drive Port. Accelerated Graphics Port Manual BrillianX 1S/2000...

  • Page 27: Jumper Settings

    The only way to power up the system is to enter the correct password. If you forget the password, clear CMOS and set it again. Refer to BIOS descrip- tion on page 43 for detailed information. Manual BrillianX 1S/2000...

  • Page 28: Bios Write Protection Jumper(Jav)

    DMI information impossible. Therefore, set JAV as opened when changing the system hardware configuration, or the error message “Unkown Flash Type” will be dis- played on the screen, and DMI information update will be fail. Refer to page 35 for related BIOS setting. Manual BrillianX 1S/2000...

  • Page 29: Overclocking Jumper Setting(Jfsb1)

    DRAMs installed. Possible SDRAM DIMM memory sizes are 8MB, 16MB, 32MB, 64MB, 128MB in each DIMM socket. Possible EDO DIMM memory sizes are 8MB, 16MB, 32MB, 64MB, 128MB, 256MB in each DIMM socket. Manual BrillianX 1S/2000...

  • Page 30: Securityeasy

    BIOS Setup. SecurityEasy The BrillianX 1S/2000 provides additional SecurityEasy function to protect the system from unauthorized entry or use. There are two ways to enter the lock status. Push once the button connected to the two-pin header SLEEP after enabling the lock function in BIOS Setup.
  • Page 31 -- This page is intentionally left blank -- Manual BrillianX 1S/2000...

  • Page 32: Bios Description

    1. Create a bootable system floppy diskette by typing Format A:/s from the DOS prompt under DOS6.xx or W indows 9x environment. 2. Copy AWDFLASH.EXE (version>7.07) from the directory \Utility located on QDI Mainboard Utility CD onto your new bootable diskette.

  • Page 33: Entering Setup

    The basic CMOS settings included in ‘ Standard CMOS Setup’ are Date, Time, Hard Disk Use the arrow keys to highlight Drive Types, Floppy Disk Drive Types, and VGA etc. the item, then use the <PgUp> or <PgDn> keys to select the value you want in each item. Manual BrillianX 1S/2000...
  • Page 34 VGA, SEGA, SVGA, or PGA monitor adapters. CGA 40 Color Graphic Adapter, powering up in 40 column mode. CGA 80 Color Graphic Adapter, powering up in 80 column mode. MONO Monochrome adapter, including high resolution monochrome adapters. Manual BrillianX 1S/2000...
  • Page 35 POST. Other Memory This is the memory that can be used for different applications. Shadow RAM is most used in this area. Total Memory Total memory of the system equals the sum of the above memory. Manual BrillianX 1S/2000...

  • Page 36: Award Bios Description

    Core Frequency to System Bus frequency “ x2.5, x3, x3.5, x4, x4.5, x5, x5.5, x6, x6.5, x7,x7.5, x8.” . Warning: Do not set CPU frequency higher than its working frequency. If you do, we will not be responsible for any damages caused. Manual BrillianX 1S/2000...

  • Page 37: Bios Features Setup

    Boot from LAN is ahead of any boot sequence First selection (LAN Adapter must support this function). Disabled Does not boot from LAN first. Boot Sequence C,A,SCSI,... Any search sequency can be chosen for booting C,CDROM,A LS/ZIP, C Manual BrillianX 1S/2000...
  • Page 38 Note:Enabling this item can protect the system BIOS from being attacked by severe virus such as CIH. Therefore disable this item only when wanting to flash BIOS, afterwards set this item as Enabled (Default). Disabled Disabling this item allows you to upgrade the BIOS. Manual BrillianX 1S/2000...

  • Page 39: Chipset Features Setup

    Defines the ISA Bus 16 bit I/O operating recovery Time time. 16 bit I/O recovery time does not exist. Memory hole at Enabled Memory hole at 15-16M is reserved for expanded 15M-16M ISA card Disabled Does not set this memory hole. Manual BrillianX 1S/2000...
  • Page 40 Enables Clock Spread Spectrum to reduce EMI. Spectrum Disabled Disables Clock Spread Spectrum. Close Empty Enabled Closes empty DIMM clock or PCI clock to reduce DIMM/PCI Clk EMI. Disabled Does not close empty DIMM or PCI clock. Manual BrillianX 1S/2000...

  • Page 41: Power Management Setup

    Blank Screen The system BIOS will only blank off the screen Method when disabling video. V / H SYNC + In addition to Blank Screen, BIOS will also turn off the V-SYNC & H - SYNC signals from VGA cards to monitor. Manual BrillianX 1S/2000...
  • Page 42 Instant-Off The system will power off immediately once PWR-BTTN the ‘ Power’ button is pressed. Delay 4 Secs The system will not power off until the ‘ Power’ button is pressed continuously for more than 4 seconds. Manual BrillianX 1S/2000...
  • Page 43 Does not allow wake-up on LAN. IRQ8 Break Enabled Genertes a clock event. suspend Disabled Does not generate a clock event. IRQ [3-7, 9-15], Enabled Reloads global timer. Disabled Does not influence the global timer. … … Parallel Port Manual BrillianX 1S/2000...

  • Page 44: Pnp/Pci Configuration Setup

    10,11,12,14,15 automatically. Used MEM base C800/8 ~ 64K Claims a memory space to be occupied by legacy addr ISA card. The memory address and the memory size (8/16/32/64K) can be chosen from the options. Invalidates this feature. Manual BrillianX 1S/2000...
  • Page 45 IRQ. Assign IRQ Enabled Assigns the needed IRQ for the VGA Card. for VGA Disabled Does not assign an IRQ for the VGA card, in order to release the IRQ. Manual BrillianX 1S/2000...

  • Page 46: Integrated Peripherals

    Use the power button to power up the system. Function ONLY Password Enables the Keyboard Password Power-on function and disables the power button’ s power- on function. Other than choosing this option, the password should be entered to implement this function. Manual BrillianX 1S/2000...
  • Page 47 The system will be powered up when the AC power supply powers on. Former-Sts W hatever the system status is, before the AC power supply powers down, the system resumes in the previous status (ON/OFF) when the AC power supply powers on. Manual BrillianX 1S/2000...

  • Page 48: System Monitor

    Opened Indicates status of chassis is opend. CPU Warning Enabled Displays CPU warnign temperature. Temperature Disabled Note: if no MAX1617 chip on mainboard, this item will no be displayed Current CPU Temperature of the CPU core. Temperature Manual BrillianX 1S/2000...

  • Page 49: Securityeasy Setup

    Set the continuous idle time of the keyboard 1 Hour before the system enters the LOCK mode. Video Blanking Control Enable Video is blank in the LOCK mode. Disable Video is normal in the LOCK mode. Note: See also Chapter 3 Manual BrillianX 1S/2000...

  • Page 50: Password Setting

    BIOS Setup. If you have selected ‘ Setup’ at ‘ Password Setting’ from ‘ BIOS Features Setup’ menu, you will be prompted for the password only when you enter BIOS Setup. Manual BrillianX 1S/2000...

  • Page 51: Ide Hdd Auto Detection

    MODE ZONE Drive C: User(516MB) 1120 65535 1119 Normal Drive D: None(203MB) 65535 -------- When HDD type is in ‘ user’ type, the ‘ MODE’ option will be available for users to select their own HDD mode. Manual BrillianX 1S/2000...

  • Page 52: Boot With Bios Defaults

    If you have made all the changes to CMOS values and the system can not boot with the CMOS values selected in setup, clear CMOS after power-down, then power on again. System will boot with BIOS default settings. Manual BrillianX 1S/2000...
  • Page 53 -- This page is intentionally left blank -- Manual BrillianX 1S/2000...

  • Page 54: Appendix Aqdi Motherboard Utility Cd-Rom

    Appendix A Appendix A QDI Motherboard Utility CD-ROM A QDI Motherboard Utility CD-ROM is supplied with each motherboard. The contents used for this motherboard are: 1. Chipset Dispatches: Intel Chipset Drivers included in the directory \ChipDrv\Intel can be used for this motherboard.
  • Page 55 Run Setup.exe from the utility CD directory \QME2 to install the QDI ManageEasy V2.0. The QDI ManageEasy Setup Wizard will guide you through the installation process. For detailed information on how to use QDI ManageEasy V2.0, please refer to the QDI ManageEasy V2.0 online help.

  • Page 56: Appendix B Processor Installation Procedures

    Do not forcefully press the Plastic Guide onto the motherboard. 2. Install HSSBASE (Heatsink Support Base) on motherboard, then insert the two plastic pins through the HSSBASE securing it to the motherboard. Manual BrillianX 1S/2000...
  • Page 57 Appendix ® Insert Pentium II or Celeron Processor in Slot1. 4. Clip Plastic Bar onto the HSSBASE through the fins on the processors’ heatsink. Manual BrillianX 1S/2000...
  • Page 58 S.E.C Cartridge, Retention Mechanism, Heatsink support, and ATX Form Factor Headsink Isometric View Not To Scale Remark: ® II Processor and refer to relevant Please skip step2 and step4 for Boxed Pentium details of this kind of processor for your installation. Manual BrillianX 1S/2000...

  • Page 59: Appendix C Boot Logo

    If you press <Esc>, it switches to the booting message screen. Otherwise, it enters operating system directly. You can use ‘ cblogo.exe’ ( included on the QDI Motherboard Utility CD) to replace it by any other logo which you prefer. Regarding the method of using cblogo.exe utility, please refer to it’...
  • Page 60 P/N : 430-01014-202-00 Manual BrillianX 1S/2000 Ver 2.0...
  • Page 61 Item Checklist Completely check your package. If you discover damaged or missing items, contact your retailer. BrillianX 1S/2000 motherboard QDI Motherboard Utility CD-ROM Retention Module I/O shield 1 IDE ribbon cable 1 floppy ribbon cable User’ s manual Notice The information in this document is subject to change in order to improve reliability, design, or function without prior notice and does not represent a commitment on the part of this company.
  • Page 62 Board Layout of Board Layout of BrillianX 1S/2000 V2.0 BrillianX 1S/2000 V2.0...
  • Page 63 The Patent for SpeedEasy...
