HAMPTON BAY GFS60014A Use And Care Manual

HAMPTON BAY GFS60014A Use And Care Manual

Steel gazeo with heat transfer frame
Hide thumbs

Advertisement

Quick Links

Item #
Model # GFS60014A

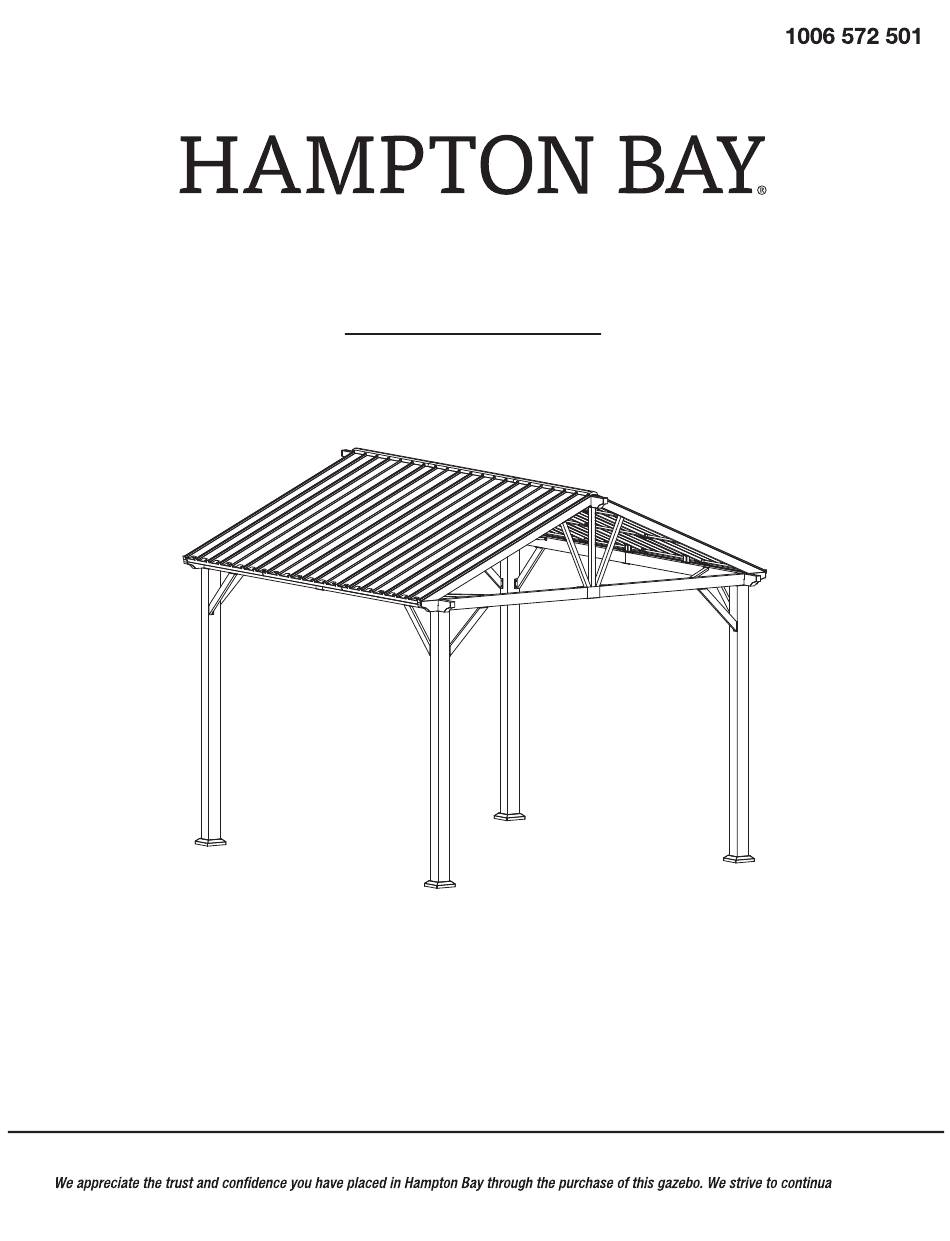

USE AND CARE GUIDE
STEEL GAZEBO WITH HEAT TRANSFER FRAME
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service
8 a.m. - 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday
1-855-HD-HAMPTON
HAMPTONBAY.COM
THANK YOU
lly create
quality products designed to enhance your home. Visit us online to see our full line of products available for your home improv
ement needs.
Thank you for choosing Hampton Bay!

Advertisement

loading
Need help?

Need help?

Do you have a question about the GFS60014A and is the answer not in the manual?

Questions and answers

Related Manuals for HAMPTON BAY GFS60014A

Summary of Contents for HAMPTON BAY GFS60014A

  • Page 1 8 a.m. - 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday 1-855-HD-HAMPTON HAMPTONBAY.COM THANK YOU lly create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improv ement needs. Thank you for choosing Hampton Bay!

  • Page 2: Table Of Contents

    Table of Contents Table of Contents........2 Pre-Assembly.

  • Page 3: Pre-Assembly

    Pre-Assembly PLANNING ASSEMBLY Read all instructions before assembly. To avoid damaging this product, assemble it on a soft, non-abrasive surface such as carpet or cardboard. NOTE: More than one person may be required to assemble this product. NOTE: For safety, please use ladders and assemble on level ground. 8-Foot Ladder (Qty.

  • Page 4: Package Contents

    Pre-Assembly (continued) PACKAGE CONTENTS Part Description Quantity Part Description Quantity...

  • Page 5: Assembly

    Assembly Attaching the Foot P Covers and the to the Post Legs Insert the foot plate cover (B1) into the post leg (A) from the bottom. Attach the post leg (A) to the foot p (B2) using M6x15 combination bolts (AA). Fully tighten the bolts using the hex wrench (JJ).
  • Page 6 Assembly (continued) Inserting the Lining Ring Beam into the Long Side Left Beam and Long Side Right Beam Insert the lining ring beam (D) into the long side left beam (C1) and long side right beam (C2) using M6x15 combination bolts (AA). Fully tighten the bolts using the hex wrench (JJ).
  • Page 7 Assembly (continued) Attaching the Beam Center Cover and the Middle Inclined Beam Connectors to the Assembled Long Side Beam Attach the beam center cover (E) to the middle of assembled long side beam (C1&C2), then attach the middle inclined beam connector (F) to the beam center cover (E), align the hole and secure with M6x15 combination bolts (AA) as shown below.
  • Page 8 Assembly (continued) Attaching the Assembled Long Side Beam to the Post Legs Attach the assembled long side beam (C1&C2) to the two post legs (A) using M6x15 combination bolts (AA). Fully tighten the bolts using the hex wrench (JJ). Repeat this step for the other two post legs (A). C1&C2...
  • Page 9 Assembly (continued) Inserting the Lining Ring Beam into the Short Side Left Beam and Short Side Right Beam Insert the lining ring beam (D) into the short side left beam (G1) and short side right beam (G2) using M6x15 combination bolts (AA). Fully tighten the bolts using the hex wrench (JJ).
  • Page 10 Assembly (continued) Attaching the Triangular Support Pipe to the Assembled Short Side Beam Attach the triangular support pipe (H) to the assembled short side beam (G1&G2) using M6x15 combination bolts (AA), as shown below. Fully tighten the bolts using the hex wrench (JJ). Repeat this step for the other triangular support pipe (H).
  • Page 11 Assembly (continued) Attaching the Oblique Beams to the Assembled Short Side Beam and Triangular Support Pipe Attach the oblique left beam (J1) and the oblique right beam (J2) to the assembled short side beams (G1&G2) and triangular support pipe (H) using M6x15 combination bolts (AA). Fully tighten the bolts using the hex wrench (JJ).
  • Page 12 Assembly (continued) Connecting the Assembled Short Side Beams to the Assembled Long Side Beams and Post Legs Attach the assembled short side beams (G1&G2) to the assembled long side beams (C1&C2) using M6x15 combination bolts (AA), as shown below. Fully tighten the bolts using the hex wrench (JJ). C1&C2 G1&G2 G1&G2...
  • Page 13 Assembly (continued) Connecting the Other Assembled Short Side Beams to the Assembled Long Side Beams and Post Legs Attach the other assembled short side beams (G1&G2) to the assembled long side beams (C1&C2) using M6x15 combination bolts (AA), as shown below. Fully tighten the bolts using the hex wrench (JJ).
  • Page 14 Assembly (continued) Attaching the Corbels to the Beams and the Post Legs Attach four corbels (K) to the assembled long side beams (C1&C2) and post legs (A) using M6x15 combination bolts (AA). Attach the other four corbels (K) to the assembled short side beams (G1&G2) and post legs (A) using M6x15 combination bolts (AA). Fully tighten the bolts using the hex wrench (JJ).
  • Page 15 Assembly (continued) Attaching the Crossbeam Support Brackets to the Long Side Beams and the Short Side Beams Attach the crossbeam support brackets (L) to the assembled long side beam (C1&C2) and the short side beam (G1&G2) using M6x15 combination bolts (AA). Fully tighten the bolts using the hex wrench (JJ).
  • Page 16 Assembly (continued) Attaching the Studs to the Top Beam Screw the studs (GG) to the top beam (M), as shown below. Repeat this step for the other top beam (M). Pay attention to tighten the correct holes. NOTE:...
  • Page 17 Assembly (continued) Inserting Lining Ring Beam into the Top Beams Insert the lining ring beam (D) into two top beams (M) using M6x15 combination bolts (AA), as shown below. Fully tighten the bolts using the hex wrench (JJ). HAMPTONBAY.COM Please contact 1-855-HD-HAMPTON for further assistance...
  • Page 18 Assembly (continued) Attaching the Roof Panel Connectors to the Top Beams Attach the roof panel connector 1 (N1) and roof panel connector 2 (N2) to the top beams (M) using M6x20 countersunk bolts (CC), as shown below. Fully tighten the bolts using the hex wrench (JJ).
  • Page 19 Assembly (continued) Attaching the Chandelier Hooks to the Top Beams Screw the chandelier hooks (U) clockwise to the top beams (M), as shown below. HAMPTONBAY.COM Please contact 1-855-HD-HAMPTON for further assistance...
  • Page 20 Assembly (continued) Inserting the Top Beams to the Oblique Beams and Attaching the Top Beam Plates to the Oblique Beams and Top Beams Insert the assembled top beams (M) to the oblique left beams (J1) and oblique right beams (J2), as shown below. Attach the top beam plates (O) to the top beams (M) and the oblique beams (J1&J2), align the holes and secure with M6x15 combination bolts (AA).
  • Page 21 Assembly (continued) Attaching the Corner Rafters to Top Beams and the Assembled Long Side Beams Attach the corner rafters (P) to the top beams (M) and the middle inclined beam connectors (F) in the assembled long side beam using M6x15 combination bolts (AA), as shown below. Fully tighten the bolts using the hex wrench (JJ).
  • Page 22 Assembly (continued) Unfolding the Rafter Branch Assemblies Unfold the four rafter branch assemblies (Q), as shown below.
  • Page 23 Assembly (continued) Attaching the Unfolded Rafter Branch Assemblies Put the rafter branch assemblies (Q) to the side of the corner rafters (P), attach the unfolded rafter branch assemblies (Q) to the top beams (M) and the middle inclined beam connectors (F) using M6x15 combination bolts (AA). Then attach the corner rafters (P) and the oblique beams (J1&J2) using M6x15 combination bolts (AA), as shown below.
  • Page 24 Assembly (continued) Attaching the Roof Panels Attach the roof panels 1 (R1) to the roof panel connector 1 (N1) using M6x10 combination bolts (BB), as shown below. Fully tighten the bolts using the hex wrench (JJ).
  • Page 25 Assembly (continued) Attaching the Roof Panels Insert one roof panel 2 (R2) into the groove of the roof panel 1 (R1). Insert another roof panel 2 (R2) into the groove of the roof panel 2 (R2). Insert the third roof panel 2 (R2) into the groove of the roof panel 2 (R2). Attach roof panels 2 (R2) to roof panel connector 2 (N2) using M6x10 combination bolts (BB), as shown below.
  • Page 26 Assembly (continued) Attaching the Roof Panel Insert the roof panel 3 (R3) into the groove of the roof panel 2 (R2), then attach roof panel 3 (R3) to roof panel connector 1 (N1) using M6x10 combination bolts (BB), as shown below. Fully tighten the bolts using the hex wrench (JJ).
  • Page 27 Assembly (continued) Attaching the Edge Roof Cap 1, the Center Roof Edge Cap 2 and the Edge Roof Cap 3 Attach the edge roof cap 1 (T1), the center roof edge cap 2 (T2) and the edge roof cap 3 (T3) to the top of roof panel 1 (R1), the roof panel 2 (R2) and roof panel 3 (R3) in turn using M6x15 combination bolts (AA), as shown below.
  • Page 28 Assembly (continued) Attaching the Roof Panel Attach the roof panel 1 (R1) to the roof panel connector 1 (N1) using M6x10 combination bolts (BB), as shown below. Fully tighten the bolts using the hex wrench (JJ). When assembly roof panel 1 (R1), the opposite is the assembled roof panel 3 (R3). NOTE:...
  • Page 29 Assembly (continued) NOTE:...
  • Page 30 Assembly (continued) Attach the top cover (S ) to the roof panel Fully tighten the bolts using the hex wrench (JJ) and the wrench (KK). NOTE:...
  • Page 31 Assembly (continued) Attaching the Roof Panels and the Top Covers Insert the third roof panel 2 (R2) into the groove of the roof panel 2 (R2), then attach the roof panel 2 (R2) to the roof panel connector 2 (N2) using M6x10 combination bolts (BB). Attach the top cover 2 (S2) to the roof panel 2 (R2) using a nut (DD), a washer (EE) and a nut cap (FF), as shown below.
  • Page 32 Assembly (continued) Attaching the Roof Panels Insert roof panel 3 (R3) into the groove of the roof panel 2 (R2), then attach roof panel 2 (R2) to roof panel connector 2 (N2) using M6x10 combination bolts (BB). Fully tighten the bolts using the hex wrench (JJ).
  • Page 33 Assembly (continued) Attaching the Top Covers Angle the top cover 1 (S1) to 30 degrees, insert the top cover 1 (S1) to the top cover 2 (S2) and secure using a nut (DD), a washer (EE) and a nut cap (FF), as shown below. Fully tighten the bolts using the hex wrench (JJ) and wrench (KK).
  • Page 34 Assembly (continued) Attaching the Edge Roof Cap 1, the Center Roof Edge Cap 2 and the Edge Roof Cap 3 Attach the edge roof cap 1 (T1), the center roof edge cap 2 (T2) and the edge roof cap 3 (T3) to the roof panel 1 (R1), the roof panel 2 (R2) and roof panel 3 (R3) in turn using M6x15 combination bolts (AA), as shown below.
  • Page 35 Assembly (continued) Inserting the Stakes Lift the foot plate covers (B1) first. Insert the stakes (HH) through the foot plates (B2) into the ground. HAMPTONBAY.COM Please contact 1-855-HD-HAMPTON for further assistance...

  • Page 36: Care And Cleaning

    Care Care and Cleaning For best results, clean the gazebo with a damp cloth and dry thoroughly. This will help prevent mildew by removing dirt particles that may accumulate. Do not clean with abrasive materials, bleach or solvents. Store the gazebo in a dry, sheltered place when not in use. Keep the gazebo away from fire, extreme heat, freezing conditions, and inclement weather such as rain, hail, sleet, snow, or wind.
  • Page 37 1-855-HD-HAMPTON HAMPTONBAY.COM...
