Item # 1001 868 840
Model # GFS00744A-CPY
USE AND CARE GUIDE

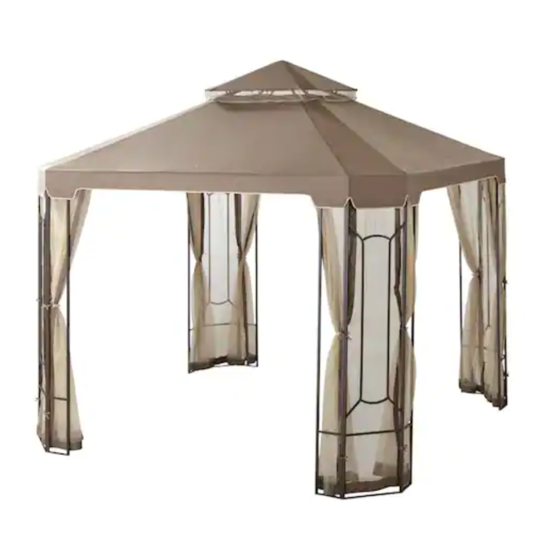

COTTLEVILLE GAZEBO REPLACEMENT CANOPY
Questions, problems, missing parts? Before returning to the store
call Hampton Bay Customer Service.
8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday
1-855-HD-HAMPTON
HAMPTONBAY.COM
THANK YOU
y through the purchase of this replacement canopy. We strive to continually
create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
Thank you for choosing Hampton Bay!
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for HAMPTON BAY GFS00744A-CPY
Summary of Contents for HAMPTON BAY GFS00744A-CPY
- Page 1 We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs. Thank you for choosing Hampton Bay!
- Page 2 Table of Contents Package Contents ..............3 Table of Contents ............2 Safety Information ..............2 Assembly ................ 4 Safety Warnings ................2 Care and Cleaning ............5 Warranty ................ 2 What is Covered ..............2 What is Not Covered ..............2 Pre-Assembly ..............
- Page 3 Pre-Assembly (continued) PACKAGE CONTENTS Part Description Quantity Small fabric cover Large fabric cover HAMPTONBAY.COM Please contact 1-855-HD-HAMPTON for further assistance.
- Page 4 Assembly Removing the old large fabric cover and the small fabric cover Remove the large fabric cover (K) from the beams (A) and the panels (B) by unfastening the Velcro. Remove the small fabric cover (J) from the short tubes of the canopy spokes (D). Remove the large fabric cover (K) from the assembled frame.
- Page 5 Assembly (continued) Attaching the new large fabric cover and the small fabric cover Place the large fabric cover (K) onto the assembled frame. Place the small fabric cover (J) and secure each corner by fully extending the fabric to the assembled short tubes of the canopy spokes (D).
- Page 6 Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service. 8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday 1-855-HD-HAMPTON HAMPTONBAY.COM Retain this manual for future use.
