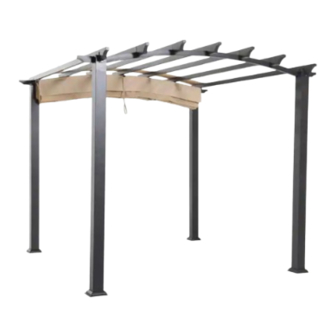

Arched gazebo
Hide thumbs Also See for GFM00469A:

Advertisement

Quick Links

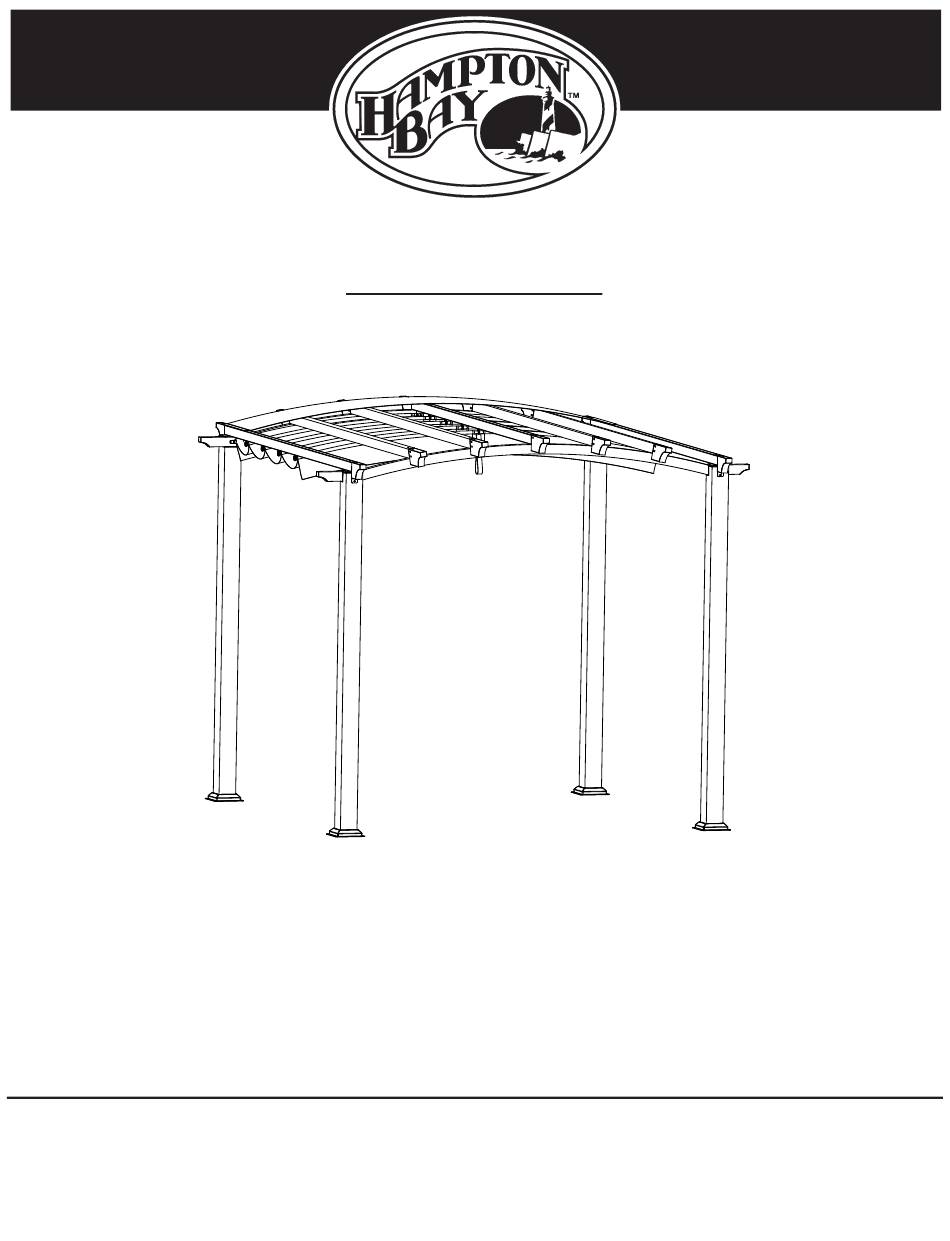

Model # GFM00469A
USE AND CARE GUIDE
ARCHED GAZEBO
Questions, problems, missing parts? Before returning to the store
call Hampton Bay Customer Service.
8 a.m. - 5 p.m., PST, Monday - Friday
1-866-988-3300
HAMPTONBAY.COM
THANK YOU
We appreciate the trust and confidence you have p laced in Hampton Bay through the purchase of this gazebo. We strive to continually create
.
u q
l a
y t i
r p
d o
c u
s t
e d
i s
n g
d e
o t
e
h n
n a
e c
o y
r u
o h
m
. e
i V
t i s
s u
o
i l n
e n
o t
s
e e
o
r u
l u f
i l l
e n
f o
r p
d o
c u
s t
a
a v
a l i
l b
f e
r o
o y
r u
o h
m
e
m i
p
o r
e v
m
e
t n
e n
d e
. s
Thank you for choosing Hampton Bay!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GFM00469A and is the answer not in the manual?

Questions and answers

Summary of Contents for HAMPTON BAY GFM00469A

  • Page 1 8 a.m. - 5 p.m., PST, Monday - Friday 1-866-988-3300 HAMPTONBAY.COM THANK YOU We appreciate the trust and confidence you have p laced in Hampton Bay through the purchase of this gazebo. We strive to continually create y t i t i s i l n...
  • Page 2: Safety Information

    Table of Contents Table of Contents ............2 Pre-Assembly ..............3 Safety Information ............2 Planning Assembly ..............3 Hardware Included ..............3 Product Caution ..............2 Safety Warnings ..............2 Package Cont n e ..............4 .
  • Page 3: Pre-Assembly

    Pre-Assembly PLANNING ASSEMBLY Read all instructions before assembly. To avoid damaging this product, assemble it on a soft, non-abrasive surface such as carpet or cardboard. NOTE: More than one person may be required to assemble this product. HARDWARE INCLUDED NOTE: Hardware not shown to actual size. Part Description Quantity...
  • Page 4 Pre-Assembly (continued) PACKAGE CONTENTS Part Description Quantity Part Description Quantity Protective cover Right connector bar Left connector bar Fabric shade Magnet iron plate Lengthways bar End tip Side top bar Center lengthways bar Side fabric hanger Center tip Center fabric hanger Post base plate Short shade rod Inner tip...
  • Page 5 Assembly Connecting the back connector bar with the magnet iron plate Attach the back right connector bar (A) to the back left connector bar (B) with the magnet iron plate (K) using M6x15 bolts (AA) and washers (EE). NOTE : Loosely tighten all bolts using the hex wrench (GG). HAMPTONBAY.COM Please contact 1-866-988-3300 for further assistance.
  • Page 6 Assembly (continued) Connecting the front connector bar Attach the front right connector bar (A) to the front left connector bar (B) using M6x15 bolts (AA) and washers (EE). NOTE : Loosely tighten all bolts using the hex wrench (GG).
  • Page 7 Assembly (continued) Attaching the crossbar Insert the inner tips (S) into the lengthways bars (C), the center tips (Q) into the center lengthways bar (E) and the end tips (L) into the side top bars (D). Attach the center lengthways bar (E) to the center of the front connector bars (A and B) and the back connector bars (A and B) using M6x75 bolts (DD), M6x15 bolts (AA), and washers (EE).
  • Page 8 Assembly (continued) Attaching the post base plates to the posts Attach the post base plates (R) to the posts (H) using M6x15 bolts (AA) and washers (EE). NOTE : Loosely tighten all bolts using the hex wrench (GG).
  • Page 9 Assembly (continued) Attaching the posts to the assembled structure Attach the posts (H) to the assembled structure using M6x15 bolts (AA), M6x75 bolts (DD), and washers (EE). NOTE : Loosely tighten all bolts using the hex wrench (GG). A&B HAMPTONBAY.COM Please contact 1-866-988-3300 for further assistance.
  • Page 10 Assembly (continued) Inserting the short shade rods into the fabric shade Insert the short shade rods (F) into the remaining slots of the fabric shade (J).
  • Page 11 Assembly (continued) Attaching the short shade rods Attach the four ends of the short shade rod (F) to the connector bars (A and B) using M6x35 bolts (CC) and washers (EE). NOTE : Loosely tighten all bolts using the hex wrench (GG). HAMPTONBAY.COM Please contact 1-866-988-3300 for further assistance.
  • Page 12 Assembly (continued) Connecting the long shade rods Insert the long shade rods (G) into the side fabric hangers (L1) on the side top bar (D), the slot at the end of the fabric shades (J), through the center fabric hangers (E1), into the remaining slots of the fabric shades (J) and attach to the side fabric hangers on the other side top bar (D) using M6x18 countersunk bolts (BB).
  • Page 13 Assembly (continued) Installing the protective cover and the ground spikes Attach the protective cover (I) to the side top bars (D) and the center lengthways bar (E) using M6x15 bolts (AA) and washers (EE). Insert the ground spikes (FF) through the post base plates (R) and into the ground. NOTE : Loosely tighten all bolts using the hex wrench (GG).
  • Page 14: Care And Cleaning

    Assembly (continued) Completing the assembly Ensure all connections are secure before use. Care and Cleaning For best results, clean the gazebo with a damp cloth and dry thoroughly. This will help prevent mildew by removing dirt particles that may accumulate. Do not clean with abrasive materials, bleach, or solvents.
  • Page 15 Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service. 8 a.m. - 5 p.m., PST, Monday - Friday, 1-866-988-3300 HAMPTONBAY.COM Retain this manual for future use.
