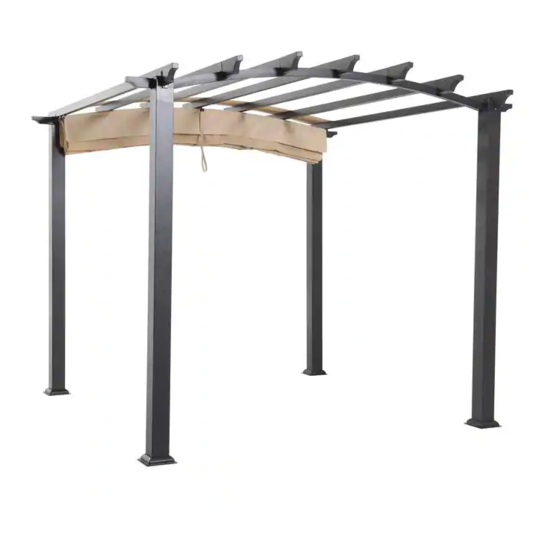

Arched gazebo
Hide thumbs Also See for GFM00469A:
Table of Contents

Advertisement

Quick Links

Download this manual
Item #
1000 847 084
Model # GFM00469A
USE AND CARE GUIDE
ARCHED GAZEBO
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service.
8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday
1-877-527-0313
HOMEDEPOT.CA
THANK YOU
We appreciate the trust and confidence you have p laced in Hampton Bay through the purchase of this gazebo. We strive to continually create
.
u q
l a
y t i
r p
d o
c u
s t
e d
i s
n g
d e
o t
e
h n
n a
e c
o y
r u
o h
m
. e
i V
t i s
s u
o
i l n
e n
o t
s
e e
o
r u
l u f
i l l
e n
f o
r p
d o
c u
s t
a
a v
a l i
l b
f e
r o
o y
r u
o h
m
e
m i
p
o r
e v
m
e
t n
e n
d e
. s
Thank you for choosing Hampton Bay!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GFM00469A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for HAMPTON BAY GFM00469A

Summary of Contents for HAMPTON BAY GFM00469A

  • Page 1 8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday 1-877-527-0313 HOMEDEPOT.CA THANK YOU We appreciate the trust and confidence you have p laced in Hampton Bay through the purchase of this gazebo. We strive to continually create y t i t i s i l n...

  • Page 2: Safety Information

    Table of Contents Table of Contents ............2 Pre-Assembly ..............3 Safety Information ............2 Planning Assembly ..............3 Hardware Included ..............3 Product Caution ..............2 Safety Warnings ..............2 Package Cont n e ..............4 .

  • Page 3: Pre-Assembly

    Pre-Assembly PLANNING ASSEMBLY Read all instructions before assembly. To avoid damaging this product, assemble it on a soft, non-abrasive surface such as carpet or cardboard. NOTE: Need three to four persons to assemble this product. HARDWARE INCLUDED NOTE: Hardware not shown to actual size. Part Description Quantity...

  • Page 4: Package Contents

    Pre-Assembly (continued) PACKAGE CONTENTS Part Description Quantity Part Description Quantity Protective cover Right connector bar Left connector bar Fabric shade Magnet iron plate Lengthways bar End tip Side top bar Center lengthways bar Side fabric hanger Center tip Center fabric hanger Post base plate Short shade rod Inner tip...
  • Page 5 Assembly Connecting the connector bar with the magnet iron plate Insert the left connector bar (B) into the right connector bar (A) first, then secure the connector bars (A & B) with M6x15 bolts (AA) and washers (EE). Attach the magnet iron plate (K) to the assembled connector bars (A & B) using M6x15 bolts (AA) and washers(EE). NOTE : Fully tighten all bolts using the hex wrench (GG).
  • Page 6 Assembly (continued) Connecting the connector bar Insert the left connector bar (B) into the right connector bar (A), then secure the connector bars (A & B) with M6x15 bolts (AA) and washers (EE). NOTE : Fully tighten all bolts using the hex wrench (GG).
  • Page 7 Assembly (continued) Insert the tip Take out the foam blocks in the side top bar (D). Insert the end tips (L) into the side top bar (D). Repeat this step for another side top bar (D). Take out the foam blocks in the center lengthways bar (E), and insert the center tips (Q). Insert the inner tip (S) into the lengthways bar (C).
  • Page 8 Assembly (continued) Attaching the crossbar Attach the center lengthways bar (E) with the hole side to the center of the connector bars (A & B) without the magnet iron plate, using M6x80 bolts (DD) and washers (EE). Attach another side of the center lengthways bar (E) to the center of the back connector bars (A & B) using M6x80 bolts (DD), M6X15 bolts (AA) and washers (EE).
  • Page 9 Assembly (continued) Attaching the post base plates to the posts Attach the post base plates (R) to the posts (H) using M6x15 bolts (AA) and washers (EE). Repeat this step for another three posts (H). NOTE : Loosely tighten all bolts using the hex wrench (GG). HOMEDEPOT.CA Please contact 1-877-527-0313 for further assistance.
  • Page 10 Assembly (continued) Attaching the posts to the assembled structure Attach the posts (H) to the assembled structure using M6x15 bolts (AA), M6x80 bolts (DD) and washers (EE). NOTE : Suggest two ladders to assemble the posts. A&B...
  • Page 11 Assembly (continued) Attaching the posts to the assembled structure Attach the posts (H) to the assembled structure using M6x15 bolts (AA), M6x80 bolts (DD) and washers (EE). Once all bolts are in place, fully tighten all the bolts. NOTE : Suggest two ladders to assemble the posts.
  • Page 12 Assembly (continued) Inserting the short shade rods into the fabric shade Insert the short shade rods (F) into the top slots of the fabric shade (J).
  • Page 13 Assembly (continued) Attaching the short shade rods Attach the four ends of the short shade rods (F) to the front connector bars (A&B) using M6x35 bolts (CC) and washers (EE). Pull out the elastic ribbons on the two fabric slot ends. A&B HOMEDEPOT.CA Please contact 1-877-527-0313 for further assistance.
  • Page 14 Assembly (continued) Connecting the long shade rods Insert the four long shade rods (G) through the half-slot, through the center fabric hangers (E1), through the rest half-slot. Pull the elastic ribbons to the pastic wheel on the side top bar (D). Secure the long shade rods (G) with M6x18 countersunk bolts (BB).
  • Page 15 Assembly (continued) Installing the protective cover and the ground spikes Attach the protective cover (I) to the side top bars (D) and the center lengthways bar (E) using M6x15 bolts (AA) and washers (EE). Insert the ground spikes (FF) through the post base plates (R) and into the ground. NOTE : Fully tighten all the bolts with the hex wrench (GG).

  • Page 16: Care And Cleaning

    Assembly (continued) Completing the assembly Ensure all connections are secure before use. Care and Cleaning For best results, clean the gazebo with a damp cloth and dry thoroughly. This will help prevent mildew by removing dirt particles that may accumulate. Do not clean with abrasive materials, bleach, or solvents.
  • Page 17 Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service. 8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday 1-877-527-0313 HOMEDEPOT.CA Retain this manual for future use.
