Item #0000 000 000
Model #GFM30731C

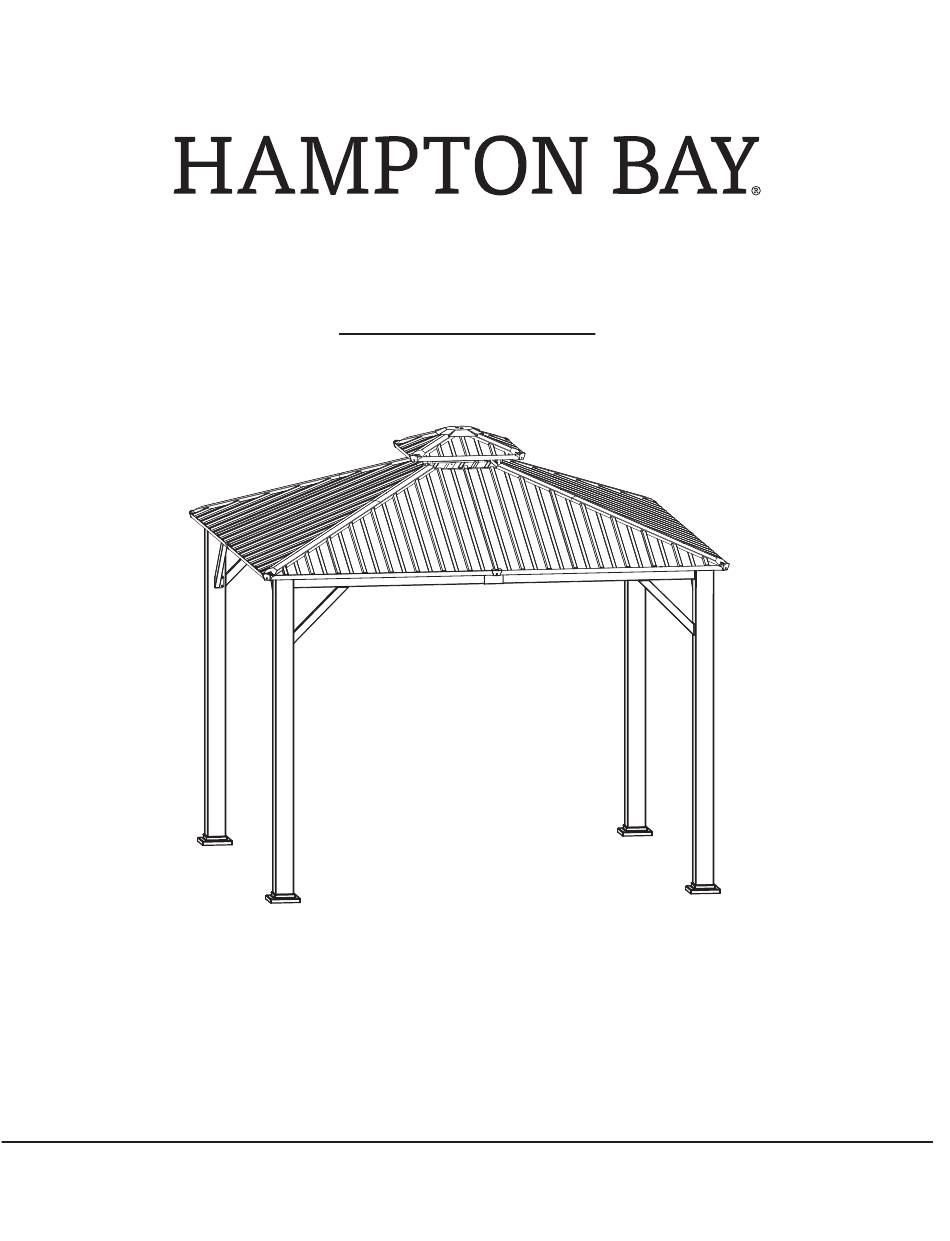

USE AND CARE GUIDE
LORSTON 9.7 X 9.7 FT GAZEBO
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service
8 a.m. - 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday
1-855-HD-HAMPTON
HOMEDEPOT.CA
THANK YOU
We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this gazebo. We strive to continually
create quality products designed to enhance your home. Visit us onlineto see our full line of products available for your home improvement needs.
Thank you for choosing Hampton Bay!

Advertisement

Table of Contents
loading

Related Manuals for HAMPTON BAY LORSTON GFM30731C

Summary of Contents for HAMPTON BAY LORSTON GFM30731C

  • Page 1 THANK YOU We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this gazebo. We strive to continually create quality products designed to enhance your home. Visit us onlineto see our full line of products available for your home improvement needs.

  • Page 2: Table Of Contents

    Table of Contents Table of Contents........2 Pre-Assembly.

  • Page 3: Warranty

    Warranty 1 YEAR FRAME LIMITED WARRANTY WHAT IS COVERED We warrant the frames to be free of manufacturing defects to the original purchaser for one year. WHAT IS NOT COVERED It remains the customer’s responsibility for freight and packaging charges to and from our service center. This warranty does not cover commercial use, hardware, acts of nature, fire, freezing and abusive use.

  • Page 4: Package Contents

    Pre-Assembly (continued) PACKAGE CONTENTS Part Description Part Description Quantity Quantity Post Metal Plate 6 Long Beam 1 Metal Plate 7 Long Beam 2 Post Base Plate Corner Incline Tube Post Base Cap Middle Incline Tube Beam Decorator Top Corner Incline Tube Beam Lining Short Horizontal Tube Right Corner Support Bar...

  • Page 5: Assembly

    Assembly Attaching The Post Base Cap And The Post Base Plate To The Post Attach the post base cap (L1) and the post base plate (L) to the posts (A) using M6x15 combination bolts (AA). Repeat this step for the other three posts (A). Fully tighten the bolts using the hex wrench (II).
  • Page 6 Assembly (continued) Attaching The Long Beam 1 And Long Beam 2 To The Beam Lining And The Beam Decorator Attach the long beam 1 (B) and long beam 2 (B1) to the beam lining (M1). Attach the long beam 1 (B) and long beam 2 (B1) to the beam decorator (M) by using M6x75 combination bolts (DD) and M6 nuts (EE). Do not fully tighten all the bolts at this step.
  • Page 7 Assembly (continued) Attaching The Assembled Long Beam To The Post Attach the assembled long beam (B & B1) to the two posts (A) using M6x40 combination bolts (CC). Repeat this step for the other two posts (A). Do not fully tighten all the bolts at this step. HOMEDEPOT.CA Please contact 1-855-HD-HAMPTON for further assistance.
  • Page 8 Assembly (continued) Connecting The Assembled Long Beam To The Assembled Post Attach the assembled long beam (B & B1) to the assembled posts (A) using M6x40 combination bolts (CC) as shown below. Do not fully tighten all the bolts at this step.
  • Page 9 Assembly (continued) Attaching The Support Bar To The Beam And The Post Attach the left corner support bar (N1) to the long beam 2 (B1) by using M6x15 combination bolts (AA). Attach the right corner support bar (N) to the long beam1 (B) by using M6x15 combination bolts (AA). Attach the other end of the left corner support bar (N1) and the other end of the right corner support bar (N) to the posts (A) using M6x15 combination bolts (AA) as shown below.
  • Page 10 Assembly (continued) Attaching The Corner Fitting To The Corner Incline Tube, Attaching The Middle Fitting To The Middle Incline Tube Attach the corner fitting (N2) to the corner incline tube (C) using M6x15 combination bolt (AA). Attach the middle fitting (N3) to the middle incline tube (C1) using M6x15 combination bolt (AA). Repeat this step for the other three corner incline tubes (C) and the other three middle incline tubes (C1).
  • Page 11 Assembly (continued) Attaching The Corner Incline Tube To The Post And The Top Frame Tube Attach the corner incline tube (C) to the post (A) by using M6x15 combination bolts (AA) through the corner fitting. Insert the top frame plug (P) into the corner incline tube (C) and the top frame tube (E) as shown below. Do not fully tighten all the bolts at this step.
  • Page 12 Assembly (continued) Attaching The Middle Incline Tube To The Beam And The Top Frame Tube Attach the middle incline tube (C1) to the assembled beam (B & B1) by using the M6 nuts (EE) through the middle fitting (N3.) Insert the middle incline tube (C1) into the top frame tube (E) as shown below. Do not fully tighten all the bolts at this step.
  • Page 13 Assembly (continued) Attaching The Top Corner Incline Tube And The Top Border Tube To The Incline Outer Metal Part, Attaching The Top Corner Incline Tube To The Bottom Plate Attach the top corner incline tube (C2) and the top border tube (F2) to the incline outer metal part (R) using the M6x15 combination bolt (AA) as shown below.
  • Page 14 Assembly (continued) Attaching The Metal Plate 1 To The Top Border Tube Attach the metal plate 1 (H) to the top border tube (F2) using the M6x15 combination bolts (AA). Do not fully tighten all the bolts at this step.
  • Page 15 Assembly (continued) Attaching The Top Cover Plate And The Top Plate To Metal Plate 1, Attaching The Top Plate And The Hook To The Bottom Plate Attach the top cover plate (G) to the metal plate 1 (H) using the M6x40 combination bolts (CC). Attach the top plate (S) to the bottom plate (T) by using the M6x30 combination bolt (BB) and plastic washer (FF).
  • Page 16 Assembly (continued) Attaching The Top Corner Incline Tube To The Top Frame Plug, Attaching The Horizontal Tube And The Incline Tube To The Connecting Plate Attach the top corner incline tube (C2) to the top frame plug (P) using the M6x15 combination bolts (AA). Attach the short horizontal tube (D), the long horizontal tube (D1) and the corner incline tube (C), to the incline connecting plate (Q) using the M6x15 combination bolt (AA).
  • Page 17 Assembly (continued) Attaching The Border Tube To The Incline Tube Attach the border tube1 (F) and the border tube 2 (F1) to the corner incline tube (C) using the M6x15 combination bolts (AA). Attach the border tube1 (F) and the border tube 2 (F1) to the middle incline tube (C1) using the M6x15 combination bolts (AA). Do not fully tighten all the bolts at this step.
  • Page 18 Assembly (continued) Attaching The Metal Plate Attach the metal plate 7 (K1) and the metal plate 6 (K) to the border tube (F & F1) using the M6x15 combination bolts (AA) as shown below. Attach the metal plate 7 (K1) and the metal plate 6 (K) to the corner incline tube (C) by using the M6x15 combination bolts (AA) as shown below.
  • Page 19 Assembly (continued) Attaching The Metal Plate To The Metal Plate Cover Component Attach the metal plate 7 (K1) and the metal plate 6 (K) to metal plate cover component (P1) using the M6x15 combination bolts (AA). Do not fully tighten all the bolts at this step. HOMEDEPOT.CA Please contact 1-855-HD-HAMPTON for further assistance.
  • Page 20 Assembly (continued) Attaching The Metal Plate Attach the metal plate 4 (J) and metal plate 5 (J1) to border tube (F & F1) using the M6x15 combination bolts (AA) and M6x30 combination bolts (BB) as shown below. Attach the metal plate 4 (J) and metal plate 5 (J1) to the corner incline tube (C) by using the M6x15 combination bolts (AA) as shown below.
  • Page 21 Assembly (continued) Attaching The Metal Plate Attach the metal plate 2 (H1) and the metal plate 3 (H2) to the border tube (F & F1) using the M6x30combination bolts (BB). Attach the metal plate 2 (H1) and the metal plate 3 (H2) to the corner incline tube (C) using the M6x15 combination bolts (AA). Do not fully tighten all the bolts at this step.
  • Page 22 Assembly (continued) Attaching The Cover Plate Attach the cover plate (G1) to the assembled frame by using the M6x40 combination bolts (CC) as shown below. Do not fully tighten all the bolts at this step.
  • Page 23 Assembly (continued) Attaching The Outer Metal Part Attach the incline outer metal part (R) and the border tube outer metal part (R1) to the assembled frame using the M6x15 combination bolts (AA) as shown below. Do not fully tighten all the bolts at this step. HOMEDEPOT.CA Please contact 1-855-HD-HAMPTON for further assistance.
  • Page 24 Assembly (continued) Tightening The Bolts And Securing The Post To The Ground Once all of the bolts are in place, fully tighten all the bolts using wrench (HH) and hex wrench (II). Secure the post (A) to the ground by using ground spike (GG).

  • Page 25: Care And Cleaning

    Care Care and Cleaning For best results, clean the gazebo with a damp cloth and dry thoroughly. This will help prevent mildew by removing dirt particles that may accumulate. Do not clean with abrrasive materials, bleach or solvents. Store the gazebo in a dry, sheltered place when not in use. Keep the gazebo away from fire, extreme heat, freezing conditions, and inclement weather as rain, hail, sleet, snow, or wind.
  • Page 26 Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service. 8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday 1-855-HD-HAMPTON HOMEDEPOT.CA Retain this manual for future use. For certification use only...
