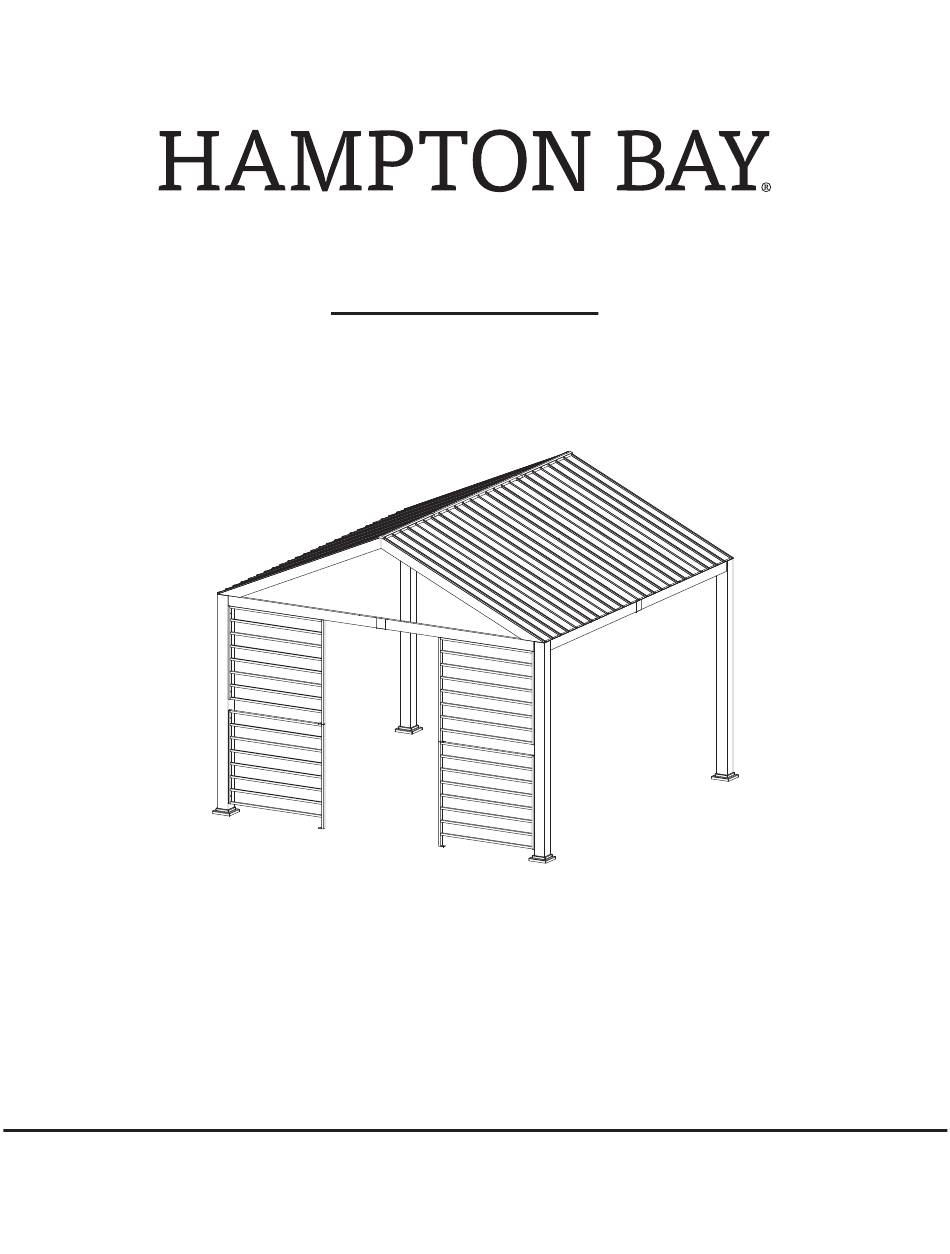

Item # 1001 748 131
Model # GFS60049A
USE AND CARE GUIDE
WINDSOR HILL 12FT X 12FT STEEL HARDTOP PAVILION
WITH PRIVACY
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service.
8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday
1-855-HD-HAMPTON
HOMEDEPOT.CA
THANK YOU
We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this pavilion. We strive continually to create
quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
Thank you for choosing Hampton Bay!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WINDSOR HILL GFS60049A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for HAMPTON BAY WINDSOR HILL GFS60049A

Summary of Contents for HAMPTON BAY WINDSOR HILL GFS60049A

  • Page 1 THANK YOU We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this pavilion. We strive continually to create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.

  • Page 2: Table Of Contents

    Table of Contents ............2 Pre-Assembly ............... 3 Planning Assembly ..............3 Safety Instructions ............. 2 Hardware Included ..............3 Save These Instructions ............2 Package Contents ..............4 Read All Instructions Before Use ..........2 Assembly ................ 5 Warranty ................

  • Page 3: Warranty

    Warranty 2 YEAR FRAME LIMITED WARRANTY WHAT IS COVERED We warrant the frame to be free of manufacturing defects to the original purchaser for two years. WHAT IS NOT COVERED It remains the customer’s responsibility for freight and packaging charges to and from our service center. This warranty does not cover s warranty.

  • Page 4: Package Contents

    Pre-Assembly (continued) PACKAGE CONTENTS Description Quantity Description Quantity Part Part Post 1 Roof Panel Connector 1 Post 2 Roof Panel Connector 2 Post 3 Corner Rafter Foot Plate Cover Short Beam Foot Plate Center Roof Edge Cap 1 Beam 1 Edge Roof Cap 2 Edge Roof Cap 3 Beam 2...

  • Page 5: Assembly

    Assembly Attaching the Foot Plate Covers and the Foot Plates to the Post Legs Insert the foot plate cover (B) into the post (A1) from the bottom. Attach the post (A1) to the foot plates (C) using M6x15 combination bolts (BB). Fully tighten the bolts using the hex wrench (JJ).
  • Page 6 Assembly (continued) Inserting the Lining Ring Beam into the Beam 1 and the Beam 3 Insert the lining ring beam (E) into the beam 1 (D1) and beam 3 (D3) using M6x15 combination bolts (BB). Fully tighten the bolts using the hex wrench (JJ). Repeat this step for the other beam 1 (D1) and the beam 3 (D3).
  • Page 7 Assembly (continued) Inserting the Lining Ring Beam into the Beam 2 and the Beam 4 Insert the lining ring beam (E) into the beam 2 (D2) and beam 4 (D4) using M6x15 combination bolts (BB). Fully tighten the bolts using the hex wrench (JJ). Repeat this step for the other beam 2 (D2) and the beam 4 (D4).
  • Page 8 Assembly (continued) Inserting the Oblique Beam Lining into the Oblique Beam 1 and the Oblique Beam 2 Insert the oblique beam lining (G) into the oblique beam 1 (F1) and oblique beam 2 (F2) using M6x15 combination bolts (BB). Fully tighten the bolts using the hex wrench (JJ). Repeat this step for the other oblique beam 1 (F1) and the oblique beam 2 (F2).
  • Page 9 Assembly (continued) Inserting the Top Lining Ring Beam into the Top Beams Insert the top lining ring beam (J) into the top beams (H) using M6x15 combination bolts (BB). Fully tighten the bolts using the hex wrench (JJ). HOMEDEPOT.CA Please contact 1-855-HD-HAMPTON for further assistance.
  • Page 10 Assembly (continued) Attaching the Studs to the Top Beams Screw the studs (EE) to the top beams (H) as shown below. NOTE: Pay attention to tighten the correct holes.
  • Page 11 Assembly (continued) Attaching the Hooks to the Top Beams Screw the hooks (LL) clockwise to the top beams (H) as shown below. HOMEDEPOT.CA Please contact 1-855-HD-HAMPTON for further assistance.
  • Page 12 Assembly (continued) Attaching the Roof Panel Connectors 1 and the Roof Panel Connectors 2 to the Top Beams Attach the roof panel connectors 1 (K1) to the top beams (H) using M6x20 countersunk bolts (DD). Attach the roof panel connectors 2 (K2) to the top beams (H) using M6x20 countersunk bolts (DD). Fully tighten the bolts using the hex wrench (JJ).
  • Page 13 Assembly (continued) Attaching the Beams 2 and the Beams 4 to the Posts 1, the Post 2 and the Post 3 Attach the beam 2 (D2) to the post 3 (A3) using M6x15 combination bolts (BB). Attach the beam 4 (D4) to the post 1 (A1) using M6x15 combination bolts (BB). Fully tighten the bolts using the hex wrench (JJ).
  • Page 14 Assembly (continued) Attaching the Beams 1 and the Beams 3 to the Posts 1, the Post 2 and the Post 3 Attach the beam 1 (D1) to the post 2 (A2) using M6x15 combination bolts (BB). Attach the beam 3 (D3) to the post 3 (A3) using M6x15 combination bolts (BB). Fully tighten the bolts using the hex wrench (JJ).
  • Page 15 Assembly (continued) Attaching the Corbels to the Beams and the Posts Attach the corbels (S) to the beams (D1&D2&D3&D4) and the posts (A1&A2&A3) using M6x15 combination bolts (BB) as shown below. Fully tighten the bolts using the hex wrench (JJ). D1&D2&D3&D4 A1&A2&A3 HOMEDEPOT.CA...
  • Page 16 Assembly (continued) Attaching the Crossbeam Support Brackets to the Beams Attach the crossbeam support bracket (T) to the beams (D1&D4) and the beams (D2&D3) using M6x15 combination bolts (BB). Fully tighten the bolts using the hex wrench (JJ). Repeat this step for the other beams (D1&D4) and beams (D2&D3). D1&D4 D2&D3...
  • Page 17 Assembly (continued) Attaching the Oblique Beams to the Posts Attach the oblique beams (F1&F2) to the posts (A2&A3) using M6x15 combination bolts (BB). Fully tighten the bolts using the hex wrench (JJ). Repeat this step for the other oblique beams (F1&F2) to the posts (A1). F1&F2 A1&A2&A3 HOMEDEPOT.CA...
  • Page 18 Assembly (continued) Attaching the Roof Support Pipe to the Oblique Beams and the Beams Attach the roof support pipe (R) to the oblique beams (F1&F2) using M6x15 combination bolts (BB). Attach the roof support pipe (R) to the beams (D1&D3) using M6x15 combination bolts (BB). Fully tighten the bolts using the hex wrench (JJ).
  • Page 19 Assembly (continued) Attaching the Top Beam to the Oblique Beams Attach the top beam (H) to the oblique beams (F1&F2) using M6x15 combination bolts (BB). Fully tighten the bolts using the hex wrench (JJ). Repeat this step for the other top beam (H) to the oblique beams (F1&F2). HOMEDEPOT.CA Please contact 1-855-HD-HAMPTON for further assistance.
  • Page 20 Assembly (continued) Inserting the Stakes Insert the stakes (GG) through the foot plates (C) into the ground. A1&A2&A3...
  • Page 21 Assembly (continued) Attaching the Rails to the Posts and Beams Attach the rail (U) to the post 2 (A2) using M6x35 combination bolts (CC). Attach another rail (U) to the post 2 (A2) and the beam 1 (D1) using M6x35 combination bolts (CC). Fix two rails (U) together using M6x35 combination bolt (CC), the washer (II) and the Nut (HH) as shown below.
  • Page 22 Assembly (continued) Attaching the Edge Roof Cap 2, the Edge Roof Cap 3 and Center Roof Edge Cap 1 to the Beam 2 and the Beam 4 Attach the edge roof cap 3 (N3) to the beam 2 (D2) using M6x15 combination bolts (BB). Attach the center roof edge cap 1 (N1) to the beam 2 (D2) and the beam 4 (D4) using M6x15 combination bolts (BB).
  • Page 23 Assembly (continued) Attaching the Corner Rafters to the Center Roof Edge Cap1, Edge Roof Cap 2, Edge Roof Cap 3 and the Top Beam Attach the corner rafter (L) to the beam 2 (D2) and the beam 4 (D4) through the center roof edge cap 1 (N1), the edge roof cap 2 (N2) and the edge roof cap 3 (N3) using M6x15 combination bolts (BB).
  • Page 24 Assembly (continued) Attaching the Short Beams to the Oblique Beam 1, the Oblique Beam 2 and the Corner Rafters Attach the short beams (M) to the oblique beam 1 (F1) and the oblique beam 2 (F2) using M6x15 combination bolts (BB). Attach the short beams (M) to the corner rafters (L) using M6x15 combination bolts (BB) as shown below.
  • Page 25 Assembly (continued) Attaching the Roof Panel Attach the roof panel 3 (P3) to the roof panel connector 1 (K1) using M6x8 combination bolts (AA). Attach the roof panel 3 (P3) to the edge roof cap 3 (N3) using M6x8 combination bolts (AA). Fully tighten the bolts using the hex wrench (JJ).
  • Page 26 Assembly (continued) Attaching the Roof Panels Insert the third roof panel 2 (P2) into the groove of the second roof panel 2 (P2). Insert forth roof panel 2 (P2) into the groove of the third roof panel 2 (P2). Attach the roof panels (P2) to the roof panel connector 2 (K2) using M6x8 combination bolts (AA). Attach the roof panels (P2) to the center roof edge cap 1 (N1), the edge roof cap 2 (N2) and the edge roof cap 3 (N3) using M6x8 combination bolts (AA).
  • Page 27 Assembly (continued) Attaching the Roof Panels Insert the roof panel 1 (P1) into the groove of forth roof panel 2 (P2). Attach the roof panel 1 (P1) to the roof panel connector 1 (K1) using M6x8 combination bolts (AA). Attach the roof panel 1 (P1) to the edge roof cap 2 (N2) using M6x8 combination bolts (AA). Fully tighten the bolts using the hex wrench (JJ).
  • Page 28 Assembly (continued) Attaching the Roof Panels Attach the roof panel 3 (P3) to the roof panel connector 1 (K1) using M6x8 combination bolts (AA). Attach the roof panel 3 (P3) to the edge roof cap 3 (N3) using M6x8 combination bolts (AA). Fully tighten the bolts using the hex wrench (JJ).
  • Page 29 Assembly (continued) Attaching the Roof Panels and the Top Cover nut cap (FF) as shown below. Fully tighten the bolts using the hex wrench (JJ) and the wrench (KK). NOTE: HOMEDEPOT.CA Please contact 1-855-HD-HAMPTON for further assistance.
  • Page 30 Assembly (continued) Attaching the Roof Panels and the Top Cover Attach the second roof panel 2 (P2) to the roof panel connector 2 (K2) using M6x8 combination bolts (AA). Attach the top cover 2 (Q2) to the second roof panel 2 (P2) using a washer (II), a nut (HH) and a nut cap (FF) as shown below. Attach the second roof panel 2 (P2) to the center roof edge cap 1 (N1) using M6x8 combination bolt (AA).
  • Page 31 Assembly (continued) Attaching the Roof Panels Insert the third roof panel 2 (P2) into the groove of the second roof panel 2 (P2). Attach the third roof panel 2 (P2) to the roof panel connector 2 (K2) using M6x8 combination bolts (AA). Fix the top cover 2 (Q2) to the third roof panel 2 (P2) using a washer (II), a nut (HH) and a nut cap (FF) as shown below.
  • Page 32 Assembly (continued) Attaching the Roof Panels Insert the roof panel 1 (P1) into the groove of forth roof panel 2 (P2). Attach the roof panel 1 (P1) to the roof panel connector 1 (K1) using M6x8 combination bolts (AA). Attach the top cover 1 (Q1) to the roof panel 1 (P1) using a washer (II), a nut (HH) and a nut cap (FF) as shown below. Attach the roof panel 1 (P1) to the edge roof cap 2 (N2) using M6x8 combination bolt (AA).
  • Page 33 Assembly (continued) Inserting the Stakes Secure the rails (U) to the ground using stakes (GG). HOMEDEPOT.CA Please contact 1-855-HD-HAMPTON for further assistance.

  • Page 34: Care And Cleaning

    Care and Cleaning For best results, clean the pavilion with a damp cloth and dry thoroughly. This will help prevent mildew by removing dirt particles that may accumulate. Do not clean with abrasive materials, bleach, or solvents. Keep the pavilion away from fire, extreme heat, freezing conditions, and inclement weather such as rain, hail, sleet, snow, or wind.
  • Page 35 Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service 8 a.m. – 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday 1-855-HD-HAMPTON HOMEDEPOT.CA Retain this manual for future use.
