Item #
1001 414 646
Model # GFM00469A

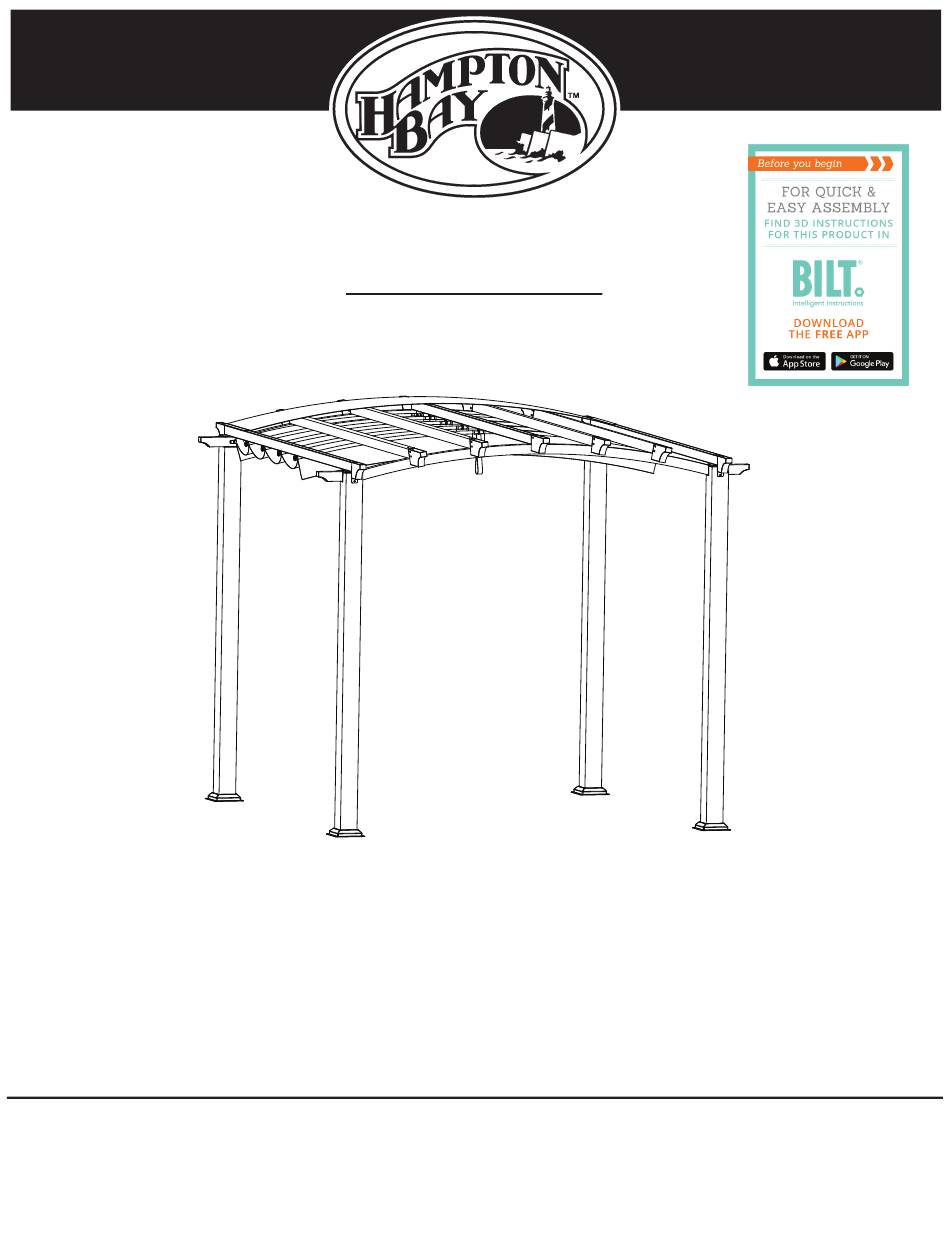

USE AND CARE GUIDE
ARCHED PERGOLA
Questions, problems, missing parts? Before returning to the store
call Hampton Bay Customer Service.
8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday
1-855-HD-HAMPTON
HAMPTONBAY.COM
THANK YOU
We appreciate the trust and confidence you have p laced in Hampton Bay through the purchase of this pergola. We strive to continually create
.
quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
Thank you for choosing Hampton Bay!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GFM00469A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for HAMPTON BAY GFM00469A

Summary of Contents for HAMPTON BAY GFM00469A

  • Page 1 THANK YOU We appreciate the trust and confidence you have p laced in Hampton Bay through the purchase of this pergola. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.

  • Page 2: Table Of Contents

    Table of Contents Table of Contents ............2 Pre-Assembly ..............3 Safety Information ............2 Planning Assembly ..............3 Hardware Included ..............3 Product Caution ..............2 Safety Warnings ..............2 Package Cont n e ..............4 Warranty ................

  • Page 3: Pre-Assembly

    Pre-Assembly PLANNING ASSEMBLY Read all instructions before assembly. To avoid damaging this product, assemble it on a soft, non-abrasive surface such as carpet or cardboard. NOTE: Three to four adults are required to assmeble this product. HARDWARE INCLUDED NOTE: Hardware not shown to actual size. Part Description Quantity...

  • Page 4: Package Cont N E

    Pre-Assembly (continued) PACKAGE CONTENTS Part Description Quantity Part Description Quantity Right c t c e Post f e L onnector otective cov r e Fabric s e top Magnet i p e t Center lengthways bar End tip Plastic side fabric wheel Plastic center fabric wheel Steel rolling wheel Center tip...

  • Page 5: Ass E M L B . Y

    Assembly Connecting the connector bar with the magnet iron plate Insert the left connector bar (B) into the right connector bar (A) and secure the connector bars (A & B) with M6x15 combination bolts (AA). Attach the magnet iron plate (K) to the assembled connector bars (A & B) using M6x15 combination bolts (AA). NOTE : Fully tighten all bolts using the hex wrench (FF).
  • Page 6 Assembly (continued) Connecting the connector bar Insert the left connector bar (B) into the right connector bar (A), and secure the connector bars (A & B) with M6x15 combination bolts (AA). NOTE : Fully tighten all bolts using the hex wrench (FF).
  • Page 7 Assembly (continued) Inserting the tips Insert the end tips (L) into the side top bar (D). Repeat this step for the other side of the top bar (D). Insert the center tips (Q) into the center lengthways bar (E). Insert the inner tip (S) into the lengthways bar (C). Repeat this step for the other three lengthways bars (C). HAMPTONBAY.COM Please contact 1-855-HD-HAMPTON for further assistance.
  • Page 8 Assembly (continued) Attaching the crossbars Attach the center lengthways bar (E) with the upturned holes to the center of the connector bars (A & B) without the magnet iron plate, using M6x80 bolts (DD). Attach the other side of the center lengthways bar (E) to the center of the connector bars (A & B) using M6x15 ombination bolts (AA) and M6 80 bolts (DD).
  • Page 9 Assembly (continued) Attaching the post base plates to the posts Attach the post base plates (R) to the four posts (H) using M6x15 combination bolts (AA). NOTE : Fully tighten all bolts using the hex wrench (FF). HAMPTONBAY.COM Please contact 1-855-HD-HAMPTON for further assistance.
  • Page 10 Assembly (continued) Attaching the posts to the assembled structure Attach the posts (H) to the assembled structure using M6x15 combination bolts (AA) and M6x80 combination bolts (DD). NOTE : Suggeset using two ladders to assemble this step. A&B...
  • Page 11 Assembly (continued) Attaching the posts to the assembled structure Attach the other two posts (H) to the assembled structure using M6x15 combination bolts (AA) and M6x80 combination bolts (DD). Once all of the bolts are in place, fully tighten the bolts. NOTE : Suggest using two ladders to assemble this step.
  • Page 12 Assembly (continued) Cutting the plastic cable ties Cut the plastic cable ties on the wheels on the top bar (D) and the center lengthways bar (E). NOTE: wheel, others are the plastic wheels. NOTE: The fabric hangers on the side top bar (D) are the plastic wheels. E1 Plastic center fabric wheel E2 Steel rolling wheel L1 Plastic side fabric wheel...
  • Page 13 Assembly (continued) Inserting the short shade rods into the fabric shade Insert the short shade rods (F) into the top slots of the fabric shade (J). HAMPTONBAY.COM Please contact 1-855-HD-HAMPTON for further assistance.
  • Page 14 Assembly (continued) Attaching the short shade rods Attach the four ends of the short shade rods (F) to the front connector bars (A & B) using M6x35 combination bolts (CC). Pull out the elastic ribbons on the two fabric slot ends, as shown on 10-4. 10-1 10-3 A &...
  • Page 15 Assembly (continued) Connecting the long shade rods Insert the long shade rods (G) into the slots at the ends of the fabric shades (J), through the plastic wheels (E1) and rolling wheel (E2), into the remaining slots of the fabric shades (J). Pull the elastic ribbons to the plastic wheel on the side top bar (D), as shown on 11-3 and 11-4.
  • Page 16 Assembly (continued) Installing the protective cover and the ground spikes Attach the protective cover (I) to the side top bars (D) and the center lengthways bar (E) using M6x15 combination bolts (AA). Insert the ground spikes (EE) through the post base plates (R) and into the ground. NOTE : Fully tighten all the bolts using the hex wrench (FF).

  • Page 17: Care And Cleaning

    Assembly (continued) Completing the assembly Ensure all connections are secure before use. Care and Cleaning For best results, clean the pergola with a damp cloth and dry thoroughly. This will help prevent mildew by removing dirt particles that may accumulate. Do not clean with abrasive materials, bleach, or solvents.

  • Page 18: Maintenance

    Maintenance Removing the plastic part from top bars Pull out the plastic part at the end of the side top bars (D) and the center lengthways bar (E) using the hex wrench (FF).
  • Page 19 Maintenance (continued) Replacing the wheels Replace the wheels and lock the plastic part. HAMPTONBAY.COM Please contact 1-855-HD-HAMPTON for further assistance.
  • Page 20 Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service. 8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday 1-855-HD-HAMPTON HAMPTONBAY.COM Retain this manual for future use.
