Operating Instructions

1. The camera will take a picture automatically, then it can be used via flight
controller or manually.
2. If the memory card is used for the first time. After camera self-check, insert
the memory card into the camera and click "OK" button to format, then it can be
used normally.
3. When debugging the camera, it is recommended to connect the camera to the
monitor or TV using HDMI wire.

Camera Shutter Setting

Triggered by Relay

1. Connect the shutter release cable to AUX OUT 5 on flight controller. If there is no PPK module, connect the
PPK cable to AUX OUT 6 on flight controller.
2. Connect the flight controller to the computer using USB or other data links and open the mission planner.

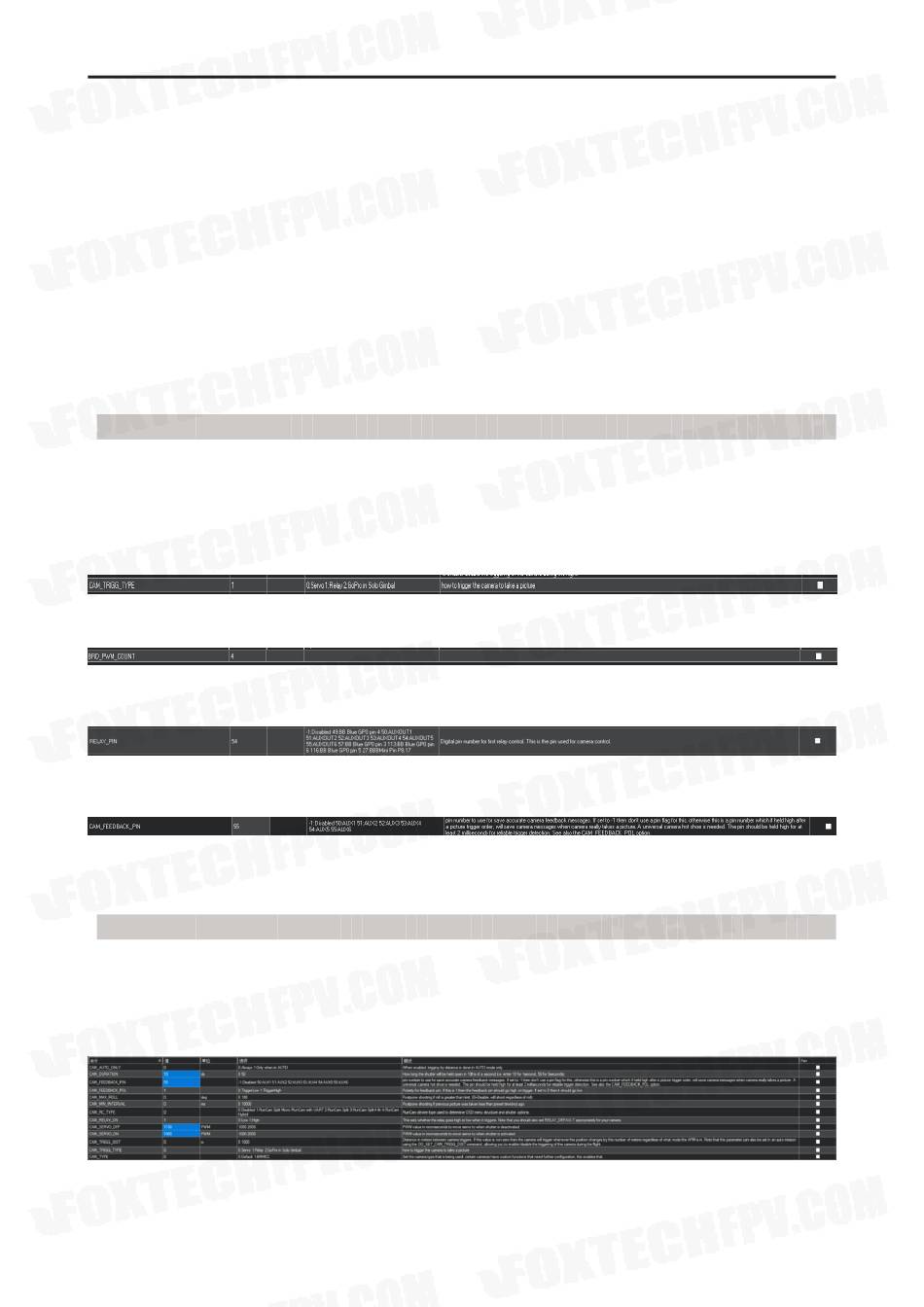

3. Proceed to the CONFIG > FULL PARAMETER LIST and locate the CAM_TRIGG_TYPE parameter. This
parameter must show as "1". If it is not set to 1, change this parameter to 1 before proceeding to the next step.
4. Locate the BRD_PWM_COUNT parameter in the same category, and set it to "4", meaning that only the top
four of AUX ports will emit PWM signal.
5. Locate the RELAY_PIN in the same category and set its value to "54" which means the shutter release cable
connects to the flight controller via AUX OUT 5.
6. Locate the CAM_FEEDBACK_PIN parameter in the same category, and set it to "55", which means the PPK
module connects to flight controller via AUX OUT 6.

Triggered by PWM signal

1. Connect the shutter release cable to AUX OUT 5 on flight controller. If there is no PPK module, connect the
PPK cable to AUX OUT 6 on flight controller.
2. Connect the flight controller to the computer using USB or other data links and open the mission planner.
3. Proceed to the CONFIG > FULL PARAMETER LIST and reset these four parameters:
4. Set the value of BRD_PWM_COUNT in the same category to "5", meaning that only the top five of AUX
ports will emit PWM signal.
Map-A7R II Full-Frame Mapping Camera
