Kichler Lighting 10797 Quick Start Manual

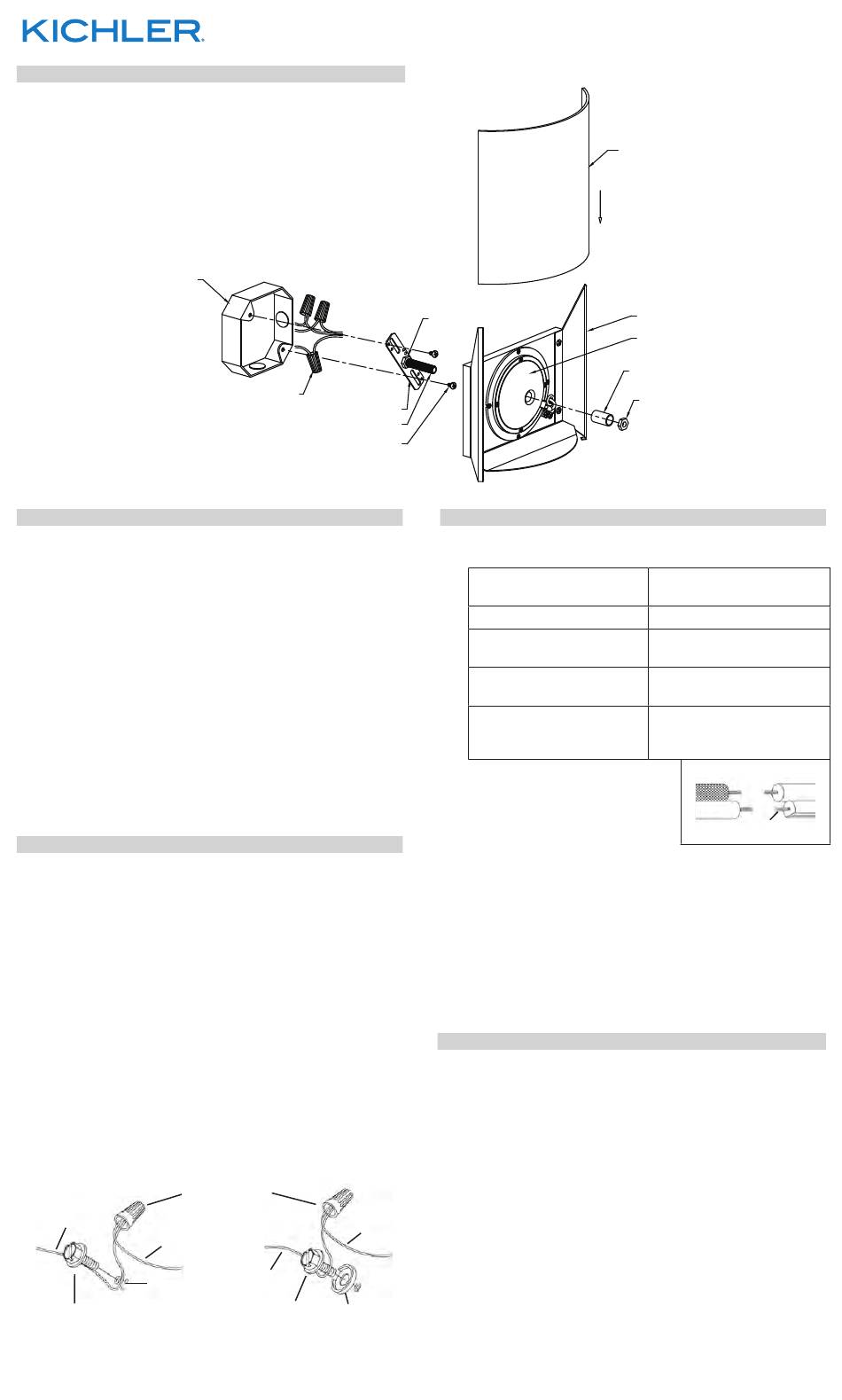

Fixture Diagram
OUTLET BOX
Cautions
CAUTION – RISK OF SHOCK –
Disconnect Power at the main circuit breaker panel or main
fusebox before starting and during the installation.
WARNING:
This fixture is intended for installation in accordance with the
National Electrical Code (NEC) and all local code specifications.
If you are not familiar with code requirements, installation by a
certified electrician is recommended.
DIMMING:
This LED fixture is compatible with most standard incandescent
dimmers, LED dimmers, and electronic low voltage dimmers.
For optimal performance, an electronic low voltage dimmer should
be used.
See kichler.com/dimming for a list of compatible dimmers.
CLEANING:
• Always be certain that electric current is turned off before
cleaning.
• Only a soft damp cloth should be used. Harsh cleaning
products may damage the finish.
Installation Instructions
1) Screw end of threaded pipe into hole in center of
mounting strap so approximately 1/4" of thread is
exposed on the extruded side of mounting strap.
2) Thread hexnut onto the shorter end of the threaded
pipe. Tighten to secure.
3) Connect the mounting strap to the outlet box with the
strap mounting screws.
4) Grounding instructions: (See Illus. A or B)
a) On fixtures where mounting strap is provided with a
hole and two raised dimples, wrap ground wire from
outlet box around green ground screw, and thread
into hole.
b) On fixtures where a cupped washer is provided, put
ground wire from outlet box under cupped washer
and green ground screw and thread screw into hole
in mounting strap.
If fixture is provided with ground wire, connect fixture
ground wire to outlet box ground wire with wire
connector after following the above steps. Never connect
ground wire to black or white power supply wires.
a
OUTLET BOX
GROUND
FIXTURE
GROUND
DIMPLES
GREEN GROUND
SCREW
REV 04-JUNE-2021
WIRE
CONNECTORS
MOUNTING STRAP
THREADED PIPE
STRAP MOUNTING SCREW(S)
WIRE CONNECTOR
OUTLET BOX
GROUND
GREEN GROUND
SCREW
For warranty information please visit: kichler.com/warranty
HEXNUT
Installation Instructions (continued)
5) Make wire connections. Reference chart below for
correct connections and wire accordingly.
Connect Black or Red
Clear, Brown, Gold or
Black without Tracer
Insulated wire (other
than green) with copper
*Note: When parallel wire (SPT
1 & SPT 2) are used. The neutral
wire is square shaped or ridged
and the other wire will be round
in shape or smooth (See illus.)
6) Carefully push wire connections back into outlet box
making sure all connections remain secure.
7) Push fixture to wall, pass the center hole of the fixture
over the threaded pipe on the mounting strap.
8) Slip the spacer onto the threaded pipe and into the
center of the module hole.
9) Slip lockwasher over threaded pipe. Thread hexnut onto
the threaded pipe. Tighten to secure.
10) Carefully lower each diffuser and rest onto the bottom
tabs of the side brackets.
FCC Information:
This device complies with part 15 of the FCC Rules. Operation is subject to
the following two conditions:
1) This device may not cause harmful interference, and
2) This device must accept any interference received, including
interference that may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in
b
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will
FIXTURE not occur in a particular installation. If this equipment does cause harmful
GROUND
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
CUPPED
• Consult the dealer or an experienced radio/TV technician for help.
WASHER
We're here to help
DIFFUSER
SIDE BRACKET
LED MODULE
COVER
SPACER
HEXNUT
Supply Wire to:
Black
*Parallel cord
(round & smooth)
Clear, Brown, Gold or Black
conductor
866-558-5706
Hrs: M-F 9am to 5pm EST
Connect White Supply
Wire to:
White
*Parallel cord
(square & ridged)
with Tracer
Insulated wire (other
than green) with silver
conductor
Neutral Wire
IS-10797-US
