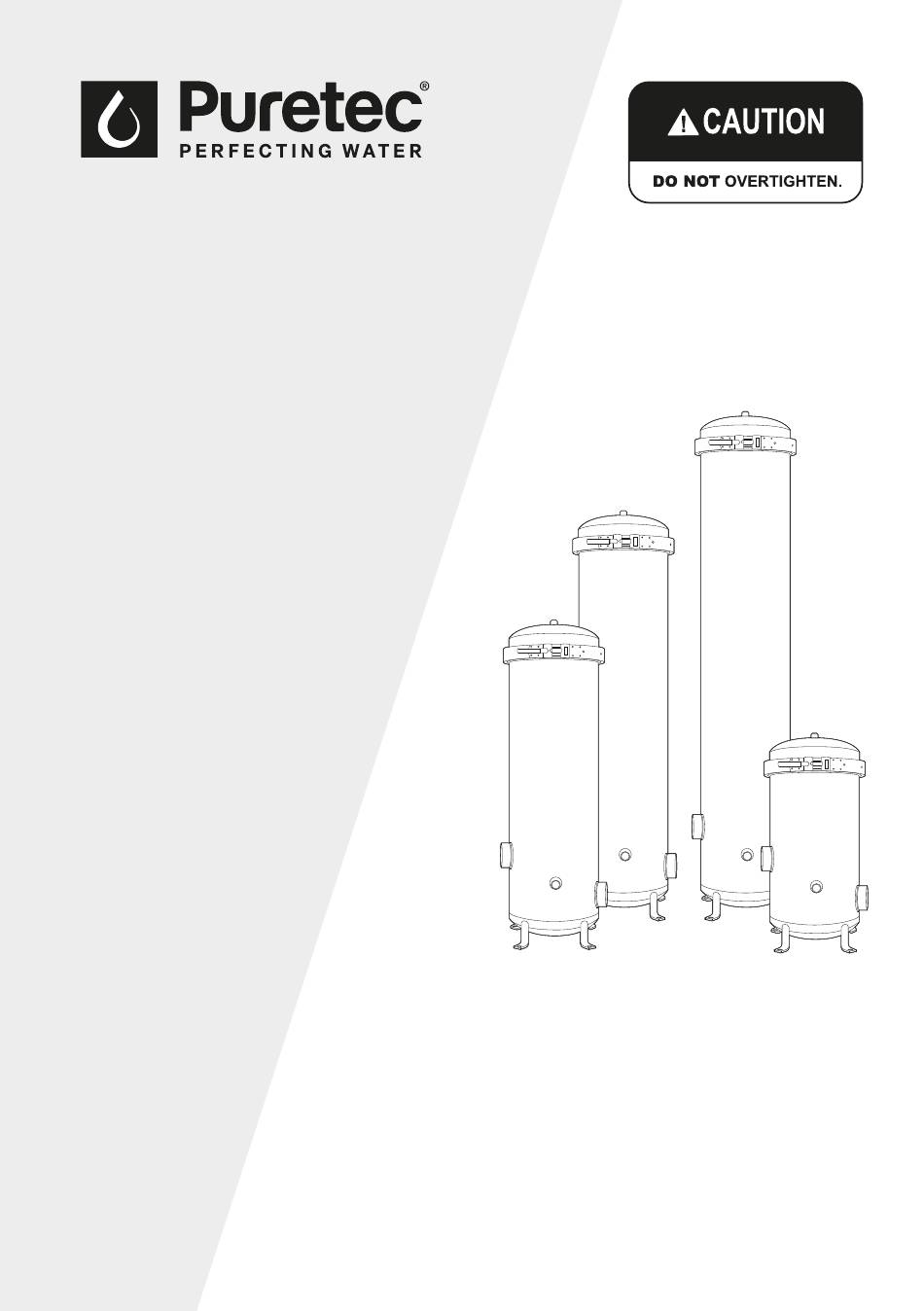

AUG2021

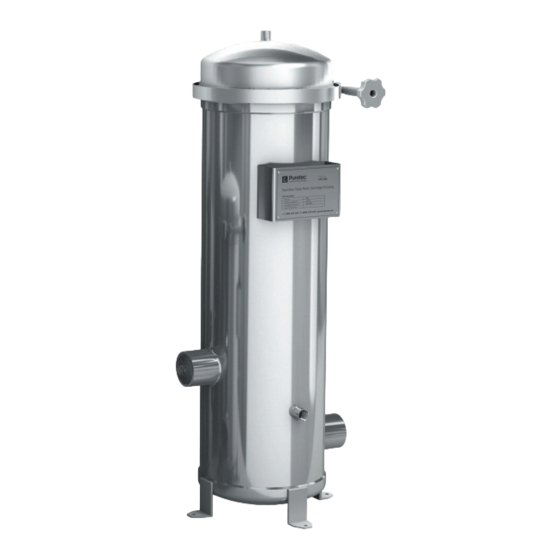

Multicartridge Stainless Steel Water Filter Housing
For correct operation & installation, it is essential to observe these instructions.
SURGE PROTECTION
REQUIRED /
NO EXTENSION CORDS.
User Guide
UFC Series
DO
DO
LIQ
SU
RE
NO

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UFC Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Puretec UFC Series

  • Page 1 SURGE PROTECTION REQUIRED / NO EXTENSION CORDS. User Guide UFC Series Multicartridge Stainless Steel Water Filter Housing For correct operation & installation, it is essential to observe these instructions. AUG2021...
  • Page 2: Table Of Contents

    Fig. 4 - Ideal Installation ....................11 Before Installation ........................ 12 Installation ..........................13 Cartridge Filter Replacement ..................14 Warranty ............................ 16 Installation Record Product Information Distributor: Installer: Phone: Date Installed: Installation & Operation Manual Copyright © Puretec Pty Ltd 2021...
  • Page 3: Puretec Customer Service

    Simple to install and maintain, these housings are ideal for schools, restaurants, farms, institutions and industrial use. The Puretec UFC Series is compatible with a complete range of filter cartridges adding to their versatility.
  • Page 4 Pressure Plate Wing Nut (Securing Rod) Springs Securing Rod Vessel Cartridge Post Filter Cartridge (not included) INLET Base Nut (Securing Rod) Cartridge Pedestal Cartridge Seat Plate Drain OUTLET Support Leg Installation & Operation Manual Copyright © Puretec Pty Ltd 2021...
  • Page 5 Dimensions Fig. 2 - Dimensions (UFC714C, UFC716C & UFC726C) UFC726C UFC714C & UFC716C Multicartridge Stainless Steel Water Filter Housing...
  • Page 6 Dimensions Fig. 3 - Dimensions (UFC736C & UFC746C) 1395 1140 1140 UFC736C UFC746C Installation & Operation Manual Copyright © Puretec Pty Ltd 2021...
  • Page 7: Individual Model Specifications

    Specifications UFC714C & UFC716C UFC714C UFC716C Model: Maximum Operation Pressure: 1034 kPa Operating Temperature Min/Max: 4 - 75°C (protect from freezing) Connection Size: 2" BSP Cartridge Size: 2.5" x 10" Cartridge Capcity: 7 x 10" cartridges Stainless Steel Grade: Weight: 21 kg Volume: 23 L...
  • Page 8 O-ring, EPDM UFC-SPORV O-ring, Viton (optional) UFC-SPSPG Spring INCLUSIONS (pre-assembled) Stainless Steel Filter Housing (Vessel) Top Cover Clamp O-ring Cartridge Post Assemblies & Springs Pressure Plate Vent Valve User Guide Installation & Operation Manual Copyright © Puretec Pty Ltd 2021...
  • Page 9 Specifications UFC736C Maximum Operation Pressure: 1034 kPa Operating Temperature Min/Max: 4 - 75°C (protect from freezing) Connection Size: 2" BSP Cartridge Size: 2.5" x 30" Cartridge Capcity: 7 x 30" cartridges Weight: 28 kg Volume: 45 L Flow: 397 Lpm REPLACEMENT PARTS UFC-SPCAP Top Cover (top cap)
  • Page 10 O-ring, EPDM UFC-SPORV O-ring, Viton (optional) UFC-SPSPG Spring INCLUSIONS (pre-assembled) Stainless Steel Filter Housing (Vessel) Top Cover Clamp O-ring Cartridge Post Assemblies & Springs Pressure Plate Vent Valve User Guide 10 Installation & Operation Manual Copyright © Puretec Pty Ltd 2021...
  • Page 11 The filter housing must be installed and fixed on level ground. DO NOT install on uneven ground. • The UFC Series filter housing is for water filtration only. Not suitable for waste water filtration, compressed air or other gases. •...
  • Page 12: Before Installation

    INSTALLATION MUST BE COMPLETED BY A LICENCED PLUMBER. FAULTY OPERATION DUE TO UNQUALIFIED PERSONS WILL RESULT IN VOIDED WARRANTY COVERAGE. 12 Installation & Operation Manual Copyright © Puretec Pty Ltd 2021...
  • Page 13: Installation

    Installation Installation Adjust support legs and align the filter housing in the correct position. Firmly tighten the legs. 2. Position the unit in a suitable area with a sturdy base. Use bolts (not provided) to fasten the unit to the base via the provided holes in the feet of the legs. For the location of the inlet and outlet connections see Fig.
  • Page 14: Cartridge Filter Replacement

    Remove each filter cartridge and dispose of them according to local guidelines. Periodically remove and clean the vessel and check the vessel and O-ring for damage and replace if necessary. 14 Installation & Operation Manual Copyright © Puretec Pty Ltd 2021...
  • Page 15 Cartridge Filter Replacement Remove all packaging from the new cartridge, including any wraps (if applicable). Align the center of the filter cartridge with the cartridge post and insert it. Repeat for each cartridge. 10. Centre the springs over the top of each cartridge hole (spring cover downward). 11.
  • Page 16: Warranty

    Warranty/Australia This warranty is given by Puretec Pty Ltd, ABN 44 164 806 688, 37-43 Brodie Road, Lonsdale SA Australia 5160, telephone no. 1300 140 140 and email at sales@puretec.com.au.
  • Page 17 Multicartridge Stainless Steel Water Filter Housing...
  • Page 18 18 Installation & Operation Manual Copyright © Puretec Pty Ltd 2021...
  • Page 19 Multicartridge Stainless Steel Water Filter Housing...
