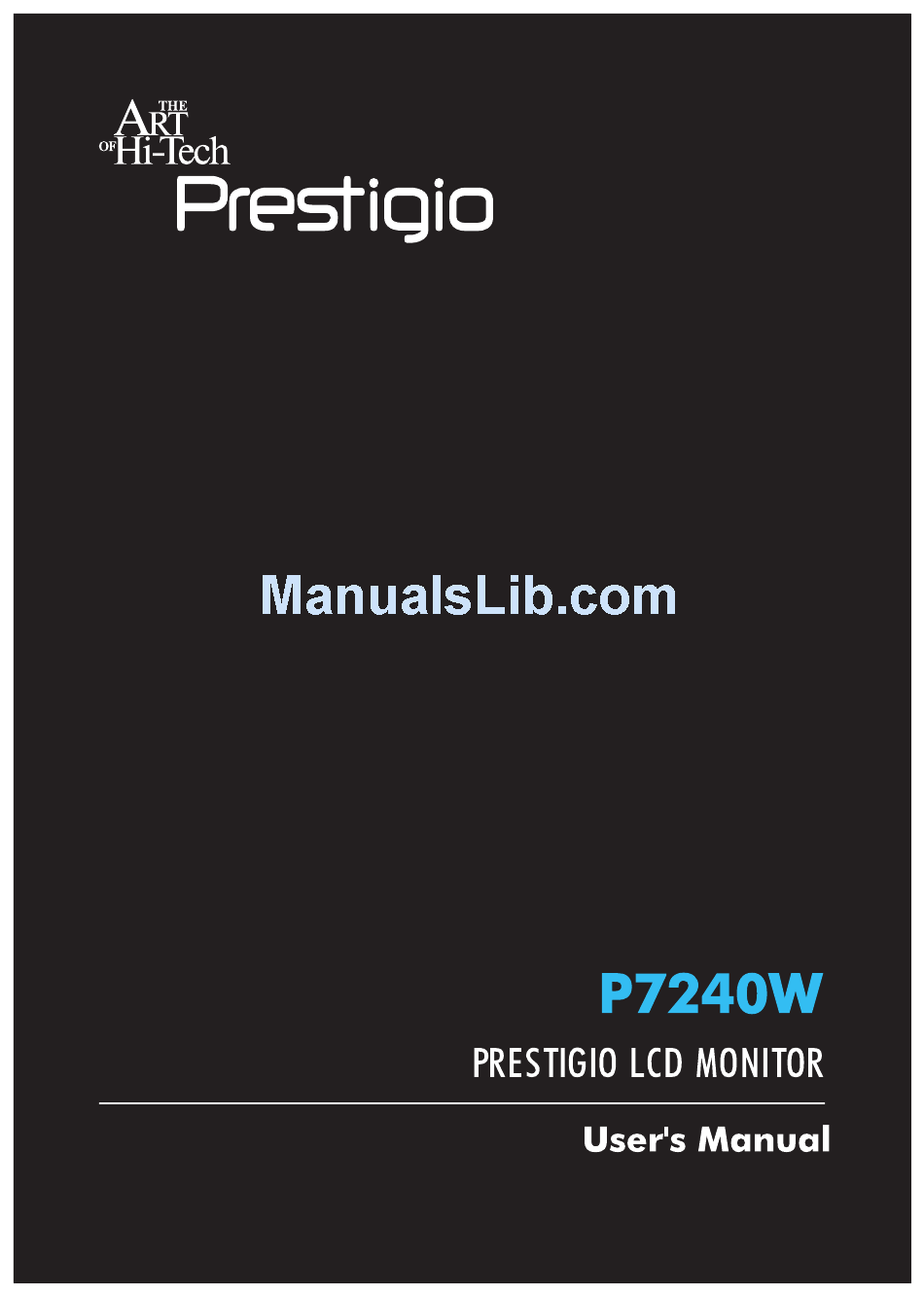

- Page 2 Right Posture in Operating Monitor Right posture is important when using a computer. For the purpose of lessening eyestrain and be good for health, the right posture should be adopted as following: Ajust the monitor to the angle that Relax shoulder and does not reflect arms, and keep the light...
- Page 3 CONTENTS Important Safety Instruction Product Features Cable Connection Front Panel Controls Specification Standard Timing Chart Repair Confirmation...
- Page 4 The right operation of the monitor is to guard against accident, danger and financial loss, and these principles must be abided by. Warning : There may be electric pulse or serious damage. Attention: There may be slight hurting or product damage. Warning Do not insert plugs on the Prevent the plug form shaking, and...
- Page 5 Warning The plug must be connected Do not place monitor at place of dust, with earthing socket. damp or place easily spilled by water. It is easy to catch on electric shock. It is easy to catch on electric shock Do not place monitor on the Keep away from foreign material.
- Page 6 Attention Unplug the power cord when do Clean off the power cord plug with towel not use it for long time. right away when the plug with dust or water. It is easy to catch on electric shock fire. It is easy to catch on fire. Unplug power cord and clean with clean First confirm if the button, power rag.
- Page 7 ATTENTION Do not press hard on the monitor with Do not place heavy objects on monitor hands or scratch it with sharp metal, or place monitor on other object. do not put the monitor next to object It is easy to breakdown or damage the with magnetism.
-
Page 8: Product Features
Product Features Design for effective use in small space. Serving as electricity saving monitor with low power consumption and maximum heat productivity, it provides more convenient and comfortable surroundings. If do not use the monitor for long time, change the monitor to power save state automatically to reduce the power consumption. - Page 9 NOTES: 1. To connect signal cable and plug power cord to assure monitor safety on process of installation. 2. To avoid monitor damaged, please handle the centre part of front cover while it installation. AUDIO MONITOR INPUT CONNECTIONS: 1. Audio input 2.
-
Page 10: Front Panel Controls
Front Panel Controls Press it to open the OSD Menu, toselect Menu Menu options when the OSD Menu is displayed. Up selection button; option. Hot key to adjust brightness when OSD menu is not shown. Down selection button; Increase the value of a selected option. -
Page 11: Display Mode
Display Mode DISPLAY MODE Hori.sync.(kHz) Vert.Snyc.(Hz) Pixel.Clock(MHz) Sync.Polarity(H/V) 25.175 31.469 59.940 VGA 640x480 31.500 37.861 72.809 37.500 75.000 31.500 35.156 56.250 36.000 37.879 60.317 40.000 SVGA 800x600 48.077 72.188 50.000 46.875 75.000 49.500 65.000 48.363 60.004 XGA 1024x768 56.476 70.069 75.000 60.023 75.029... -
Page 12: Pin Signal
Signal Connector D-SUB connector SIGNAL SIGNAL Ground Blue Ground 1 2 3 4 5 6 7 8 9 …. 17 …... DVI Signal DATA2- DATA2+ DDC CLK DATA4- DATA4+ DDCDATA A-VSYNC DATA1- DATA1+ DATA3- DATA3+ VCC(5V) H-PLUG DATA0- DATA0+ DATA5- DATA5+ CLK- CLK+... -
Page 13: Troubleshooting
Panel Measure Available pels rate higher than 99.99% on each LCD monitor. However, less than 0.01% pels results in bright and dark dots while displaying. Trouble Shooting Here some solutions for customers to solve installation troubles. Provided the customers can’t solve the problems described as below, please get back to the dealer for maintenance.
