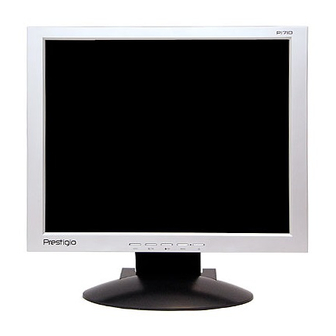

Prestigio P1710 User Manual
Hide thumbs Also See for P1710:

Advertisement

Quick Links

Before operating the monitor please read this manual thoroughly.
This manual should be retained for future reference.
NOTE: This specification is subject to change without notices.
FCC Class B Radio Frequency Interference Statement
WARNING:(FOR FCC CERTIFIED MODELS)
NOTE:This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy, and if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of
the following measures:
1. Reorient or relocate the receiving antenna.
2. Increase the separation between the equipment and receiver.
3. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
4. Consult the dealer or an experienced electric technician for help.
NOTICE
1. The changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
2. The manufacturer is not responsible for any radio or TV interference caused by unauthorized
modification to this equipment. It is the responsibilities of the user to correct such interference.
WARNING:
To prevent fire or shock hazard, do not expose the monitor to rain or moisture. Dangerous high voltages are present inside
the monitor. Do not open the cabinet. Refer servicing to qualified personnel only.
PRECAUTIONS
• Do not use the monitor near water, or lay it at a moisture place.
• Openings in the back of the cabinet are provided for ventilation. To ensure reliable operation of the monitor and to
protect it from overheating, be sure these openings are not blocked or covered.
• The monitor should be operated only from the type of power source indicated on the label. If you are not sure of the
type of power supplied to your home, consult your dealer or local power company.
• Unplug the unit during a lightning storm or when it will not be used for long periods of time. This will protect the
monitor from damage due to power surges.
• Do not overload the wall outlets and extend cords. Overloading can result in fire or electric shock.
• Do not attempt to service the monitor by yourself, opening or removing covers can expose you to dangerous voltages
and other hazards. Please refer all servicing to qualified service personnel.
PRESTIGIO P1710

FOR YOUR SAFETY

1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the P1710 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Prestigio P1710

  • Page 1: For Your Safety

    • Do not overload the wall outlets and extend cords. Overloading can result in fire or electric shock. • Do not attempt to service the monitor by yourself, opening or removing covers can expose you to dangerous voltages and other hazards. Please refer all servicing to qualified service personnel. PRESTIGIO P1710...
  • Page 2: Special Notes On Lcd Monitors

    External adapter to LCD monitor’s DC-power-input. The AC-power cord may be connected to either a wall power outlet or the power outlet socket on your PC, depending on the type of power cord supplied with your LCD monitor. PRESTIGIO P1710...
  • Page 3: Controls And Connectors

    • You are able to adjust the monitor’s angle from 5°to 15°. NOTES • Do not touch the LCD screen when you change. It may cause damage or break the LCD screen. • Careful attention is required not to catch your fingers or hands when you change the angle. PRESTIGIO P1710...
  • Page 4: General Instructions

    • To keep the monitor looking new, periodically clean it with a soft cloth. Stubborn stains may be removed with a cloth lightly dampened with a mild detergent solution. Never use strong solvents such as thinner, benzene, or abrasive cleaners, since these will damage the cabinet. As a safety precaution, always unplug the monitor before cleaning it. PRESTIGIO P1710...
  • Page 5: How To Adjust A Setting

    Adjust the image focus 3.4H-Position Adjust the image horizontal position 3.5V-Position Adjust the image vertical position. 3.6Exit 4. TOOLS 4.1OSD TIMEOUT Control the quit time of quit the OSD menu automatically. 4.2 OSD H.Position Adjust the horizontal position of OSD menu. PRESTIGIO P1710...
  • Page 6: Color Temp

    • The character twisted That means your monitor parameter was in wrong resolution, please check if your VGA-CARD supports 720x400@70Hz Generally speaking, most of the Dos mode was set by VGA-CARD in resolution 720x400@70Hz, but minor was set in 640x400@70Hz PRESTIGIO P1710...
  • Page 7: Plug And Play

    After the video input signal is restored, full power is restored and the display is automatically redrawn. The appearance is similar to a “Screen Saver” feature except the display is completely off. The display is restored by pressing a key on the keyboard, or clicking the mouse. PRESTIGIO P1710...
  • Page 8: Technical Support (Faq)

    PHASE adjust the phase of the pixel clock signal. With a wrong phase adjustment the picture has horizontal disturbances in light picture. For PHASE and CLOCK adjustment use “dot-pattern” or win 95/98/2000/XP shut-down mode pattern. PRESTIGIO P1710...
  • Page 9: Error Message And Possible Solution

    56.00 Hz 800×600 37.879 kHz 60.00 Hz 800×600 48.077 kHz 72.00 Hz 800×600 46.875 kHz 75.00 Hz 1024×768 48.363 kHz 60.00 Hz 1024×768 56.476 kHz 70.00 Hz 1024×768 60.023 kHz 75.00 Hz SXGA 1280×1024 63.981kHz 60.020Hz 1280×1024 79.976kHz 75.025Hz PRESTIGIO P1710...
  • Page 10 CONNECTOR PIN ASSIGNMENT FOR VGA SIGNAL INPUT PIN NO. DESCRIPTION PIN NO. DESCRIPTION Green Ground Blue DDC-Serial Data Ground H-Sync R-Ground V-Sync G-Ground DDC-Serial Clock B-Ground PRESTIGIO P1710...
  • Page 11: Specifications

    Exit Factory Reset EPA Energy Star ON Mode <40W(For 2 CCFL) OFF Mode <3W Regulatory Compliance FCC, CB, CE, UL Chief Parameter (Different parameter with different model) Viewable angle (Horizontal/Vertical) 140°/130° Response time Contrast 500:1 Brightness 300 cd/m PRESTIGIO P1710...
  • Page 12: Checking The Contents Of The Package

    CHECKING THE CONTENTS OF THE PACKAGE The product package should include the following items: 1. LCD Monitor 1 set 2. Owner's Manual 1 pcs 3.Power Cord 1 pcs 4.VGA signal cable 1pcs 5. Audio cable 1 pcs 6.Adapter 1 pcs PRESTIGIO P1710...
