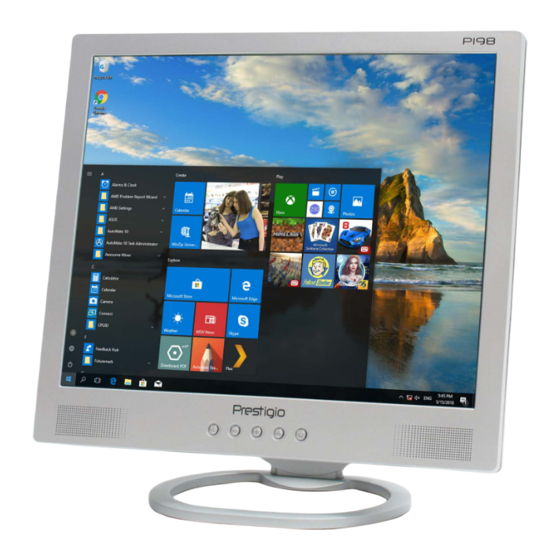

Prestigio P198 User Manual

Prestigio P198 User Manual

19" tft color monitor
Hide thumbs Also See for P198:

Advertisement

Quick Links

Federal Communications Commission (FCC) Statement
This Equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of
the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no guar-
antee that interference will not occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Warning:
A shielded-type power cord is required in order meet FCC emission limits and also to prevent interference to the nearby
radio and television reception. It is essential that only the supplied power cord be used.
Use only shielded cables to connect I/O devices to this equipment.
You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could
void your authority to operate the equipment.
IMPORTANT SAFEGUARDS
Warning:
1. Read all of these instructions.
2. Save these instructions for later use.
3. Unplug this monitor from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp
cloth for cleaning.
4. Do not use attachments not recommended by the monitor manufacturer as they may cause hazards.
5. Do not use this monitor near water. For example near a bathtub, washbowl, kitchen sink, or laundry tub, in a wet
basement, or near a swimming pool, etc..
6. Do not place this monitor on an unstable cart, stand, or table. The monitor may fall, causing serious injury to a child or
adult, and serious damage to the appliance. Use only with a cart or stand recommended by the manufacturer or
sold with monitor. Wall or shelf mounting should follow the manufacturer's instructions, and should use a mount-
ing kit approved by the manufacturer.
7. Slots and openings in the cabinet and the back or bottom are provided for ventilation, and to insure reli-able opera-
tion of the television receiver and to protect it from overheating, these openings must not be blocked or covered.
The openings should never be blocked by placing the monitor on a bed, sofa, rug, or other similar surface. This
monitor should never be placed near or over a radiator or heat register. This monitor should not be placed in built-
in installation such as a bookcase unless proper ventilation is provided.
8. This monitor should be operated only from the type of power source indicated on the marking label. If you are not
sure of the type of power supplied in your home, consult your monitor dealer or local power company
9. This monitor is equipped with a three-wire grounding type plug, a plug having a third (grounding) pin.
PRESTIGIO P198
3

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the P198 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Prestigio P198

  • Page 1 8. This monitor should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supplied in your home, consult your monitor dealer or local power company 9. This monitor is equipped with a three-wire grounding type plug, a plug having a third (grounding) pin. PRESTIGIO P198...
  • Page 2 Unauthorized substitutions may result in fire, electric shock, or other hazards. 18. Upon completion of any service or repairs to this monitor, ask the service technician to perform routine safety checks to determine that the monitor is in safe operating condition. PRESTIGIO P198...
  • Page 3: Installing The Monitor

    2. Plug one end of the 15pin-signal cable to the monitor and the other end to the video signal connector at the rear of the system. Tighten the two screws on the cable connector. 3. Connect the DC power cord to the DC jack. 4. Connect the power cable. PRESTIGIO P198...
  • Page 4: Function Adjustment

    Black Level - Adjust the black Level in the image. Exit - Close the Video OSD menu. 3.Audio Volume - Adjust the volume of speakers. Balance - Adjust the speaker’s volume to right side or left side. Exit - Exit the Audio OSD menu. PRESTIGIO P198...
  • Page 5: Micro-Controller Features

    The micro-controller automatically detects the video board installed in your system. When you turn on the monitor, the micro-controller first checks the display mode memory stored in the user setting area of the video board, and then the factory presetting area. It then adjusts to the proper display mode. PRESTIGIO P198...
  • Page 6: Display Modes Memory

    7. Signal Connector Pin-outs To connect VGA, 8514A or IBM-compatible graphics adapters, use a 15 pin mini D-type male connector. PRESTIGIO P198...
  • Page 7: Power Saving Feature

    803299/94 the total time from indicated inactivity to Power Saving position A2 (VESA OFF) must not be set more than 70 minutes. We recommend you switch off the monitor when you do not intend to use it for awhile. PRESTIGIO P198...
  • Page 8 9. Specifications - Model P198 LCD Panel Size 19” Pixel Pitch: 0.294mm Brightness: 250 cd/m2 Contrast Ratio: 600 : 1 Response Time: 12 ms(max.) Maximum viewable size 19 inch (48.3cm) Video Input Analog 15-pin, D-sub connector Digital DVI connector(option) Display area 376mmx301mm(H×V)
