User Manual EtherCAT Slave / IEC61850 Server
Document code: MN67E15_ENG
Revision 1.000
Page 11 of 28
Industrial Electronic Devices
ETHERNET:
The Ethernet port is used for programming the device and for IEC61850 communication.

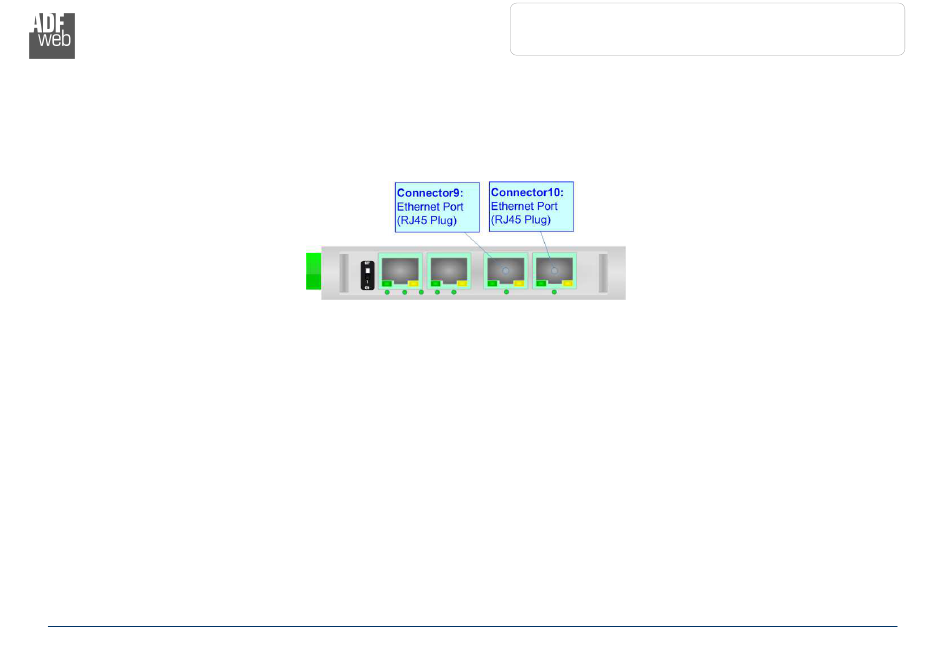

Ethernet connection and the updating of the converter must be made using Connector9 and/or Connector10 of the HD67E15-A1 with at least
a Category 5E cable. The maximum length of the cable should not exceed 100m. The cable has to conform to the T568 norms relative to
connections in cat.5 up to 100 Mbps. To connect the device to an Hub/Switch is recommended the use of a straight cable, to connect the
device to a PC/PLC/other is recommended the use of a cross cable.
