SET COMMUNICATION:

This section define the fundamental communication parameters of two buses, EtherCAT and
Ethernet.
By Pressing the "Set Communication" button from the main window for SW67E15 (Fig. 2)
the window "Set Communication" appears (Fig. 3).
The means of the fields for "EtherCAT Slave" are:
In the field "Revision Number" the revision number of the converter is defined;
In the field "Slave Name" the name of the converter is defined;
In the field "Node Address" the ID of the converter is defined.
The means of the fields for "IEC61850 Server" are:
In the fields "IP Address" the IP address for IEC61850 side of the converter is
defined;
In the fields "SubNet
defined;
In the fields "Gateway" the default gateway of the net is defined. This feature can be
enabled or disabled pressing the Check Box field. This feature is used for going out of
the net;
In the field "Port" the port used for IEC 61850 communication is defined;
If the field "Password" the password used for accessing to IEC 61850 variables is
defined.
ADFweb.com S.r.l.
Mask" the SubNet Mask for IEC61850 side of the converter is
User Manual EtherCAT Slave / IEC61850 Server
Document code: MN67E15_ENG

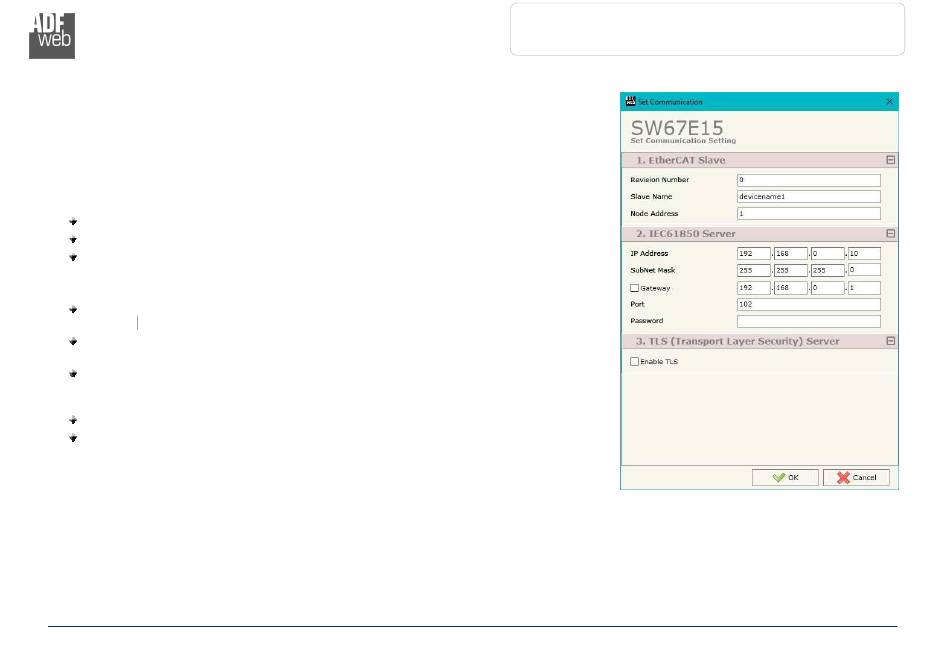

Figure 3: "Set Communication" window
