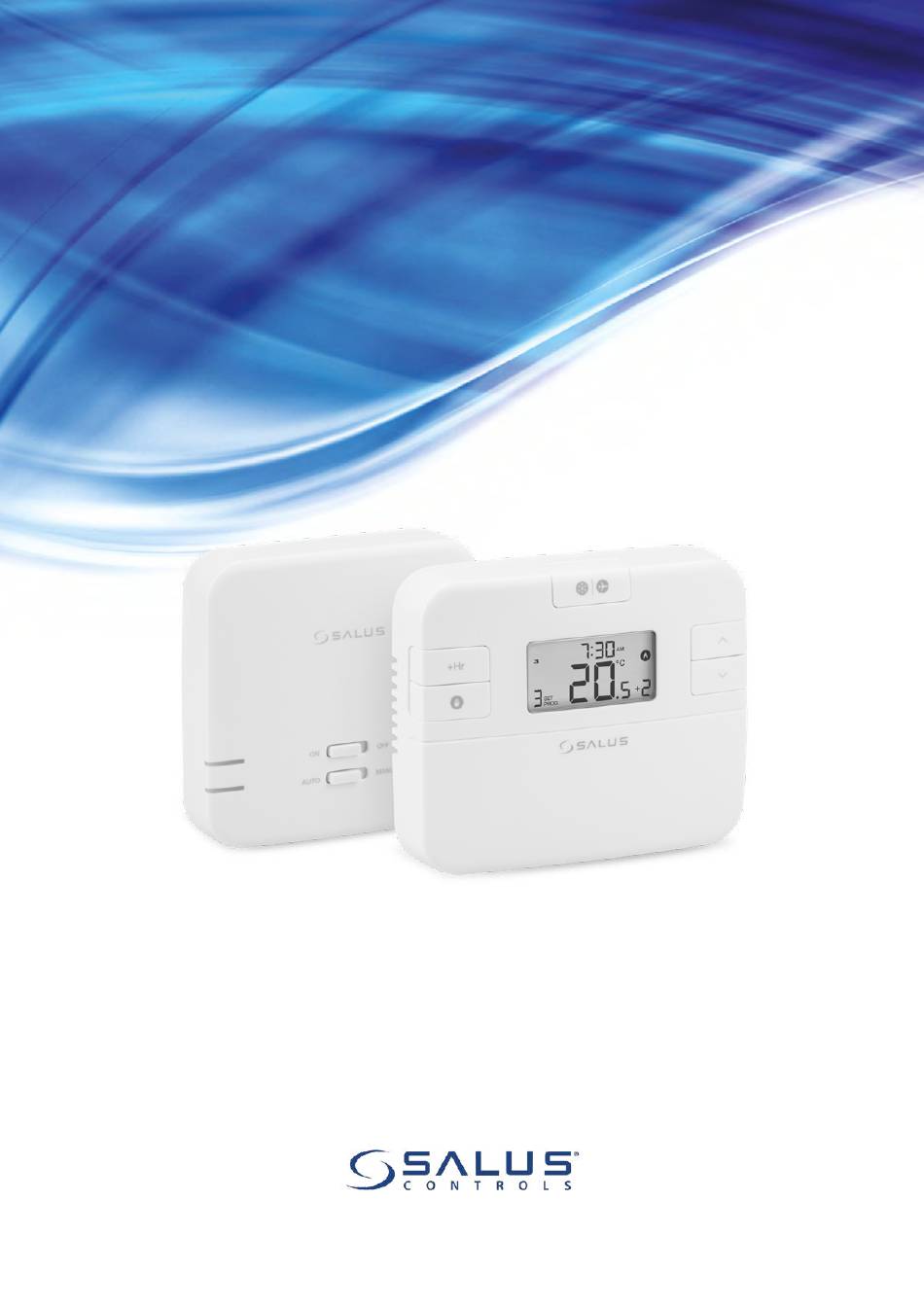

- Page 1 RT510RF THERMOSTAT - FULL USER MANUAL...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. Introduction ................................4 1.1 Product Compliance ..................................4 1.2 Safety Informations ..................................4 2. Product Overview ...............................5 2.1 Package content ....................................6 2.2 Proper thermostat location ................................6 3. RXRT510 receiver ................................7 3.1 Receiver’s switches description ..............................7 3.2 LED indications in the receiver ...............................8 3.3 Wall mounting of the receiver ...............................9 3.4 Connection description ................................10 4. -
Page 4: Introduction
1. Introduction 1.1 Product Compliance This product complies with the essential requirements and other relevant provisions of Directives 2014/53/EU and 2011/65/EU. The full text of the EU Declaration of Conformity is available at the following internet address: www.saluslegal.com. 1.2 Safety Informations •... -
Page 5: Product Overview

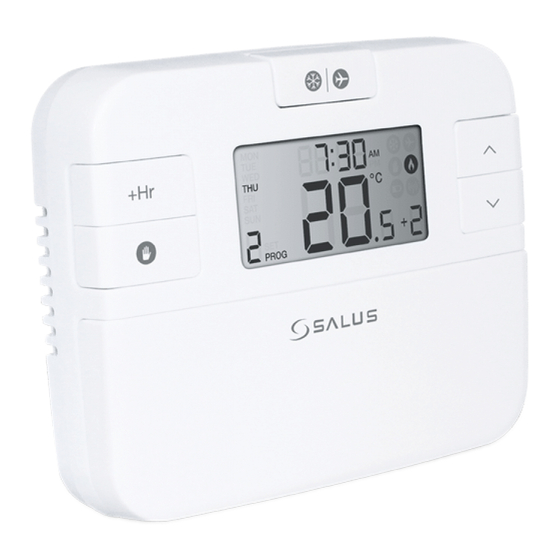

2. Product Overview The RT510RF wireless room thermostat simply switches the heating system on and off as necessary. It works by sensing the air temperature, switching on the heating when the air temperature falls below the thermostat setting, and switching it off once this set temperature has been reached. -
Page 6: Package Content
2.1 Package content 1) RT510TX thermostat 2) RXRT510 receiver 2) 2x AA batteries 3) Short instruction 4) Mounting screws 2.2 Proper thermostat location Please note: The ideal position to thermostat mounting is about 1,5m under floor level far from heating or cooling sources. Thermostat can’t be exposed to sunlight or any extreme conditions like for example draft. -
Page 7: Rxrt510 Receiver
3. RXRT510 receiver The thermostat communicates wirelessly with the RXRT510 receiver. The receiver should be supplied with 230VAC, the maximum load of the receiver is 16A. Avoid installing the device in places directly exposed to water, moisture and air condensation. The RXRT510 receiver can operate in two different modes - AUTO (automatic) and MANUAL (manual). -
Page 8: Led Indications In The Receiver
3.2 LED indications in the receiver The status of the RXRT510 receiver is indicated by two LEDs. These are LEDs with the following colors: - red (upper one), - green (lower one). A detailed explanation of the meaning of the LEDs can be found in the table below: DESCRIPTION The receiver is connected to the 230V power supply and is paired with the thermostat. -
Page 9: Wall Mounting Of The Receiver
3.3 Wall mounting of the receiver Wall mounting the receiver: drill two ø6 mm holes in the wall. Insert the plugs and, by putting the plate to the wall (included in the set), put the two screws through the holes and then screw them in. Connect the necessary cables to the receiver. Next, hang the receiver on the board using the handles designed in the receiver, marked in the picture below. -
Page 10: Connection Description
RXRT510 RXRT510 16 (5) A 3.4 Connection description AC 230V AC 230V RT510TX RT510 RXRT510 RXRT 2 x AA AC 230V AC 230V RT510 RXRT510 RXRT510 16 (5) A 2 x AA C 230V AC 230V RT510TX RT510 RXRT510 RXRT510 2 x AA 16 (5) A RT510... -
Page 11: Before You Start (First Power Up)
4. Before you start (first power up) 4.1 LCD icon description 1. Day of the week 9. Heating Mode On 2. Program number 10. Manual Mode On 3. Program indicator 11. Holiday Mode On 4. Settings 12. Frost Protection Mode On 5. -
Page 12: First Power Up Sequence And Configuration
4.3 First power up sequence and configuration To power up the thermostat you have to put the batteries inside. Then thermostat will display following sequence: TEST / PAIRING TEST / PAIRING SELECT SELECT Remove the protection foil and insert After that, thermostat will 2xAA batteries by removing front automatically power up and it will cover. -
Page 13: User Settings
5. User settings 5.1 Time settings In this chapter you can set time and day of the week. RT510TX thermostat has no date settings. You can choose the day of the week (from monday to sunday). Please follow the steps below: TEST / PAIRING TEST / PAIRING SELECT... -
Page 14: Operating Modes
6. Operating modes RT510TX thermostat offers few operating modes: - Manual mode - temperature setpoint is set by user manually and it’s maintained until user change the setpoint again or switch to another mode. - Schedule mode - thermostat works according to set schedule by user. It can be programmed in 5+2 (MON to FRI and weekend separately) mode or daily (every day of the week separately) mode. -
Page 15: Schedule Mode
6.2 Schedule mode In this mode, user can set the schedules for thermostat (temperature setpoints for specific periods of time). There are two types of schedules: 5/2 (working days+weekends) and 7d (7 idividual schedules for each day separately). Schedule type can be choosen by parameter d04 (please refer to Installer mode section). -
Page 16: Temporary Override Mode
6.3 Temporary override mode This function is available only in schedule mode (AUTO). If a new setpoint temperature will be set during the schedule - it will be maintained until next time interval starts according to programmed schedule. TEST / PAIRING TEST / PAIRING SELECT SELECT... -
Page 17: Frost Protection Mode
6.5 Frost protection mode In this mode the setpoint temperature is automatically set to frost setpoint to prevent pipes from frosting. If the room temperature is lower than the frost setpoint, frost protection will be enabled. To set frost protection mode follow steps below: TEST / PAIRING TEST / PAIRING SELECT... -
Page 18: Sleep Mode
6.7 Sleep mode In sleep mode thermostat stay in frost protection temperature but it is switched off and doesn’t consume any energy and it is impossible to make an action until you activate the thermostat again. To activate/deactivate sleep mode follow steps below: TO ACTIVATE SLEEP MODE: 3 sec TEST / PAIRING... -
Page 19: Temperatures Outside Operating Range
6.8 Temperatures outside operating range Temperatures below 10 °C are displayed without the leading ‘0’ . Temperatures exceeding the measurable range will be indicated by ‘HI’ for temperatures above the upper limit, and ‘LO’ for temperatures below the lower limit, as shown in the images. 6.9 Low battery detection Battery voltage is checked every minute. -
Page 20: Installer Mode
7. Installer mode To enter installer parameters please follow steps below. Please refer to parameters table description before any changes. Use buttons to move up or down between all parameters. Every change/selection confirm by button. 3 sec TEST / PAIRING TEST / PAIRING SELECT SELECT... -
Page 21: Rt510Tx Thermostat Pairing With The Receiver
The word PAIRING in the user settings means the function of synchronizing the transmitter with the receiver again, if it has been removed. WARNING! IN THE SET RT510RF THE THERMOSTAT IS FACTORY PAIRED WITH THE RECEIVER! In order to pair the devices correctly, you must first prepare the receiver for synchronization! -
Page 22: Test The Pairing Process
Receiver will go back to normal work to return to the main screen. mode. If you purchased an RXRT510 or RT510TX and intend pairing with other devices in the 5x5 range, please refer to the Receiver Units manual or the relevant manuals available at www.salus-controls.eu... -
Page 23: Factory Reset
10. Factory Reset To RESET RT510TX thermostat to it’s factory default settings please follow steps below: When you want to change the batteries your device will use the internal memory to backup your TEST / PAIRING SELECT settings. You have 30 seconds to −... -
Page 24: Cleaning And Maintenance
The RT510TX thermostat requires no special maintenance. Periodically, the outer casing can be wiped clean using a dry cloth (please DO NOT use solvents, polishes, detergents or abrasive cleaners, as these can damage the thermostat). There are no user serviceable parts within the unit; any servicing or repairs could only be carried out by Salus Controls or their appointed agents. 12. Technical Informations Transmitter’s power supply... -
Page 25: Warranty
13. Warranty SALUS CONTROLS warrants this product to be free from any defects in material or workmanship and to perform as specified for a period of five years from the date of installation. SALUS CONTROLS reserves the sole responsibility for breach of this warranty by repairing or replacing the defective product. This product includes software that matches the distributor’s identification at the time of sale. - Page 26 SALUS Controls is a member of the Computime Group. Maintaining a policy of continuous product development SALUS Controls plc reserve the right to change specification, design and materials of products listed in this brochure without prior notice. Ver. 2 Issued: 29 III 2020 Soft version: 1.7...
