Connecting Ethernet; Connecting The Serial Device(S) - Perle IOLAN SCG Quick Start Manual

green at the end of the boot sequence, see the IOLAN SCG Hardware
Installation Guide for more information.

Connecting Ethernet

Connect the LAN cable from the Ethernet connector on the back of the
IOLAN SCG to your network. An Cat5e cable is recommended for 1000
Mbps connections.

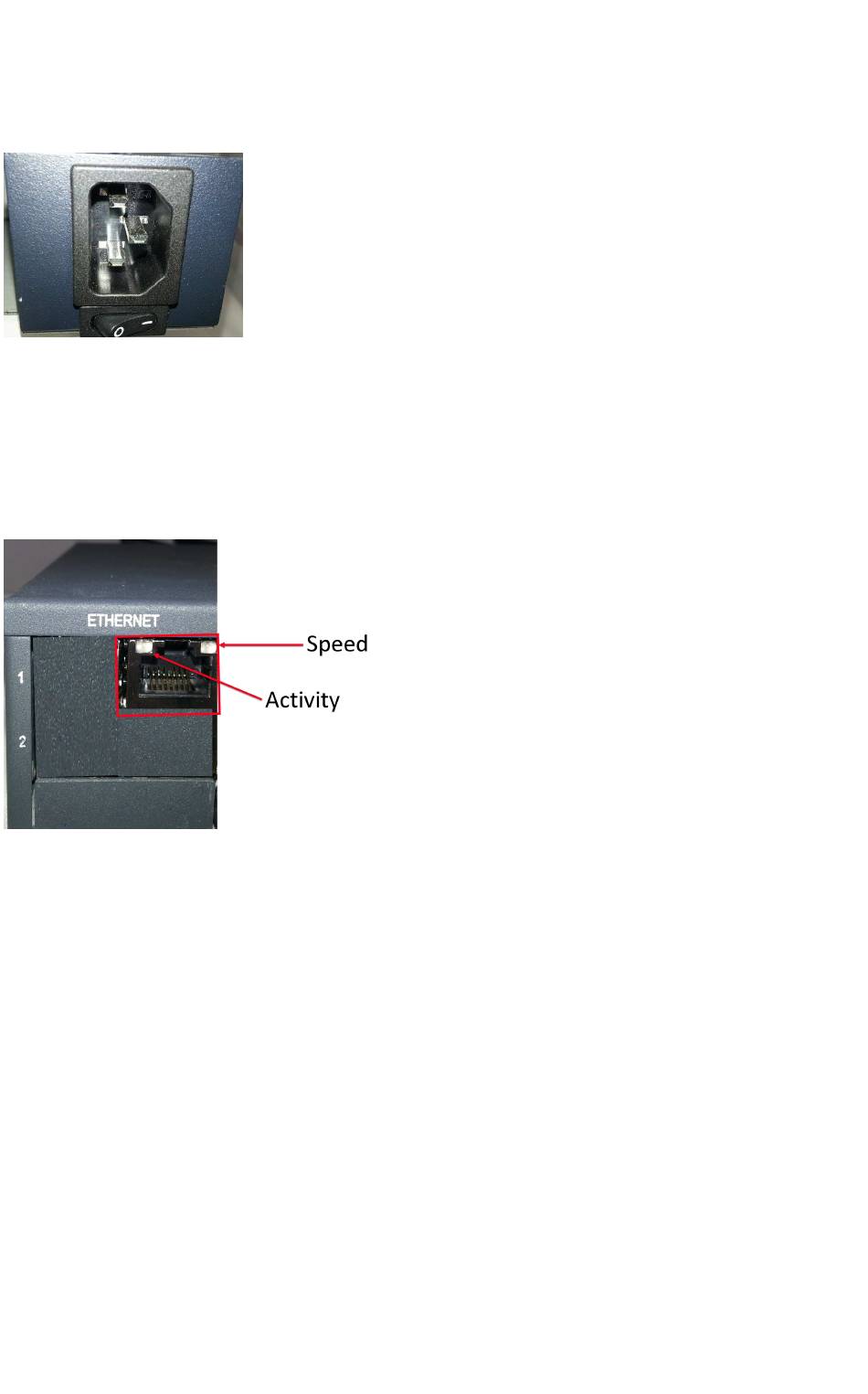

Speed Indicator (on Ethernet Connector)
• Green—1000 Mbps (flashes with activity)
• Orange—100 Mbps (flashes with activity)
• Off—No LAN connection
Activity Indicator
• Off—No serial activity
• On—Tx/Rx flashes with transmit/receive serial activity

Connecting the Serial Device(s)

By default, the IOLAN allows you to connect "DTE" type devices (i.e.
workstations, servers, routers, etc...). If you are connecting a DCE
type of device (i.e. modem), you should configure the serial port as
"rolled". See the IOLAN Secure User's Guide for more information.
IOLAN SCG Quick Start Guide
3
