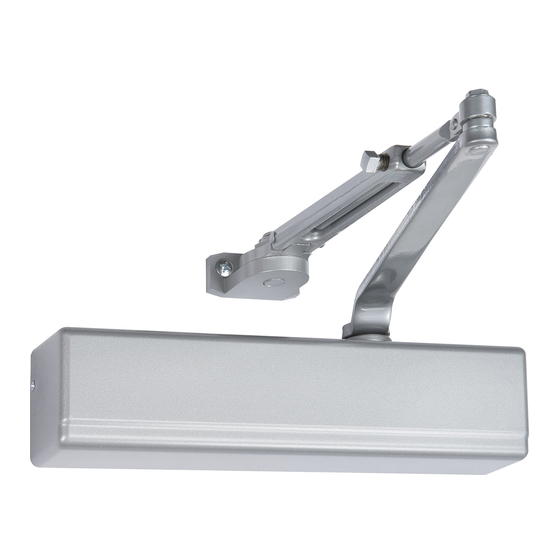

Assa Abloy Sargent 1331 Manual

1331
Non Handed Door Closer
Regular Arm
Top Jamb Mount
Parallel Arm
WARNING
This product can expose you to lead which is known to the state of
California to cause cancer and birth defects or other reproductive harm.
For more information go to www.P65warnings.ca.gov.
Regular Arm
Right Hand Door - RH
Left Hand Reverse - LHR
Left Hand Door - LH
Right Hand Reverse - RHR
*Included Components
Legacy Friction Hold Open Arm
Note: Legacy FHO
arm has installation
TO DETERMINE orientation.
See 80-9300-0005-000
HAND OF
for details.
YOUR DOOR:
To Determine Your Hand of Door:
Right Hand
Reverse
LEFT RIGHT
HAND
HAND
DOOR
DOOR
1-800-438-1951 • www.sargentlock.com
Copyright © 2013, 2019, Sargent Manufacturing Company, an ASSA ABLOY Group company.
All rights reserved. Reproduction in whole or in part without the express written permission of
Sargent Manufacturing Company is prohibited.
Hold Open Arm Models
Right Hand Door - RH
Left Hand Reverse - LHR
To Identify Your Model:
Left Hand
Reverse
Approved 2019-05-31
Adjustable (Sizes 1-6)
JH
JHZ
JPH9
JUH
Ce produit peut vous exposer au plomb qui, dans l'état de la Californie,
est reconnu pour causer le cancer, des anomalies congénitales ou d'autres
problèmes de reproduction. Pour plus d'informations, visitez:
www.P65warnings.ca.gov.
Top Jamb Mount
Left Hand Door - LH
Right Hand Reverse - RHR
Optional Plates
Tools Needed
Parallel Arm
Right Hand Door - RH
Left Hand Reverse - LHR
Left Hand Door - LH
Right Hand Reverse - RHR
Optional Cover
A8175B
