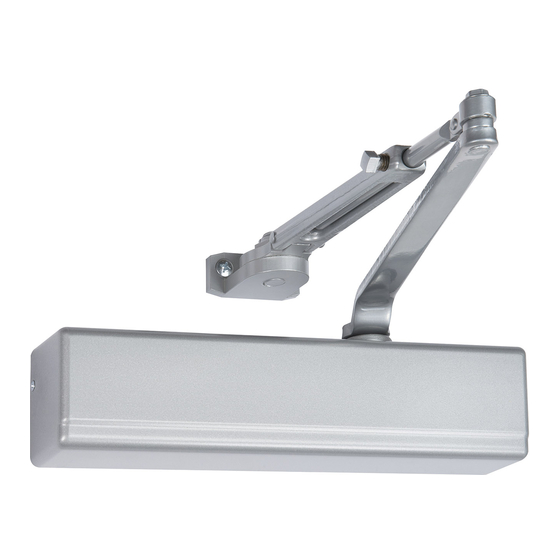

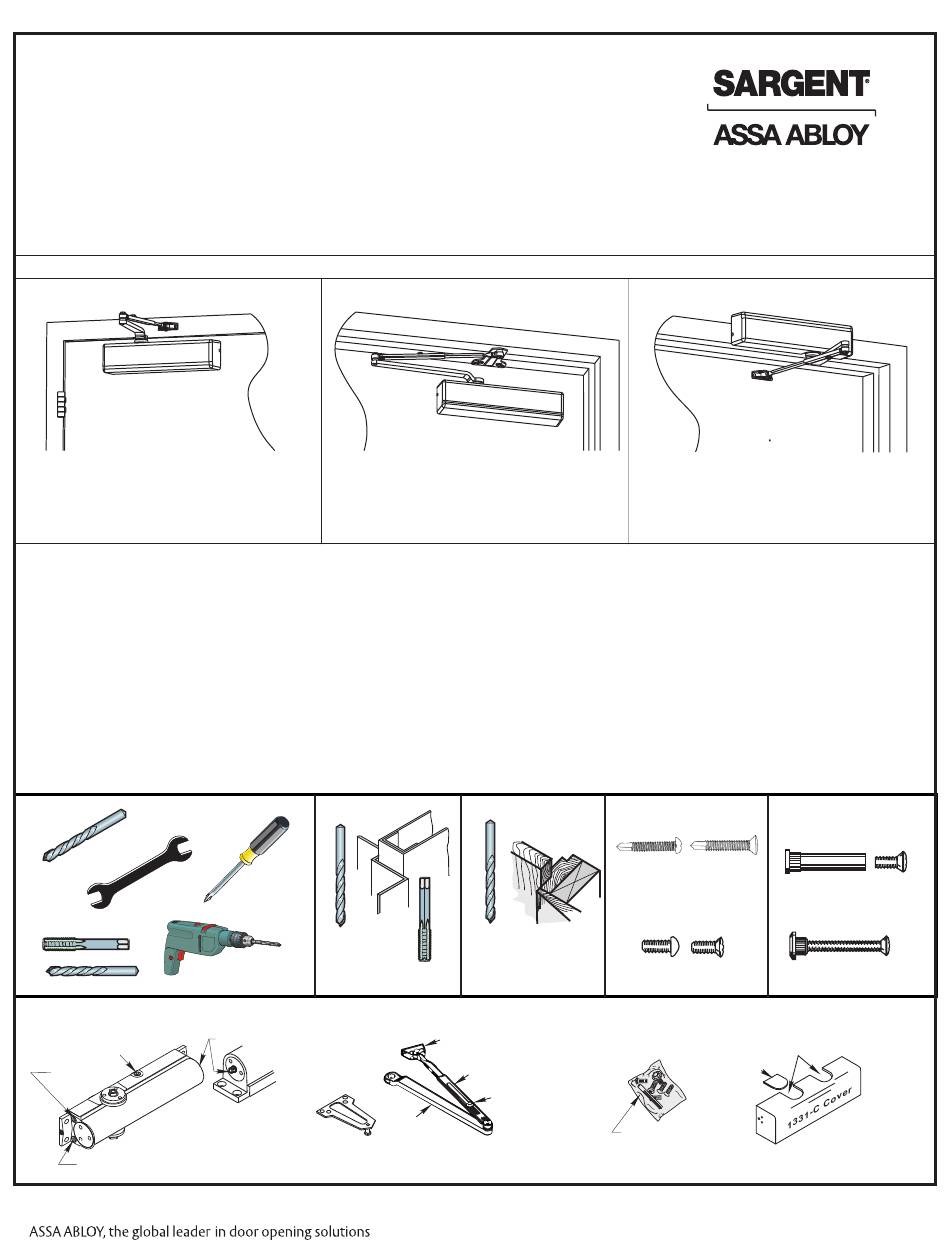

SARGENT 1331 DOOR CLOSER INSTALLATION
INSTRUCTIONS WITH FOLLOWING ARM SETS:
JO, JOZ and JP9
Strength Adjustment From Size 1 Through 6.
CAUTION: FAILURE TO INSTALL OR ADJUST PROPERLY MAY
RESULT IN INJURY OR DAMAGE
FOR ASSISTANCE, CALL SARGENT AT 1-800-727-5477 or
www.Sargentlock.com
JO Arm (Regular Arm)
Right hand (RH) door shown.
Left hand reverse (LHR)
See page 2
·
Doors should be hung on ball bearing or anti-friction hinges.
·
A separate door stop is recommended.
·
Door and frame must be properly reinforced.
·
Always adjust spring power before adjusting control.
·
Adjust closing time speed between 3 and 7 seconds from 90° to 0°. Greater closing times may be required
ADA.
·
These door closers should NOT be installed on the exposed side (weather side) of exterior doors
·
NOTE: For special applications a separate door and frame preparation template is packed with these
instructions. Use this instruction sheet for installation sequence and closer adjustments only.
Backcheck Valve
Latch Valve
Closer Body
Sweep Valve
63-8174-6000-999

Choose From 1 of 3 Applications

JP9 Arm (Regular Arm)
Right hand (RH) door shown.
Left hand reverse (LHR)
See page 3
Metal
#7
1/4-20
Power Adjustment Shaft
Main Arm
NOTE: These installation instructions to be used for
product manufactured on or after Nov. 1, 2013. Date
Code: KU and shipped with arms shown on
template pages. See page 6 for date code location.
Wood
3/16"
* Pilot Hole
Required
Regular Arm/Top
Jamb Shoe
Connecting Rod
Forearm
Screw
Closer Arm
Copyright © 2013 Sargent Manufacturing Company, an ASSA ABLOY Group company.
All rights reserved. Reproduction in whole or in part without the express written
JO Arm (Top Jamb Arm)
Right hand (RH) door shown.
Left hand reverse (LHR)
See page 5
Self Drilling Screws
Wood and Metal
Sleeve Nut and Bolt
For Wood drill 3/16 hole
for Wood drill 7/32
Drill 9/32 thru from Closer Side
Thru Bolt and Grommet Nut
Machine Screws
#7 Drill, 1/4-20 Tap Drill 9/32 thru from Closer Side
Insert Cutouts
Cover
Insert
Screw Pack
permission of Sargent Manufacturing is prohibited.
(Optional)
3/8 Drill other side
3/8 Drill other Side
Full Cover
Standard With 1331 Series
A8174A
