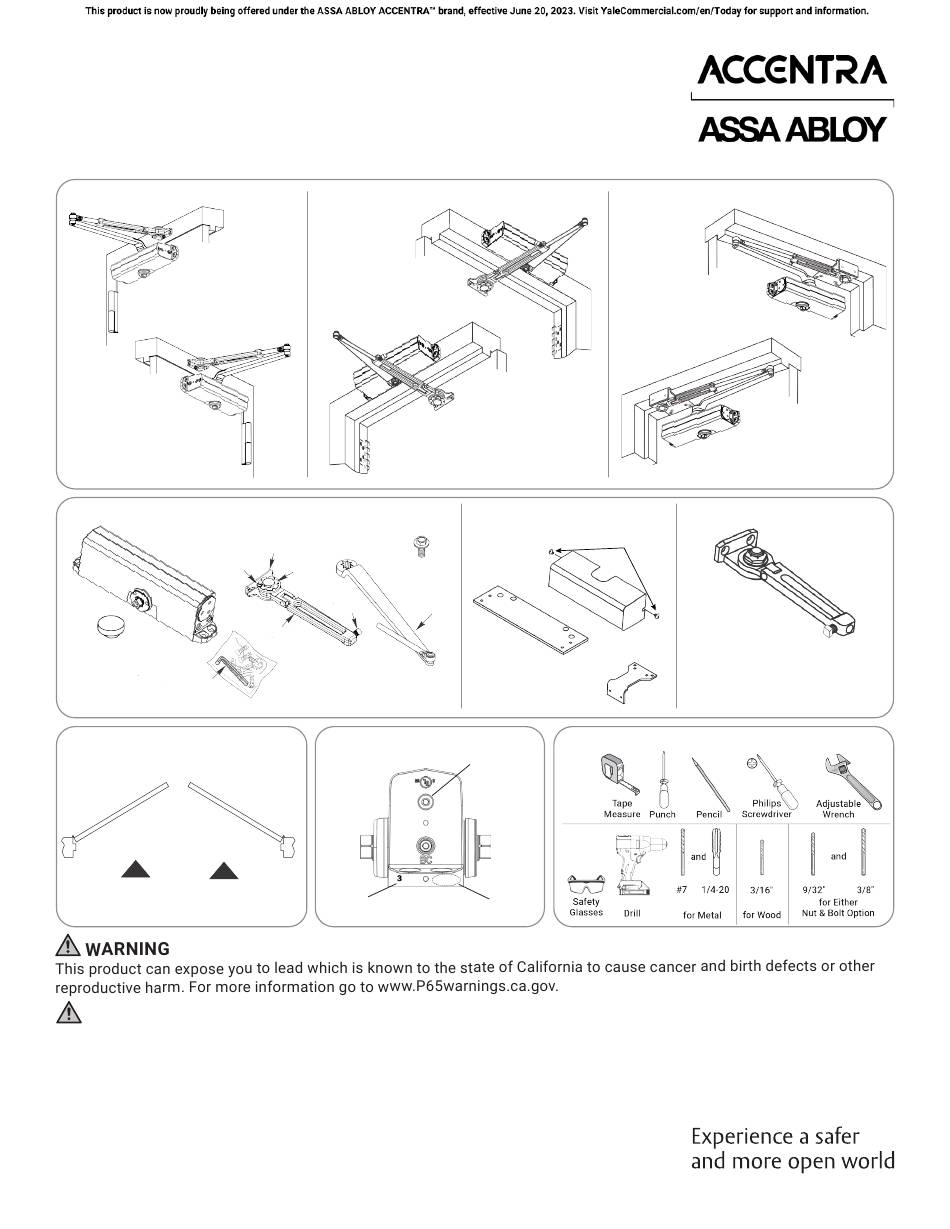

Assa Abloy 150 Series Installation Instructions Manual

150 Series Door Closer
Model 151
Regular, Top Jamb, and Parallel Arms, Hold Open
Installation Instructions
Regular Arm
Right Hand Door - RH
Left Hand Reverse - LHR
Left Hand Door - LH
Right Hand Reverse - RHR
Included Components
Closer
Dial Screw
Pinion Cap
1/8" Hex Wrench
Screw Pack
(Refer to page 2 for a list of contents)
To Determine Hand of Door:
Right Hand
Reverse
LEFT RIGHT
HAND HAND
DOOR DOOR
WARNING
Attention Installer: Any retrofit or other field modification to a fire rated opening can potentially impact the fire rating of the
opening, and ASSA ABLOY makes no representations or warranties concerning what such impact may be in any specific
situation. When retrofitting any portion of an existing fire-rated opening, or specifying and installing a new fire-rated open-
ing, please consult with a code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with
all applicable codes and ratings.
855-557-5078 x 2 • www.accentra-assaabloy.com
Copyright © 2019, 2023, 2024, ASSA ABLOY ACCENTRA™ Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole
or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.
80-9350-3504-010 Rev 3 05/24
Top Jamb Mount
Right Hand Door - RH
Left Hand Reverse - LHR
Shoe
Main Arm
Dial
Pinion Screw
Set
Main Arm
Screw
Hold Open Arm
Arm Assembly
To Identify Model:
Left Hand
Reverse
Size
1 - 6 = 151
Code
Right Hand Door - RH
Left Hand Reverse - LHR
Left Hand Door - LH
Right Hand Reverse - RHR
Optional Components
6-32 x 5/16" Pan Head
Self Tapping Screw
50COV
Cover
214
Plate
Soffit Adapter Plate
588 Soffit Plate
Used with Parallel Arm
Closers Only
Tools Needed:
Spring Power
Adjustment
Date
Code
Parallel Arm
Left Hand Door - LH
Right Hand Reverse - RHR
Legacy Friction Hold Open Arm
NOTE: Legacy FHO arm has
installation orientation.
Refer to document number
80-9300-0003-000 for details.
