A x e l H a r d w a r e M a n u a l
4.2
Connectors

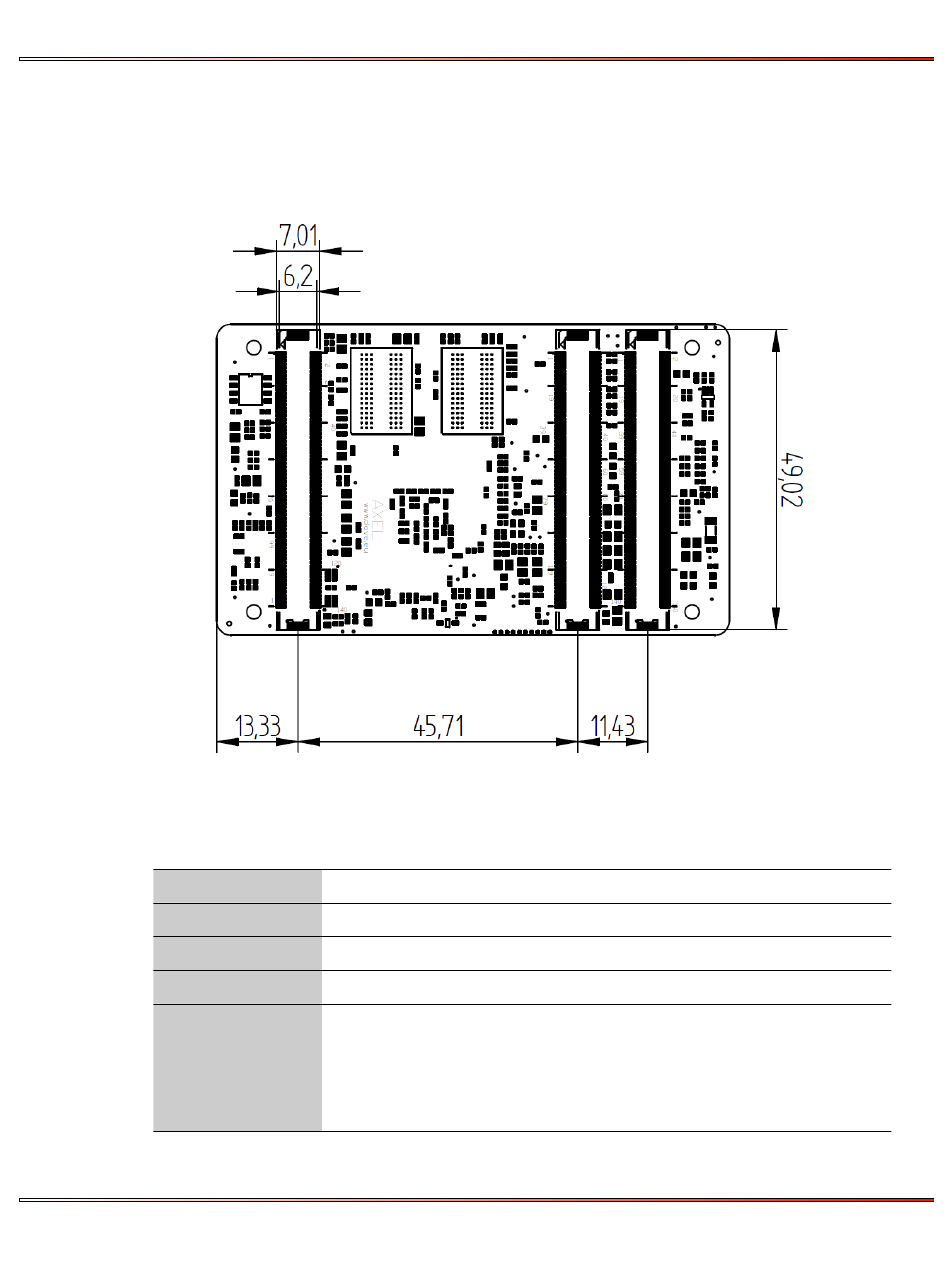

The following figure shows the AXEL connectors layout:
The following table reports connectors specifications:
Part number
Height
Length
Depth
Mating
connectors
23/80
Fig. 5: Connectors layout
Hirose FX8C-140S-SV
5.1 mm
48.6 mm
4.0 mm
Hirose FX8C-140P-SV (5 mm board-to-board height)
Hirose FX8C-140P-SV1 (6 mm board-to-board height)
Hirose FX8C-140P-SV2 (7 mm board-to-board height)
Hirose FX8C-140P-SV4 (9 mm board-to-board height)
Hirose FX8C-140P-SV6 (11 mm board-to-board height)
October, 2016
v . 1 . 0 . 5
