● Board width: 83.8 mm
● Maximum components height is 2 mm (top) and 4 mm (bottom)
● PCB thickness is 1.9 mm

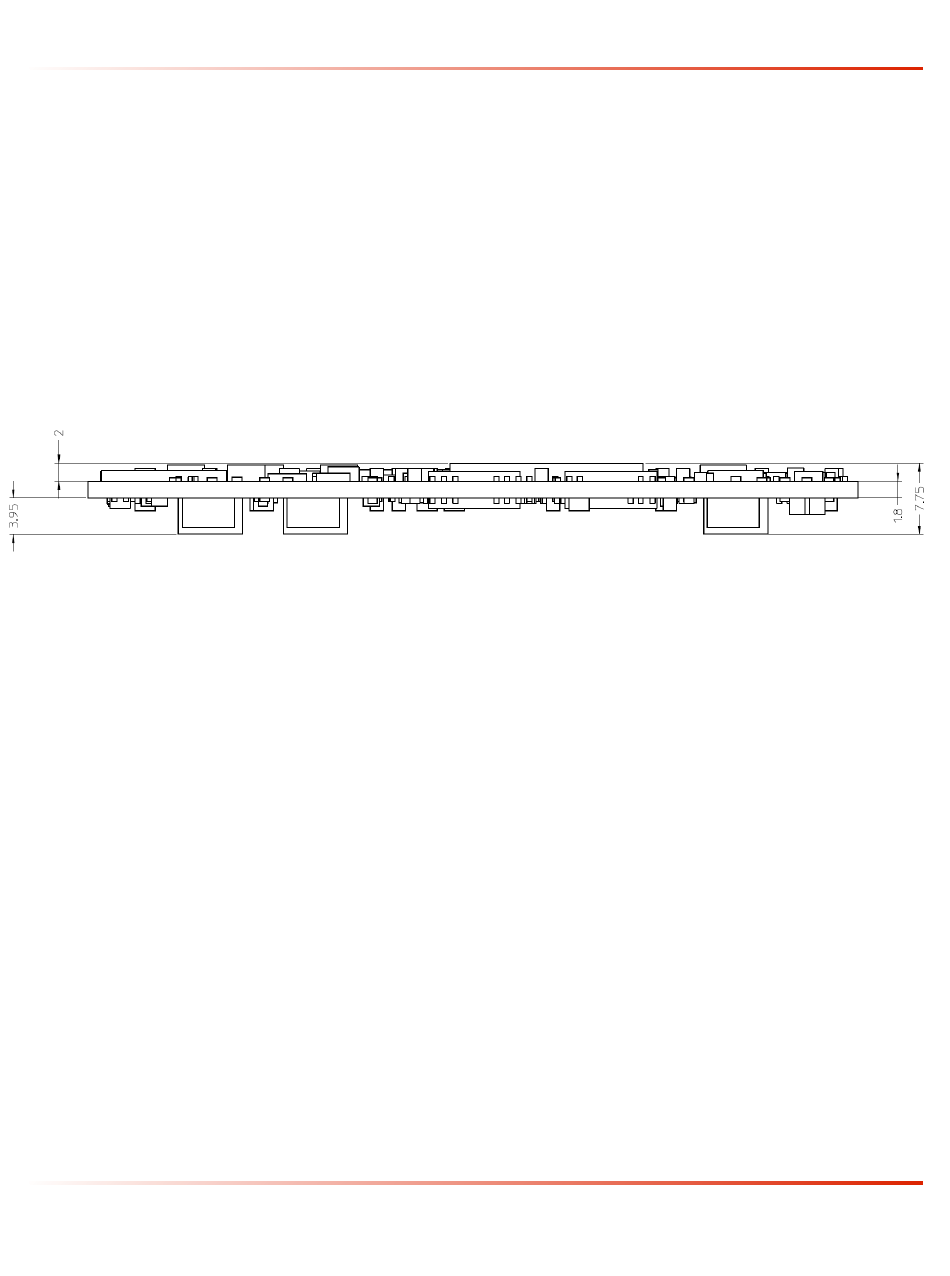

The following figure highlights the maximum components' heights on
AXEL module:
22/80
Fig. 4: Board layout - Side view
