A x e l H a r d w a r e M a n u a l
2.1

Product Highlights

● Unmatched performances thanks to Solo / Dual / Quad Core @ 1.2
GHz
● All memories you need on-board
● Boot from NOR for safe applications
● Enabling massive computing applications thanks to wide range DDR3
RAM memory up to 4GB
● Wide range PSU input from 2.8V to 4.5V
● High mechanical retention - 100G shock - thanks to 3x140pins and 4
screw holes
● Reduced carrier complexity: dual CAN, USB, Ethernet GB, PCIe,
SATA and native 3.3V I/O
● Suitable for Asymmetric Multicore Processing
● A timing application thanks to on-board 5ppm RTC
13/80

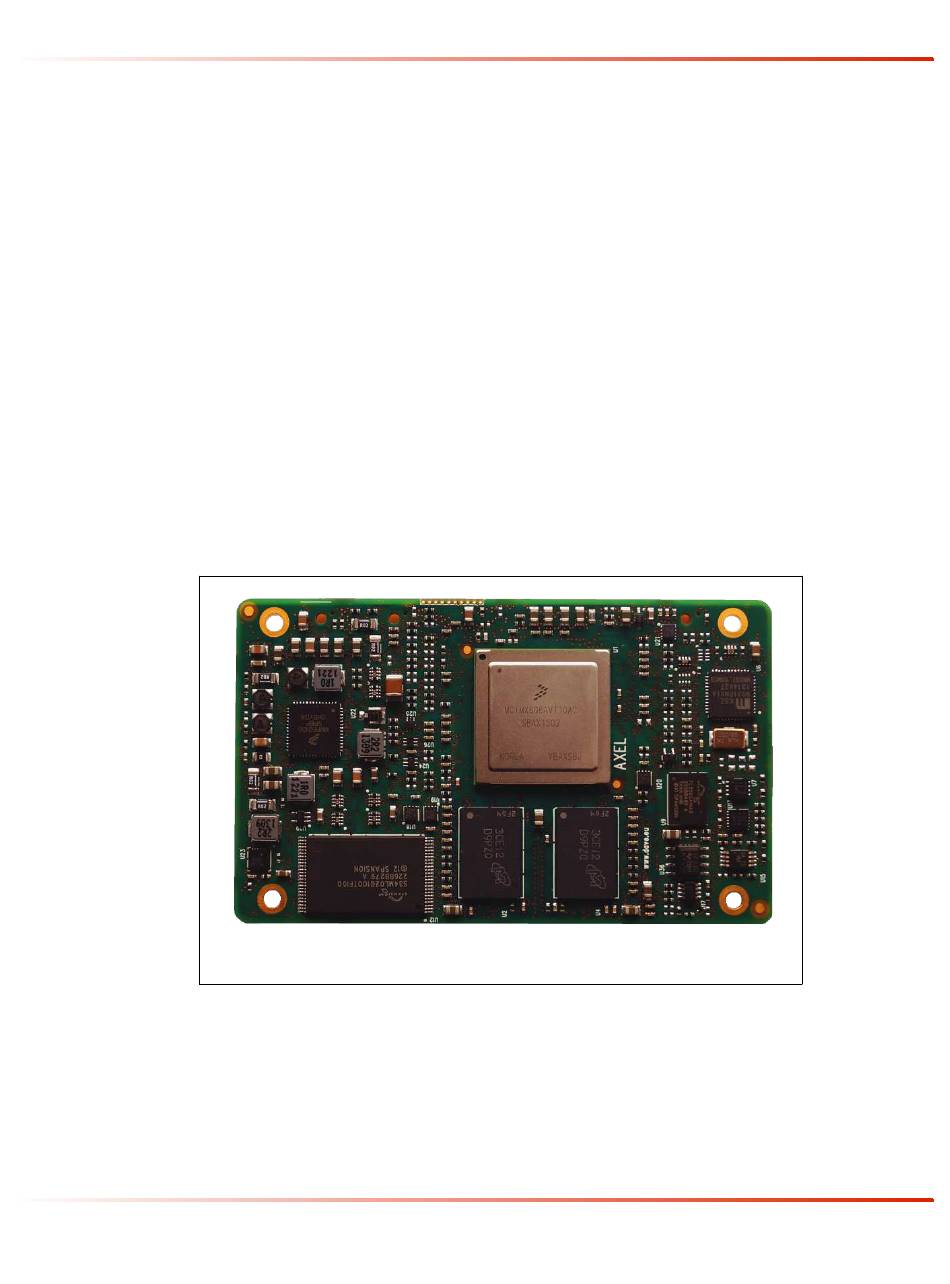

Fig. 2: AXEL SOM (top view)
October, 2016
v . 1 . 0 . 5
