Jack Console Table
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.
A
B
C
bolt
dowel
screw
x12
x6
x6
H
I
slide
slide
cam bolt
rail x2
rail x2
x16
O
P
small bolt
small locking
x8
nutx8
WARNING:
Any furniture that is not anchored to a wall has the potential to tip over in certain
circumstances, i.e. if a child attempts to climb up on the furniture or in the event of an earthquake.
Accordingly, we recommend that all furniture is anchored to a wall. We supply a free safety wall anchor
with all furniture sold and we recommend these are used to prevent your product tipping. The fixing device
provided should fit most wall types, but please note that different wall materials may require different fixing
devices from those supplied.
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558
D
E
screw
locking
nut x6
x24
J
K
L
screw
wedge
x8
x8
Q
R
long
screw
screw x12
x8

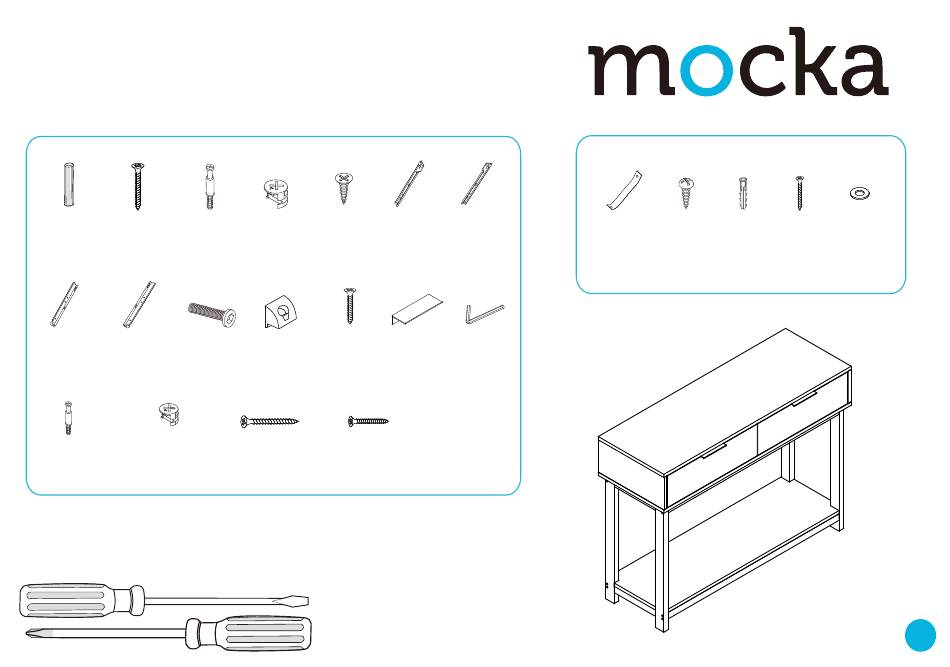

Hardware Supplied
Phillips & Flathead screwdrivers required.
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
F
G
slide
slide
rail x2
rail x2
M
N
Allen key
handle
x
2
x1
V
W
X
safety
screw
wall
x1
strap x1
anchor
x1
Wall Strap
Y
Z
wall
washer
x2
screw
x1
1
Advertisement
Related Manuals for Mocka Jack
Summary of Contents for Mocka Jack
- Page 1 Phillips & Flathead screwdrivers required. For quicker assembly, we recommend the use of a power drill on a low-speed setting. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 2 Attach 1x slide rail (F) to panel [3] and secure with 3x screws (E). Insert 6x bolts (C) into panel [1]. Tighten with a screwdriver. Attach 1x slide rail (G) to panel [4] and secure with 3x screws (E). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 3 Flip the panel [5], attach 1x slide rail (G) to panel [5] as shown secure with 6x locking nuts (D). Tighten with a screwdriver. with 3x screws (E). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 4 Slide panels [6] down along the grooves between the panels [3] and [4]. Attach panel [2] to the rest of the unit using 6x dowels (A) and secure with 6x screws (B) as shown. Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 5 Attach panels [7] to the panels [8] with 16x cam bolts (J) and tighten Attach leg panels to the bottom panel [2] with 6x long screws (Q), and tighten with a Allen key (N). with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 6 Attach panel [9] to the panels [8] with 6x long screws (Q), and tighten Insert 4x small bolt (O) into panels [10] and [11]. with a screwdriver. Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 7 Attach panels [12] and [13] to front panels [10] and [11] using Slide panel [14] along the grooves between the side panels [12] 4x small locking nuts (P). Tighten with a screwdriver. and [13] to form the base of the drawer. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 8 (I) and slide rails (H) to the underside of panels Tighten with a screwdriver. [12] and [13] as shown. Secure with 4x screws (E) and tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 9 Attach handle (M) to panels [10] and [11] with 2x screws (E).Tighten Insert the completed drawers into the main unit as shown, ensuring they with a screwdriver. slide easily along the rails. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 10 Fasten to the wall using 1x washer (Z), 1x wall anchor (X) and and 1x screw (W). Tighten with a screwdriver. 1x screw (Y). Ensure unit is balanced and steady before use. You’re done, enjoy! mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
