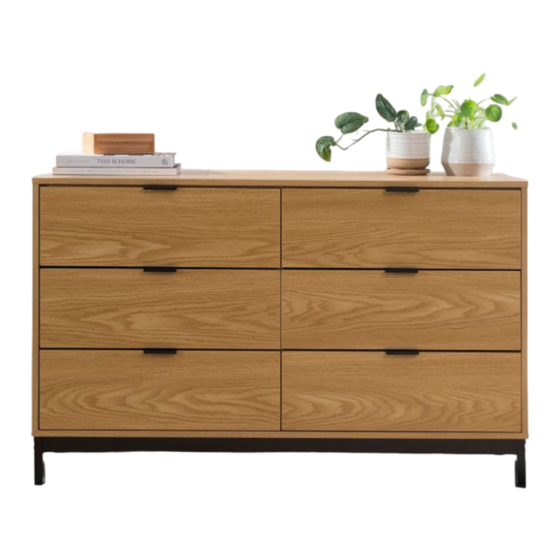

Jack Six Drawer
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.
A
B
C
bolt
dowel
screw
x22
x18
x8
H
I
slide
slide
cam bolt
rail x6
rail x6
x8
O
P
small bolt
small locking
x30
nutx30
WARNING:
Any furniture that is not anchored to a wall has the potential to tip over in certain
circumstances, i.e. if a child attempts to climb up on the furniture or in the event of an earthquake.
Accordingly, we recommend that all furniture is anchored to a wall. We supply a free safety wall anchor
with all furniture sold and we recommend these are used to prevent your product tipping. The fixing device
provided should fit most wall types, but please note that different wall materials may require different fixing
devices from those supplied.
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558
D
E
screw
locking
nut x18
x72
J
K
L
screw
wedge
x8
x8
Q
R
long
screw
screw x10
x36

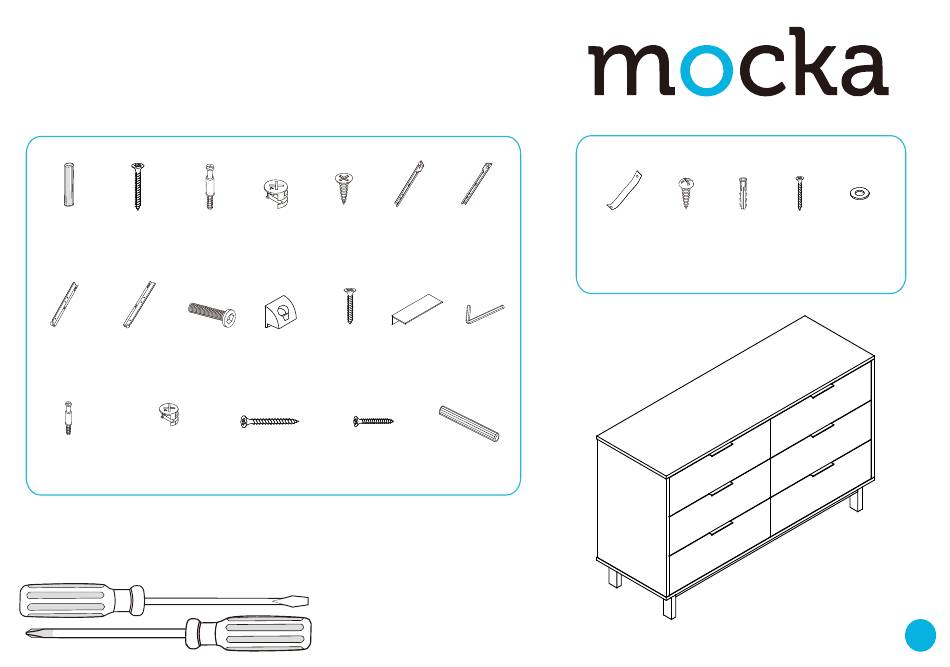

Hardware Supplied
Phillips & Flathead screwdrivers required.
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
F
G
slide
slide
rail x6
rail x6
M
N
Allen key
handle
x
6
x1
S
long dowel
x2
V
W
X
safety
screw
wall
x2
strap x2
anchor
x2
Wall Strap
Y
Z
wall
washer
x4
screw
x2
1
Advertisement
Related Manuals for Mocka Jack Six Drawer
Summary of Contents for Mocka Jack Six Drawer
- Page 1 Phillips & Flathead screwdrivers required. For quicker assembly, we recommend the use of a power drill on a low-speed setting. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 2 Insert 6x bolts (C) into panel [1]. Tighten with a screwdriver. Attach 3x slide rails (G) to panel [4] and secure with 9x screws (E). Insert 8x bolts (C) to the panels [3] and [4]. Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 3 4x locking nuts (D). Tighten with a screwdriver. with 9x screws (E). Tighten with a screwdriver. Insert 4x bolts (C) to the panel [5]. Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 4 2x locking nuts (D). Tighten with a screwdriver. and secure with 6x locking nuts (D). Tighten with a screwdriver. Attach panel [16] to panel [5] as shown using 2x screws (B). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 5 Slide panel [7] down along the grooves between the panels [3] and [4]. Attach panel [1] to panels [3] and [4] with 6x dowels (A) and secure with 6x locking nuts (D). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 6 Attach panel [2] to the rest of the unit using 6x dowels (A) and secure the panels [3] and [4] to form the back of the unit as shown. with 6x screws (B) as shown. Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 7 Attach panels [8] to the panels [9] with 8x cam bolts (J) and tighten Attach leg panels to the bottom panel [2] with 10x screws (Q), and tighten with a Allen key (N). with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 8 Insert 5x small bolt (O) into panels [10] and [11]. Attach panels [12], [13] and [17] to panel [10]/[11] with 1x dowel (A) and Tighten with a screwdriver. using 5x small locking nuts (P). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 9 Slide panel [14] along the grooves between the side panels [12] Attach panels [12], [13], [15] and [17] as shown using 6x screws (R). and [13] to form the base of the drawer. Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 10 Attach handle (M) to panels [10] and [11] with 2x screws (E).Tighten [12] and [13] as shown. Secure with 4x screws (E) and tighten with with a screwdriver. a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 11 8x screws (L). Tighten with a screwdriver. Attach 2x safety straps (V) to the top of the back side of the unit as shown using 2x washers (Z) and 2x screws (W). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 12 (V). Fasten to the wall using 2x washers (Z), 2x wall anchors (X) and 2x screws (Y). Ensure unit is balanced and steady before use. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
